Waveform Display

Elements of the Waveform
Display
WFM8200 and WFM8300 Waveform Monitors

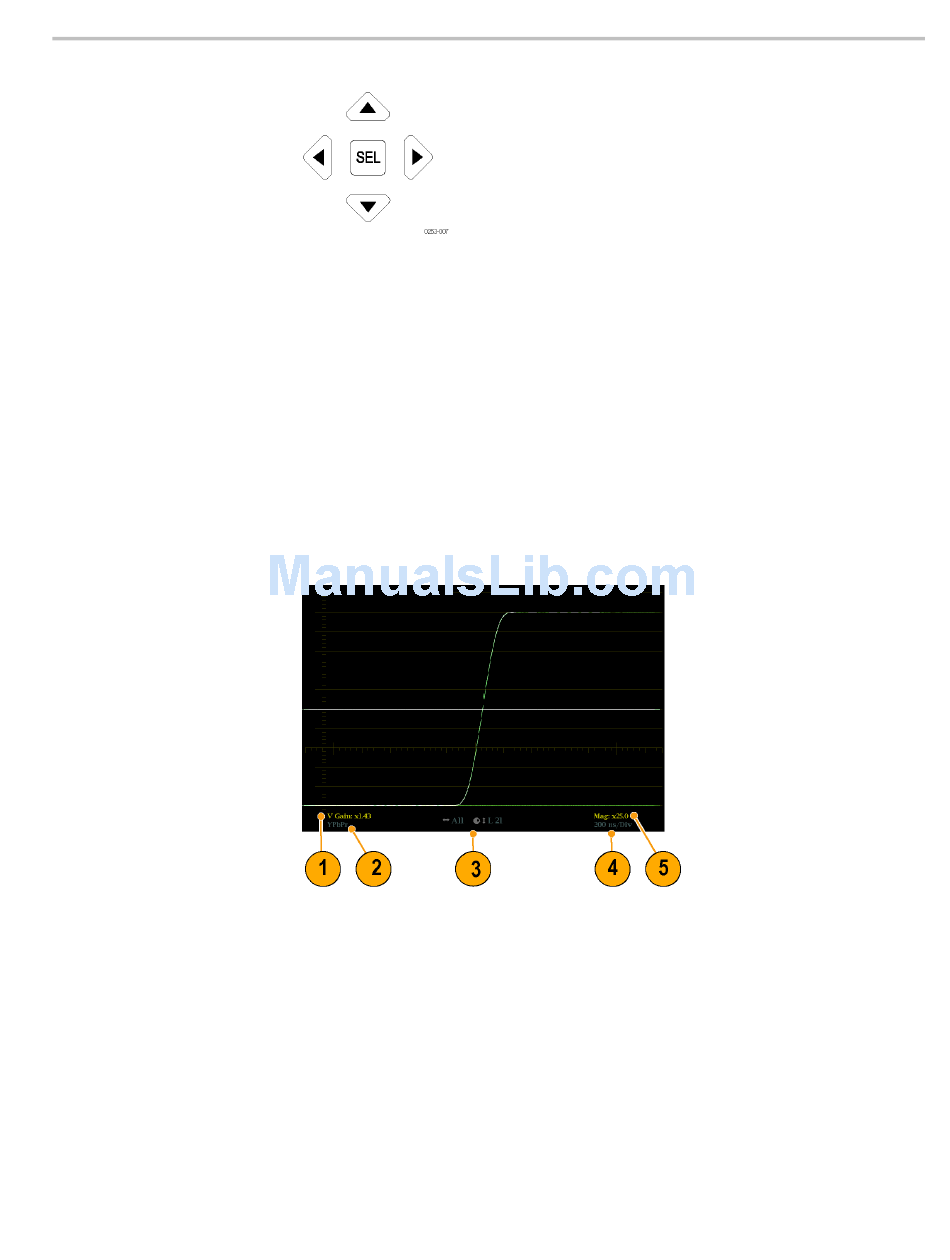

Figure 19: Navigate menus using the arrow keys and select button
5. Navigate through the menu and make your selections.
The WFM button displays the Waveform display, which is the voltage versus time
display of a signal. You can view the input signal in line or field sweep and choose
which SDI signal elements are displayed (RGB, YRGB, or YPbPr). Filters can
also be applied to the signal. This instrument will allow you to display the signal
from an SDI input as if it were a composite signal and control (from the CONFIG
menu) whether EAV, SAV, and ANC data is included in the display.
1. This readout is blank when vertical gain is X1; otherwise, this indicates that V
Gain is X5 or variable.
2. This readout lists the currently displayed waveform color-space. Dashes (–)
indicate components not displayed.
3. This readout lists the currently selected field and line (when in Line Select
mode).
4. This readout lists the current sweep rate for tile.
5. This readout lists the Mag rate if MAG is on.
Display Information
35
