Display Information

LTC Display

Elements of the LTC
Display
LTC Display Pop-Up Menu
50
The Longitudinal Time Code (LTC) Display is accessed from the OTHER button.
LTC is monitored in a frame rate display to allow observation of amplitude,
synchronization and phase with respect to reference vertical interval time code
(VITC). (See Figure 27.)
The input of LTC is through the REMOTE connector on the rear panel of the
instrument. The REMOTE connector is a 15-pin D-type connector with socket
contacts. For pin information, see the Safety and Installation manual or the System
Integration manual on the Product Documentation CD that shipped with your
instrument and the Web at www.tektronix.com/manuals.

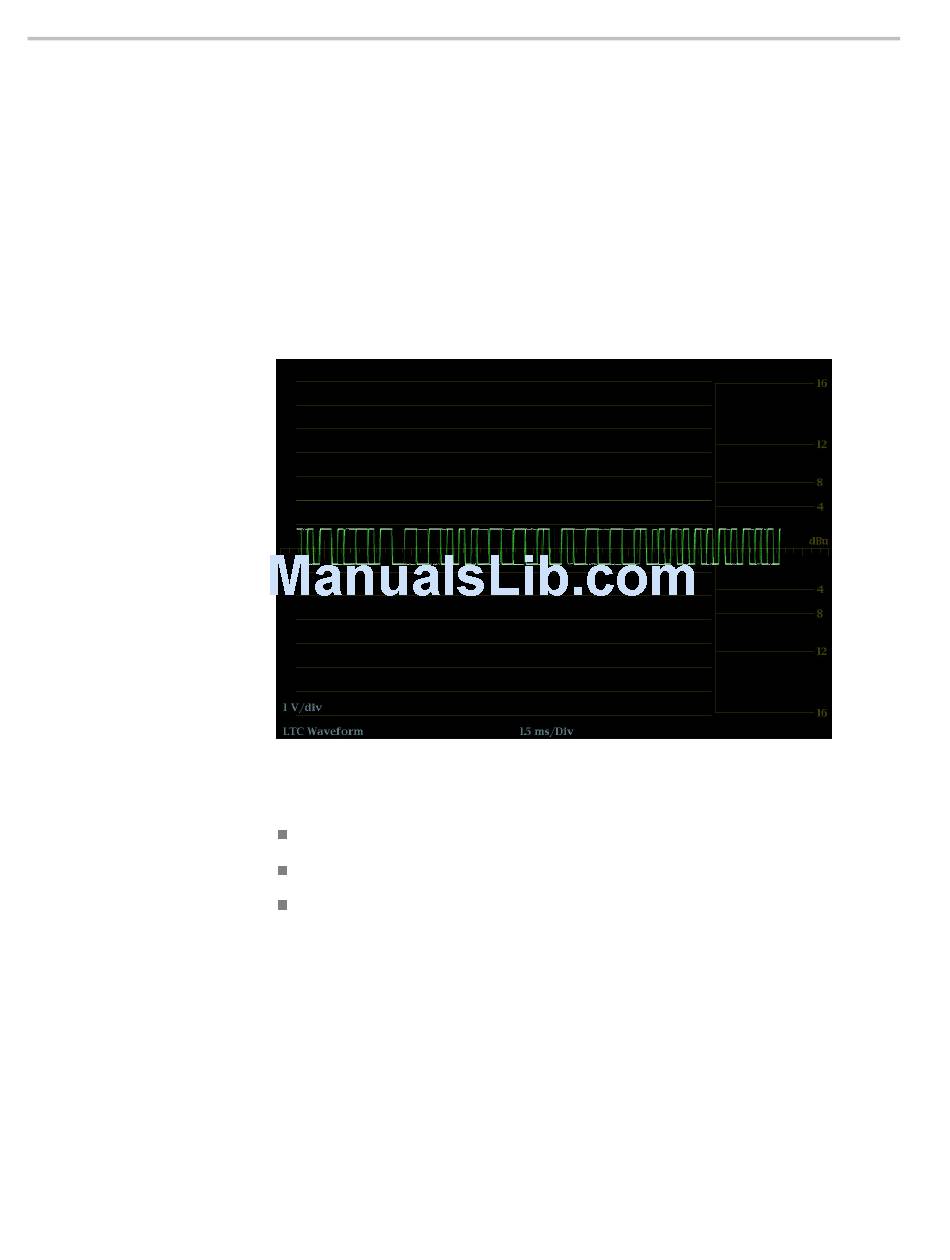

Figure 27: LTC display
Display: Shows the display type as LTC.
Y-axis units: Shows the y-axis units in volts/divisions.
X-axis units: Shows the x-axis in milliseconds/divisions.
The OTHER pop-up menu allows you to set parameters for the LTC display.
Select Center Waveform and press the SEL button to center the waveform.
WFM8200 and WFM8300 Waveform Monitors
