To Display Dolby Inputs
Dolby Display Readout
WFM8200 and WFM8300 Waveform Monitors
After you have configured a Dolby input, you can display its levels and other
characteristics in the Audio Display. (See page 149, To Configure Dolby Inputs.)
1. Select a tile.
2. Press and hold the Audio button to display the Audio menu.
3. Select Audio Input and select one of Dolby 1 through Dolby 4.
The audio display for monitoring Dolby displays the following. (See Figure 73.)

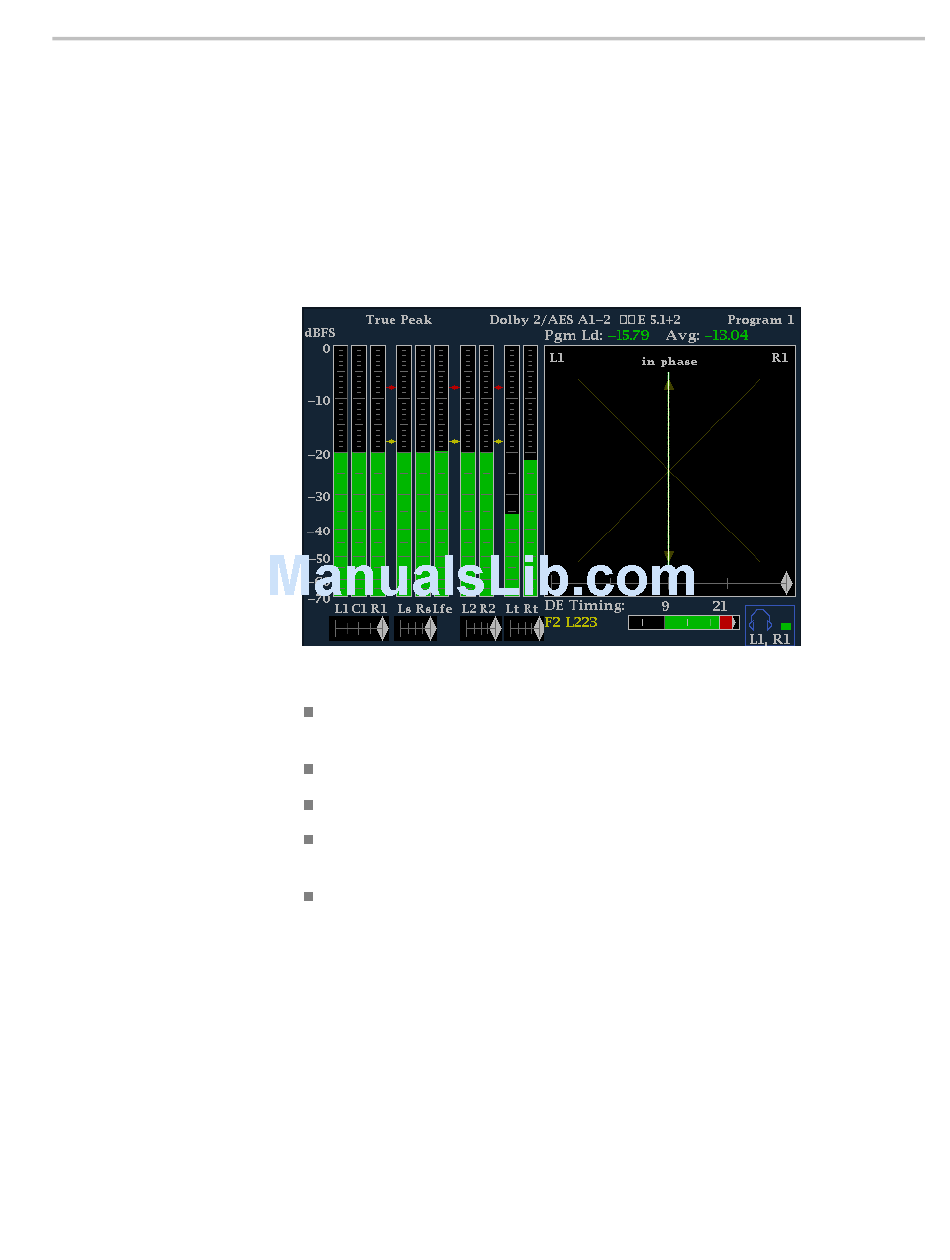

Figure 73: Audio display for Dolby

Level bars for Dolby channels. The selected Listening Mode determines the
channels/bars shown.
Levels bars for the selected Dolby Downmix mode.
Dolby setup information. (See page 153, Dolby Display Readout.)
Dolby Listening environment display. (See page 146, Elements of the
Surround Sound Display.)
Dolby Guardband thermometer to monitor if guardband thresholds are being
exceeded.
The Dolby Display readout shows the following. (See Figure 74.)
1. The selected Dolby input.
2. The selected Dolby Source for the input.
3. The Coding (Channel) Mode.
4. The Listening Mode setting.
Audio Monitoring
153
