Jitter Display

WFM8200 and WFM8300 Waveform Monitors
The Jitter Display is accessible from the EYE button when you have Option
PHY installed. It can be used after you have configured the instrument for Eye
measurements. This display shows you the wave shape of the jitter and allows
you to view additional time-domain information, such as whether there are jitter
components that are synchronous or nearly synchronous to the video line or
frame. You can also set alarms on various parameters. (See page 109, To Make
Jitter Measurements.)

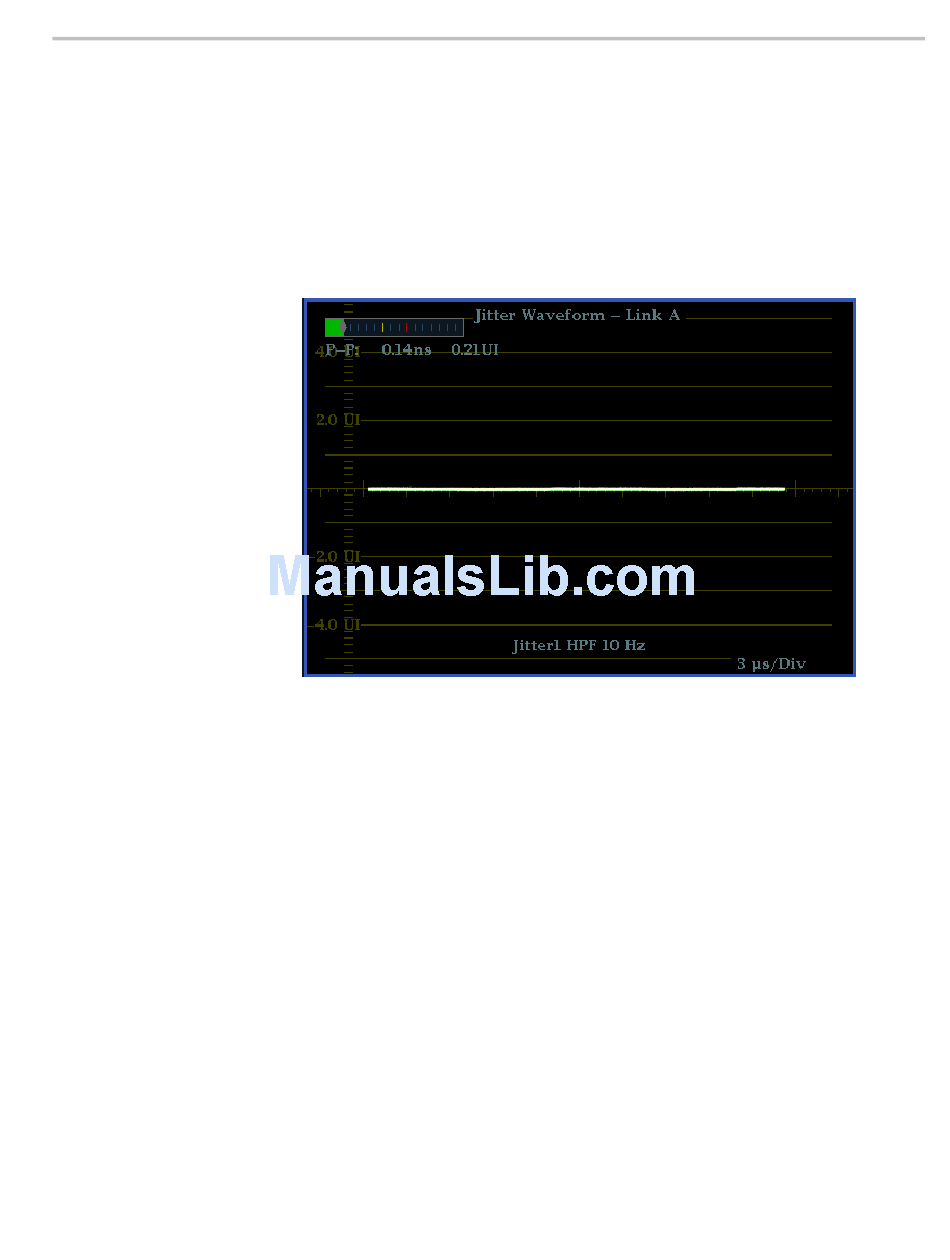

Figure 32: The Jitter display parameters as shown in a single tile when the
instrument is in 4-tile mode
Display Information
57
