Signal Inputs
32
For more information about these signals, see the appropriate SMPTE standard.

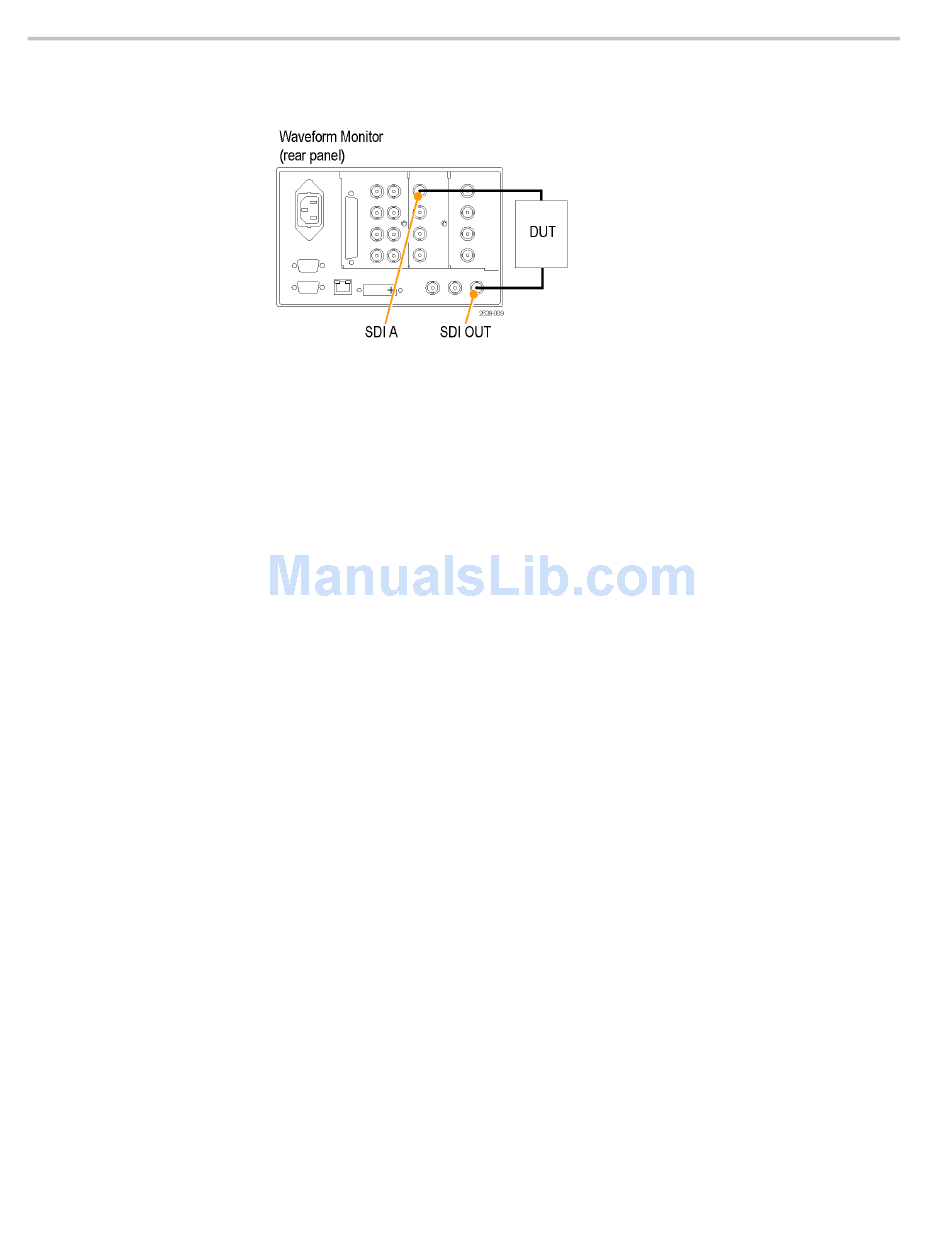

Figure 17: Signal generation connection
After you have connected the signals, press the CONFIG button on the front panel
of the instrument and navigate to the Outputs submenu. From this submenu,
select the test signal pattern, level, and format you want to generate.
WFM8200 and WFM8300 Waveform Monitors
