Figure 46: 16-Channel Audio Bars Display - Tektronix WFM8200 User Manual

Display Information
3. Use the arrow keys and SEL button to make selections in the steps that follow.
4. Select Audio Input and then select the Emb. 16-Ch option.

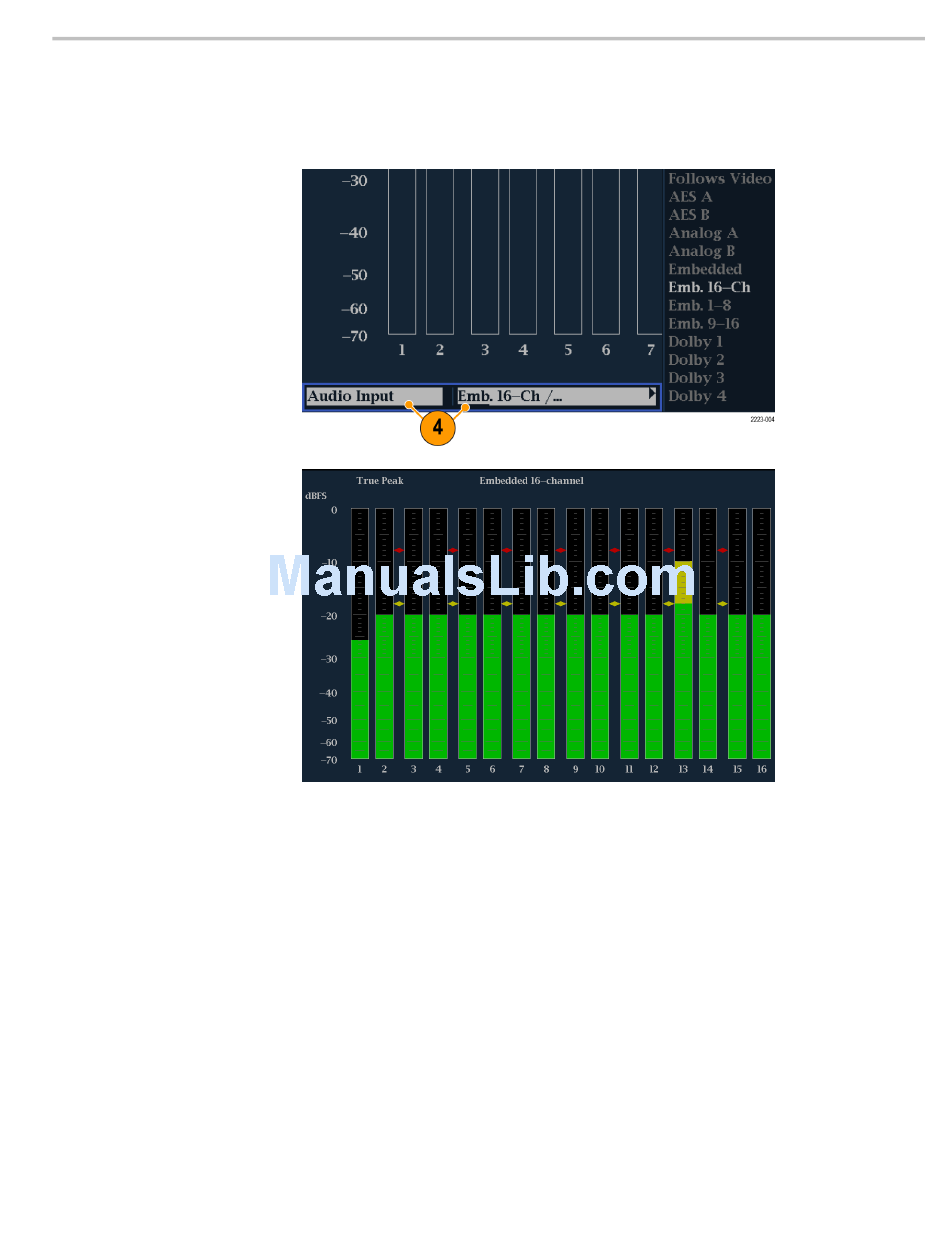

Figure 46: 16-Channel audio bars display

Quick Selection of 1-8 1. Select a tile.
or 9-16 Channels of
2. Press and hold the Audio button to open the Audio display in a tile and pop
Embedded Audio
up the Audio menu.
3. Use the arrow keys and SEL button to make selections in the steps that follow.
4. Select Audio Input and then select Emb. 1-8 or Emb. 9-16.
