To Customize Input Labels

Simultaneous Input Monitoring

WFM8200 and WFM8300 Waveform Monitors
You may select up to eight channels of video from 2xHD video sources, but only
the first four are displayed in Multi-Input mode. 2xHD video formats may be used
for 3D video content in which the left eye view is typically carried in channel 1
and the right eye in channel 2. The 2xHD formats are defined by SMPTE 425
as an option for 3 Gb/s Level B SDI video. 2xHD formats are available in 720p,
1080i, and 1080p (23.98 - 30 fps).

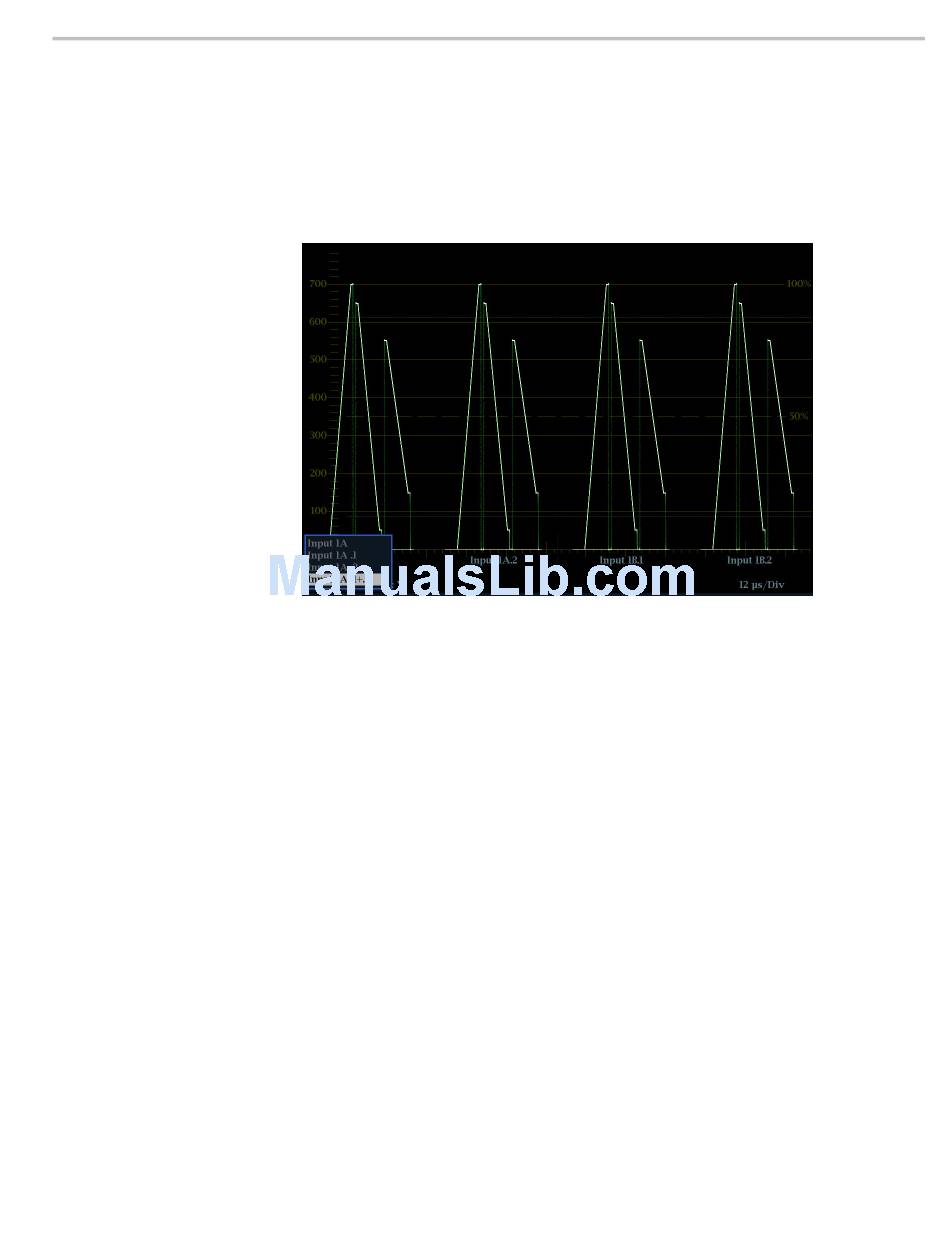

Figure 15: Waveform display in Multi-Input mode showing multiple channels
You can name the input labels from the CONFIG > Graticules and Readouts
> Input Labels menu. Once you are in the Input Labels menu, select an input
and then press the SEL button. A dialog box will appear allowing you to name
the input.
Your instrument can monitor two separate signals simultaneously. In this mode,
the instrument display is divided into two sides, each with two tiles per input.
This allows you to conveniently view measurement and status displays from
two signals at the same time. You can monitor the following combinations:
SDI + SDI, and SDI + CMPST.
Connect signals for simultaneous monitoring the same way you would for
connecting two SDI signals or one SDI and one Composite signal. (See Figure 10
on page 23.)
