PARALLEL CONFIGURATION

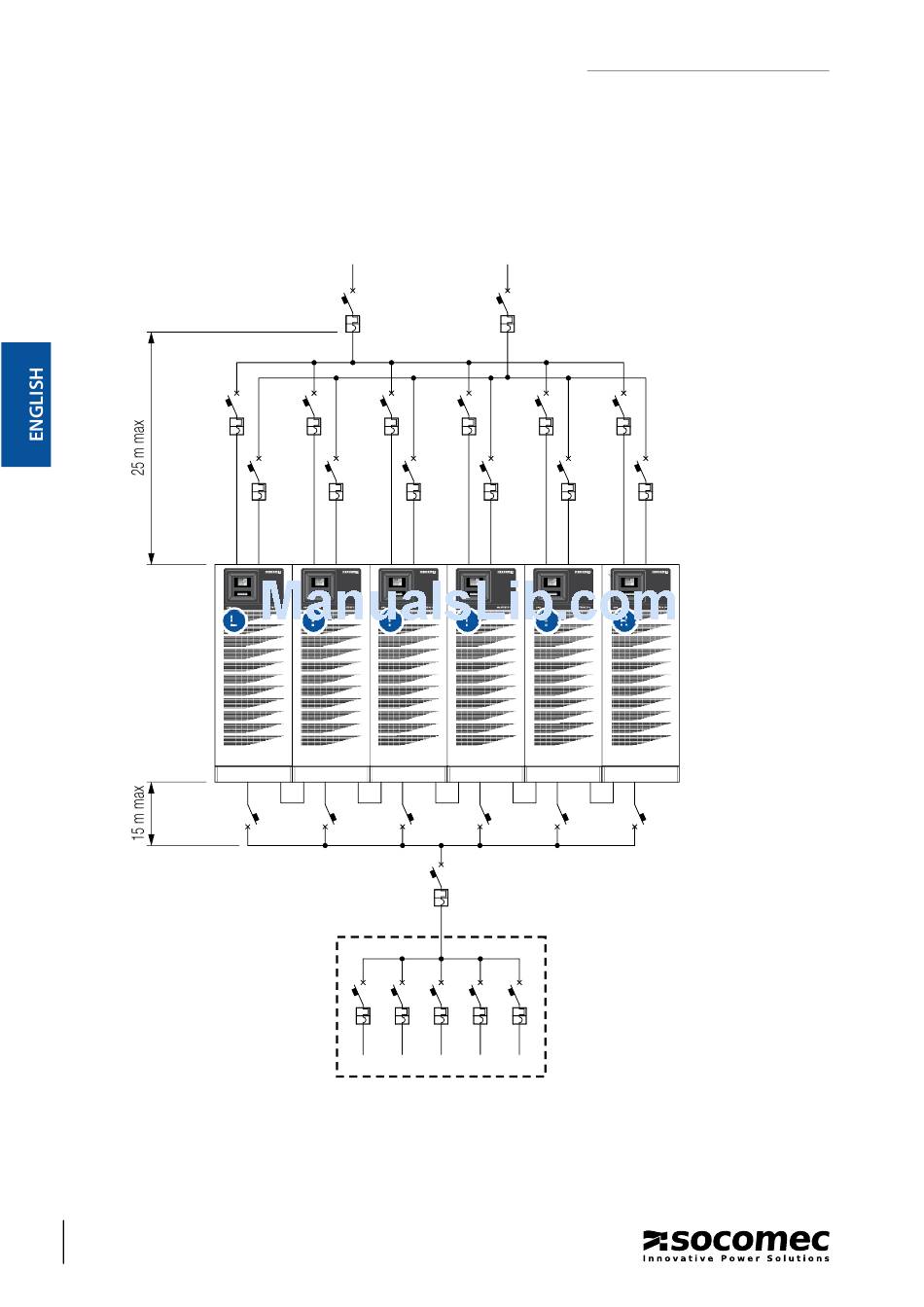

RECOMMENDED PARALLEL POWER CONFIGURATION.
For the connections also refer to chapter 3.
➋
L
58
IOMMASIPXX09-GB 04
MAINS
❶
➋ ➋ ➋
➋ ➋ ➋
I I
➌ ➌ ➌ ➌
❹ ❹ ❹ ❹ ❹ ❹
❺ ❺
MASTERYS IP+
AUXILIARY MAINS
❶
➋ ➋
➋ ➋
I I R
➌ ➌ ➌ ➌ ➌ ➌
❹ ❹ ❹ ❹
❻ ❻
10-40 kVA
➋
❹ ❹
Legend.
1 Main diff erential magneto-thermal
switch.
2 Magneto-thermal switch.
3 "Parallel bus" cable.
4 Output switch.
5 System shutdown switch.
6 Distribution.
I Internal UPS.
L Left UPS
R Right UPS
