6
MIMIC PANEL

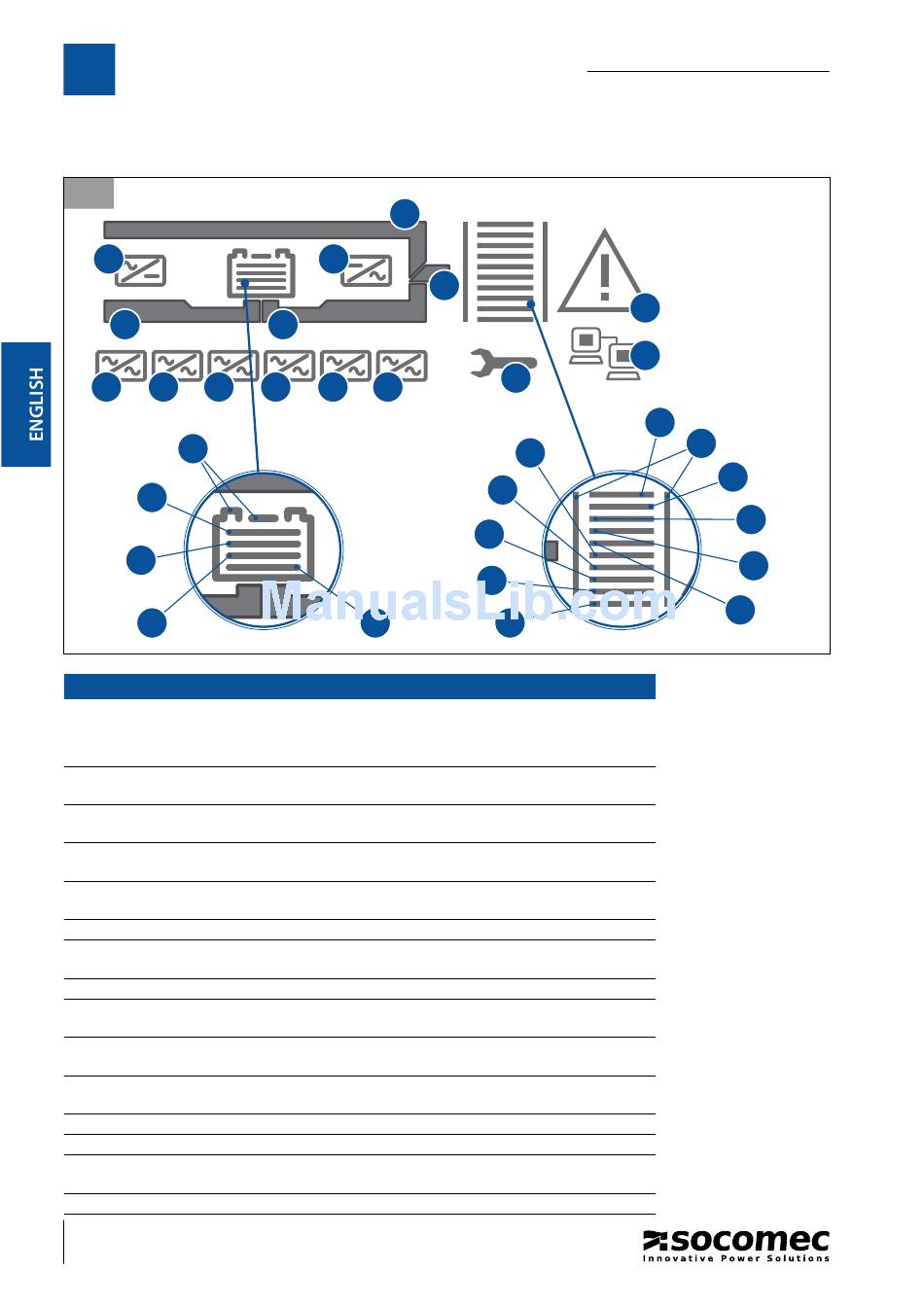

6.2 MEANING OF IDEOGRAMS.

6.2-1
M2
M10
M12 M13 M14
M3
M4
M5
M6
Meaning of ideograms
Code Description
M1 Load on bypass, in Eco-mode or Maintenance bypass closed
Automatic bypass alarm
M2 Input rectifi er active.
Input rectifi er general alarm.
M3 Battery OK.
Battery alarm.
M4-M7 Remaining battery capacity.
Battery recharging.
M8 Inverter on
Inverter general alarm.
M9 Switch Q6 in position 1.
M10 Input mains OK.
Input mains alarm.
M11 Inverter on.
M12 Module 1 present.
Module 1 general alarm.
M13 Module 2 present.
Module 2 general alarm.
M18 Load present.
Overload.
M19-M28 Output load indicator.
M29 Periodic maintenance alarm/warning.
M30 Activation code alarm.
General alarm.
M31 LAN connection ready (Cable Connected).
28
IOMMASIPXX09-GB 04
M1
M8
M9
M11
M15 M16 M17
M7
MASTERYS IP+
M30
M31
M29
M19
M24
M28
M27
M26
M25
Condition
Steady
Flashing
Steady
Flashing
Steady
Flashing
Steps of 25%
Sequence M7 M4
Steady
Flashing
Steady
Steady
Flashing
Steady
Steady
Flashing
Steady
Flashing
Steady
Flashing
Steps of 10%
Flashing
Steady
Flashing
Steady
10-40 kVA
M18
M20
M21
M22
M23
