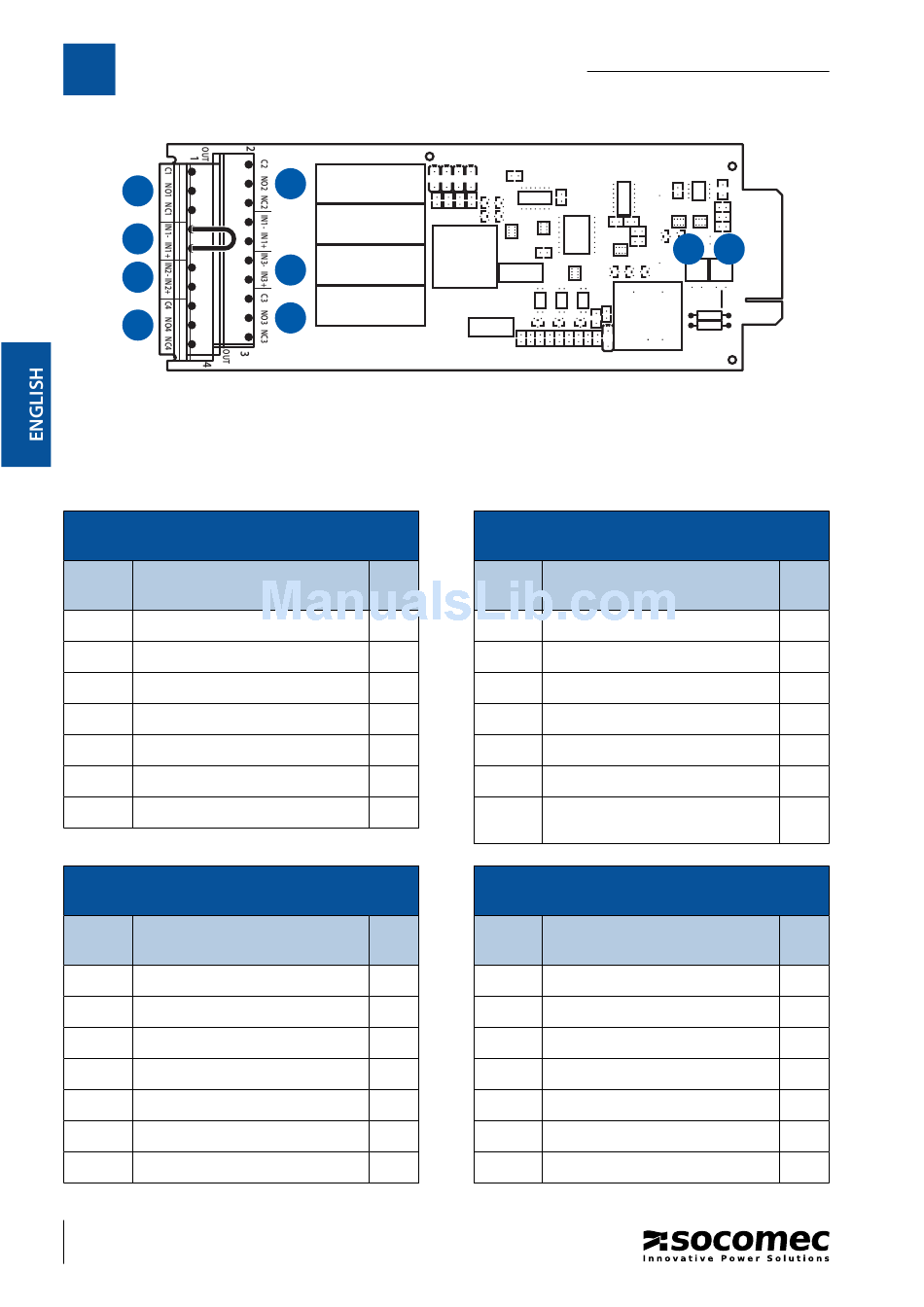

socomec MASTERYS IP Plus Installation And Operating Manual page 20

UNPACKING AND INSTALLATION
1 3
OF THE UNIT
OUT1
IN1
IN2
OUT4
The fi lter level indicates the activation delay: 1 immediate activation (1 seconds minimum communication
time), 2 10 s delay, 3 30 s delay.
STANDARD confi guration (default)
DIP1: OFF - DIP2: OFF
IN/OUT Description
OUT 1 General alarm
OUT 2 Battery discharging
OUT 3 Battery low or imminent stop
OUT 4 UPS on by-pass
(1)
IN 1 E.S.D.
IN 2 Supply from GenSet
IN 3 Isolation controller
SAFETY confi guration
DIP1: OFF - DIP2: ON
IN/OUT Description
OUT 1 General alarm
OUT 2 E.S.D. activation
OUT 3 Battery low or imminent stop
OUT 4 E.S.D. activation
(1)
IN 1 E.S.D.
IN 2 External alarm A39
IN 3 External alarm A40
(1) If the external E.S.D. button is not used, always insert a jumper to short circuit input IN 1
20
IOMMASIPXX09-GB 04
OUT2
IN3
OUT3
Filter
level
2
3
2
2
1
1
2
Filter
level
2
1
2
1
1
2
2
MASTERYS IP+
POWER SAFE confi guration
DIP1: ON - DIP2: OFF
IN/OUT Description
OUT 1 General alarm
OUT 2 Power safe plug 1
OUT 3 Power safe plug 2
OUT 4 Power safe plug 3
(1)
IN 1 E.S.D.
IN 2 Supply from GenSet
Management of energy
IN 3
consuption
ENVIRONMENTAL confi guration
DIP1: ON - DIP2: ON
IN/OUT Description
OUT 1 General alarm
OUT 2 Over-heating
OUT 3 Overload / Loss of redundancy
OUT 4 External alarm In2
(1)
IN 1 E.S.D.
IN 2 External alarm A39
IN 3 External alarm A40
10-40 kVA
DIP1 DIP2
0 1 2 P3
A
Filter
level
2
2
2
2
1
1
1
Filter
level
2
2
2
2
1
2
2
