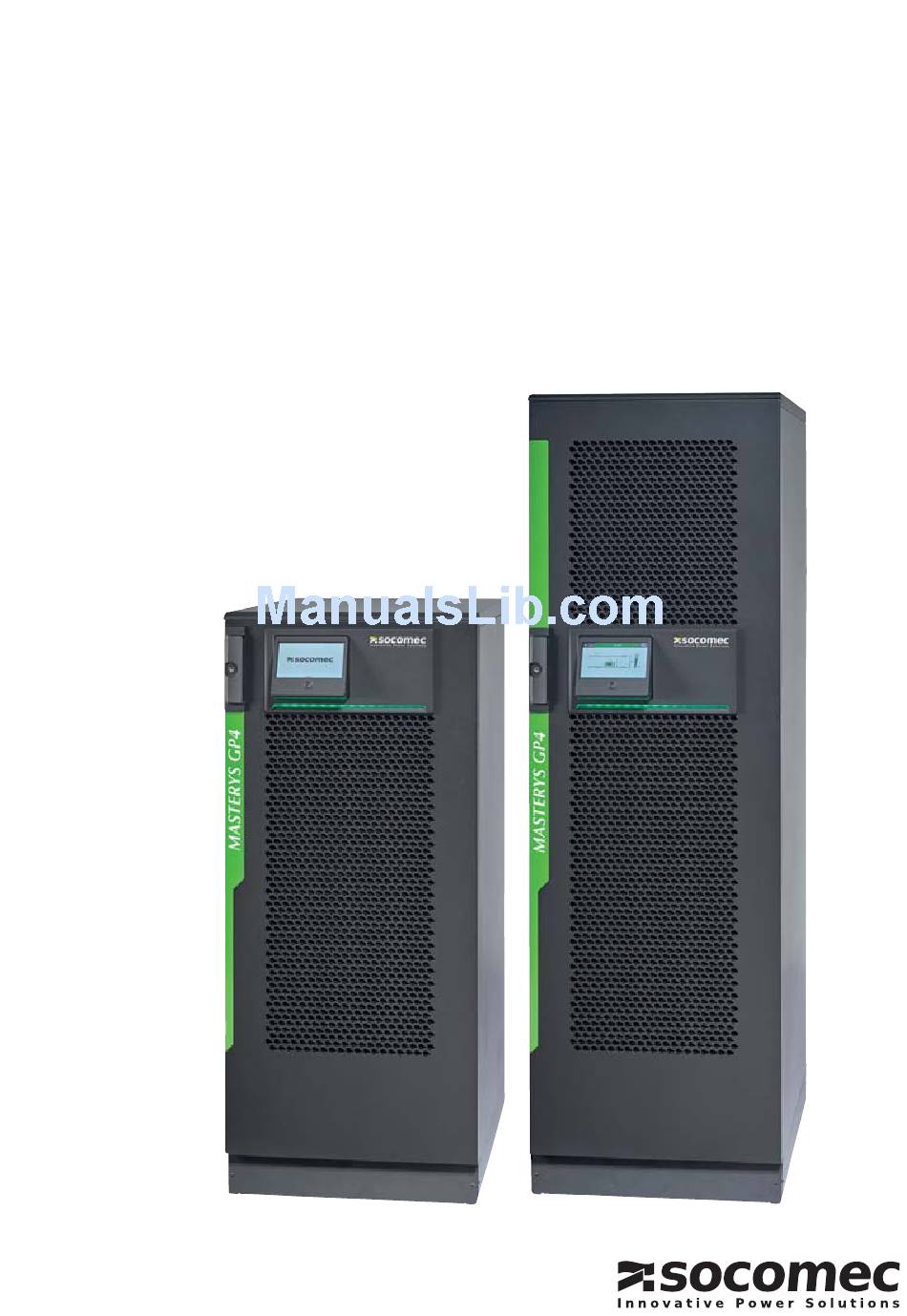

- Page 1 MASTERYS GP4 From 60 to 160 kVA...
-
Page 2: Installation Requirements And Protection
OBJECTIVES The aim of these specifications is to provide: • the information required to choose the right uninterruptible power supply for a specific application. • the information required to prepare the system and installation site. The specifications are intended for: •... - Page 3 1. ARCHITECTURE 1.1 RANGE MASTERYS GP4 is a full range of high performing UPS systems designed to: • ensure 24/7/365 availability and business continuity for mission critical applications, • avoid data losses and downtime of company operations, • reduce the electrical infrastructure’s total cost of ownership, •...
-
Page 4: Flexible Back-Up Time
2. FLEXIBILITY 2.1 POWER RATINGS FROM 60 TO 160 KVA/KW The equipment has been designed with a minimum direct and indirect footprint (the actual space occupied by the unit and the space required around it for maintenance, ventilation and access to the operating mechanisms and communication devices). - Page 5 Reliability is the most critical factor for any UPS solution designed to protect and manage the continuity of activities and services. MASTERYS GP4 MTBF exceeds the market standard, and Socomec officially declares its MTBF data. 2.5 SEISMIC RESISTANT The 4th generation MASTERYS units (with SEISMIC option installed) have successfully passed extensive tests to verify resistance to withstand seismic events.
-
Page 6: Communication Options
3. STANDARD AND OPTIONS 3.1 STANDARD ELECTRICAL FEATURES • Dual input mains. • Internal maintenance bypass. • Backfeed protection: detection circuit and driver. • EBS (Expert Battery System) for battery management. • Distributed and shared battery • Energy saving mode (applicable on parallel systems) to optimise efficiency according to load rate and enhance the UPS lifetime. -
Page 7: Specifications
4. SPECIFICATIONS 4.1 INSTALLATION PARAMETERS Installation parameters Rated power (kVA) Phase in/out Active power Rated/maximum rectifi er input current 93/110 123/146 154/183 185/219 245/292 (EN 62040-3) Rated bypass input current Inverter output current @ 400 V Pn Recommended air fl ow capacity 1080 1440 Acoustic Noise @ 70% Pn... - Page 8 Electrical characteristics - Bypass Rated power (kVA) Bypass frequency variation speed 1 Hz/s (settable up to 3 Hz/s) Bypass rated voltage Nominal output voltage ±20% (selectable) Bypass rated frequency 50/60 Hz (selectable) Bypass frequency tolerance ±2% (confi gurable from ±1% to ±10%) 10 min Bypass current overload (A) 1 min...
-
Page 9: Recommended Protections
4.3 RECOMMENDED PROTECTIONS RECOMMENDED PROTECTION DEVICES - Rectifier Rated power (kVA) C curve circuit breaker (A) gG fuse (A) RECOMMENDED PROTECTION DEVICES - General bypass Rated power (kVA) Max I t supported by the bypass (A 120000 400000 400000 Max Ipk supported by the Bypass(A) 5000 9000 9000... -
Page 10: Reference Standards And Directives
5. REFERENCE STANDARDS AND DIRECTIVES 5.1 OVERVIEW The production of the equipment and the choice of materials and components are in accordance with currently appli- cable Laws, Decrees, Directives and Standards. In particular, the equipment is in compliance with all European directives on CE marking. 2014/35/EU Directive of the European Parliament and of the council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain...
