9
COMMUNICATION

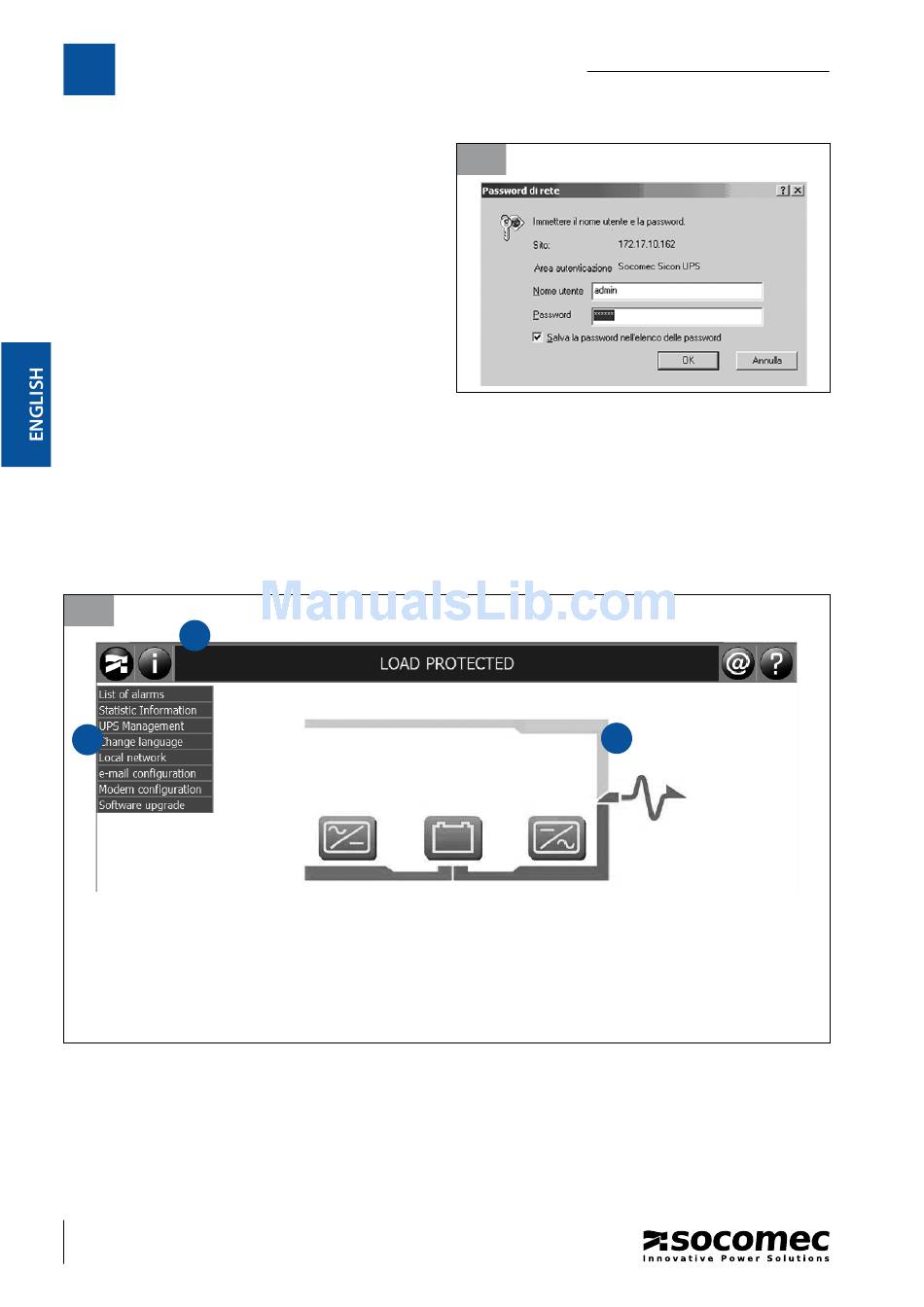

D. A login and a password will be requested (fi g. 8.2.1-2),
the default parameters are:
• login: admin
• password: public
Insert data and click OK.
The main web supervisor page will be displayed and
the functions are described in the following para-
graph.
9.2.2 Description of the functions available.
The main web page shows the general status of the UPS.
This page like all the "sub-pages" are dynamic i.e. the data, images or type of messages shown vary in accordance
with the UPS status and confi guration.
9.2.2-1
A
B
Legend.
A Navigation bar.
B Menu bar.
C system information area.
42
IOMMASIPXX09-GB 04
MASTERYS IP+
9.2.1-2
C
10-40 kVA
