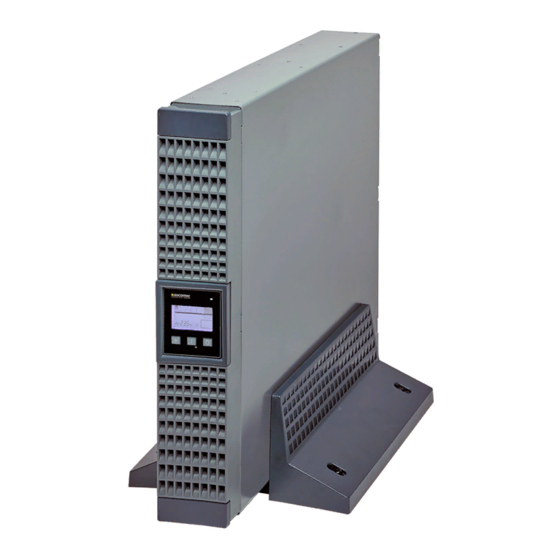

socomec Netys RT Options Manual
1100-11000 va
Hide thumbs
Also See for Netys RT:
- Installation and operating manual (80 pages) ,
- Installation and operating manual (15 pages) ,
- Installation and operating manual (44 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for socomec Netys RT
Summary of Contents for socomec Netys RT

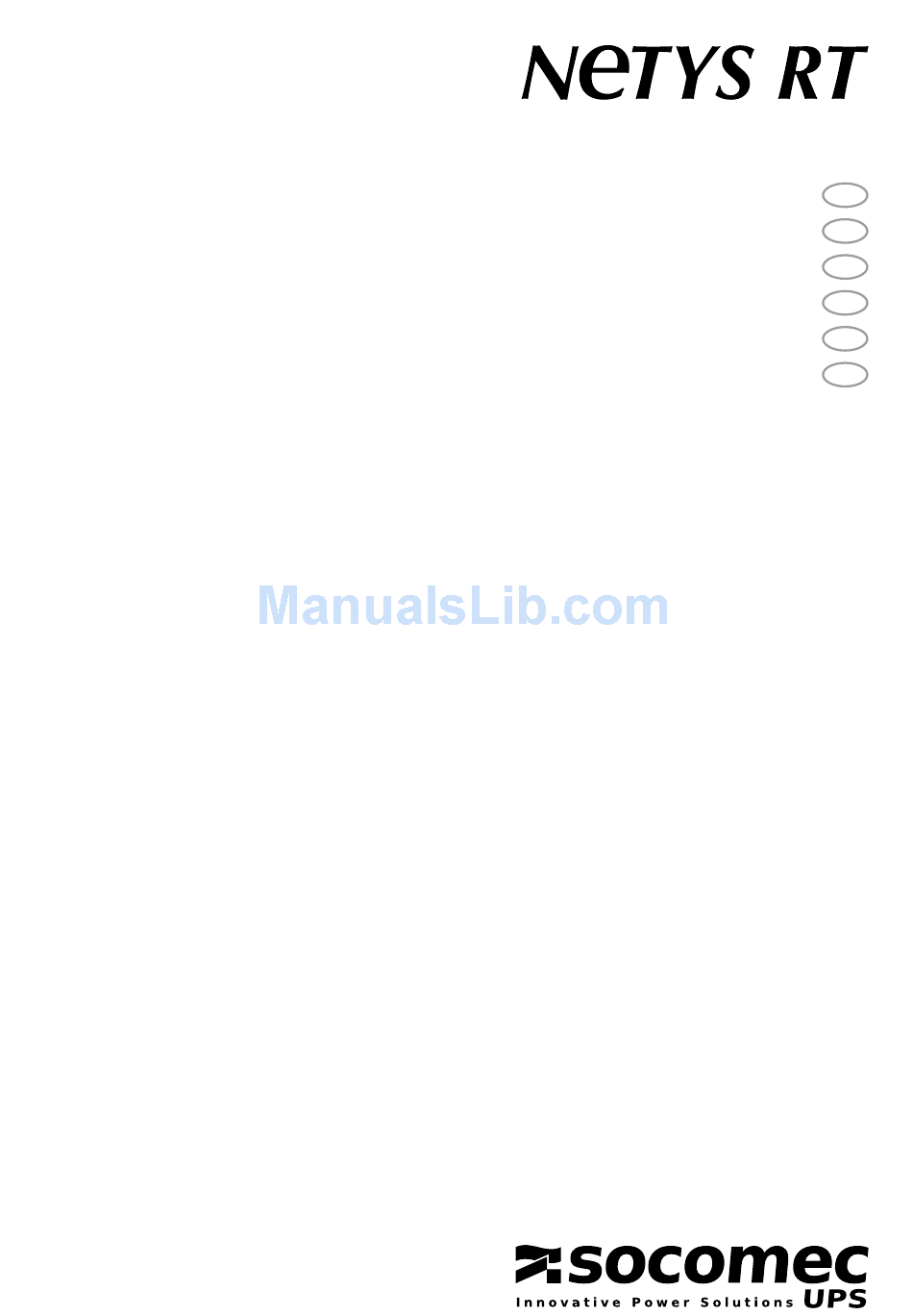

- Page 1 1100-11000 VA Options Options Opzioni Optionen Opciónes Опции...
- Page 2 IMPORTANT WARNING! This product is an accessory of the NETYS RT UPS and it can only be used in conjunction with the NETYS RT range. • For installation and use of this accessory, please REFER To ThE UPS InSTAllATIon mAnUAl •...
- Page 3 ExTErNAL bATTEry cHArGEr. NrT-OP-bcH48V - NrT-OP-bcH72V Battery charger Model NRT-OP-BCH48V NRT-OP-BCH72V Compatible with UPS model NRT-U1700 nRT-U2200 nRT-U3000 Input Single-phase 230 V AC (100-250 V); 50/60 Hz Input current (max) 5.2 A 7.8 A Input protection 10 A fuse Output power Selectable: 220 W or 440 W Selectable: 330 W or 660 W Output current...
- Page 4 • To size the battery charger correctly please refer to the NETYS RT external battery module (EBM) specifications • In case of specific battery cabinets used instead of the NETYS RT external battery modules (EBM), it is necessary to use the suit- able connecting cable, available as an option •...
- Page 5 OF cONNecTION FOR UPS IN PARAllel Parallel redundant operation for business continuity To achieve the highest level of availability and to power mission critical loads, NETYS RT UPS modules above 3 kVA can be config- ured for 1:1 redundancy.
- Page 6 by-PASS cONNEcTION OF UPS IN PArALLEL. Start-up. Legend BY-PASS switch UPS OUTPUT Line breaker UPS1 INPUT switch Cout UPS1 OUTPUT switch UPS2 INPUT switch Dout UPS2 OUTPUT switch Close the MAINS Close switches Switch on both UPSs. Load supplied by UPS switch Close switch B in parallel/redundant...
-
Page 7: Maintenance By-Pass Mode
by-PASS cONNEcTION OF UPS IN PArALLEL. MAINTENANCE BY-PASS mode. Load supplied by UPS Switch of both UPSs Open switches Load supplied through in parallel/redundant by pressing OFF button. B, C by-pass. Maintenance configuration Close switch A in progress MAINS MAINS MAINS MAINS UPS1... - Page 8 Tel. +33 (0)3 88 57 45 45 - Fax +33 (0)3 88 74 07 90 ups.paris.dcm@socomec.com ups.benfeld.admin@socomec.com SOCOMEC UPS Isola Vicentina Via Sila, 1/3 - I - 36033 Isola Vicentina (VI) - ITALY *IOMNETRTXX03-XX 02* Tel. +39 0444 598611 - Fax +39 0444 598622 info.it.ups@socomec.com...
