11
OPTIONS
11.6.1 Protection on Mains Supply and on Auxiliary Mains Supply.
Activating UPS protection on the mimic panel: access the Confi guration menu on the mimic panel (see the Con-
fi guration Menu section in the manual) and set the BACKFEED TYPE parameter to 2.BYPASS-INPUT Alone.

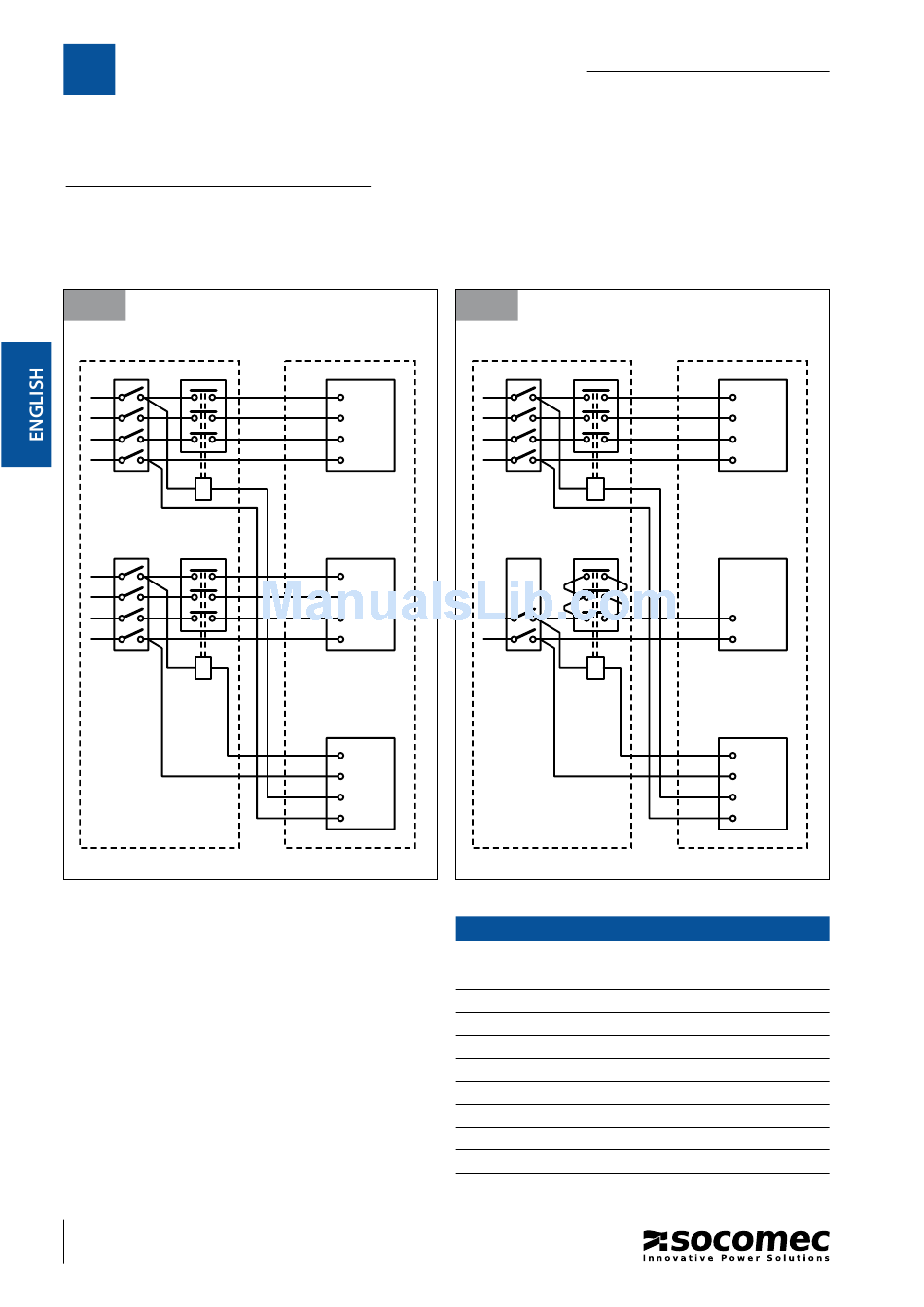

Diagram of principle.
11.6.1-1
UPS 3/3 with separate auxiliary supply.
A
SW1 T1
L1
L2
L3
N
B
SW2 T2
L11
L21
L31
N1
B
Legend.
A Distribution panel
B Coil remote switch
L1-L2-L3-N Input power source
L11-L21-L31-N1 Backup power source
M1 Input power terminals
M2 Backup power terminals
M3 Backfeed terminals
T1 Remote switch
T2 Remote switch
SW1 Input power switch on the distribution
SW2 Backup power switch on the distribution
52
IOMMASIPXX09-GB 04
UPS
M1
L1
L2
L3
N
M2
L11
L21
L31
N1
M3
NC1
COM1
NC2
COM2
1
1
MASTERYS IP+
11.6.1-2
UPS 3/1 with separate auxiliary supply.
A
SW1 T1
L1
L2
L3
N
B
SW2 T2
L11
N1
B
1
Remote switches - rated current
Model T1
10 3/1 32 A AC1
15 3/1 32 A AC1
20 3/1 45 A AC1
30 3/1 60 A AC1
10 3/3 32 A AC1
15 3/3 32 A AC1
20 3/3 45 A AC1
30 3/3 60 A AC1
40 3/3 90 A AC1
10-40 kVA
UPS
M1
L1
L2
L3
N
M2
L11
N1
M3
NC1
COM1
NC2
COM2
T2
45 A AC1
45 A AC1
60 A AC1
60 A AC1
32 A AC1
32 A AC1
45 A AC1
60 A AC1
90 A AC1
