PARALLEL CONFIGURATION

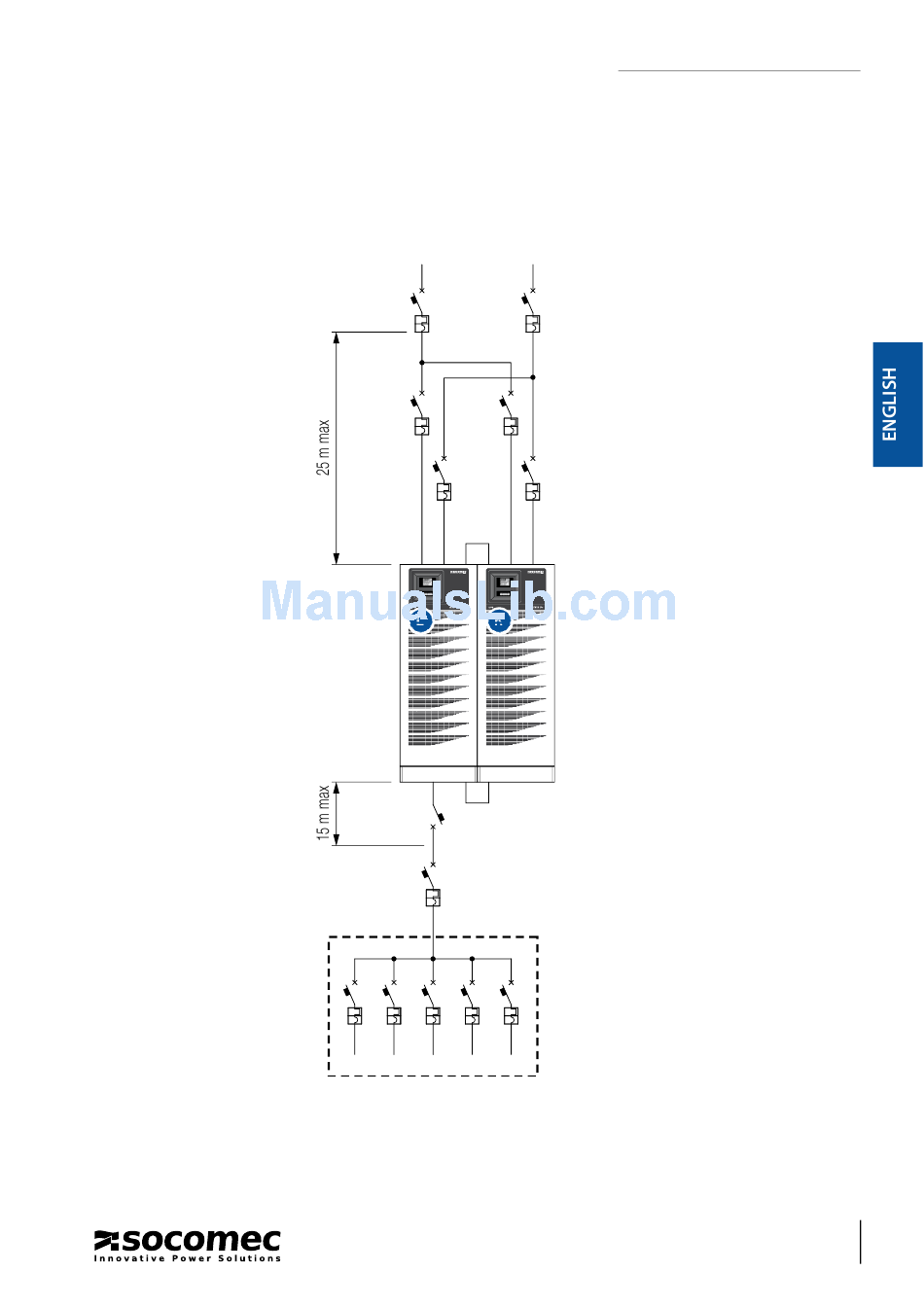

RECOMMENDED PARALLEL 1+1 REDUNDANT CONFIGURATION
For the electrical connections refer to page 60.
MAINS AUXILIARY MAINS
❶ ❶
➋ ➋
➋ ➋
➌ ➌
L R
➐ ➐
❹ ❹
❺ ❺
❻ ❻
MASTERYS IP+
Legend.
1 Main diff erentialmagneto-thermal
switch.
2 Magneto-thermal switch.
3 "Parallel bus" cable.
4 Output switch.
5 System shutdown switch.
6 Distribution.
7 Power connections (refer to page 60)
L Left UPS
R Right UPS
IOMMASIPXX09-GB 04
10-40 kVA
