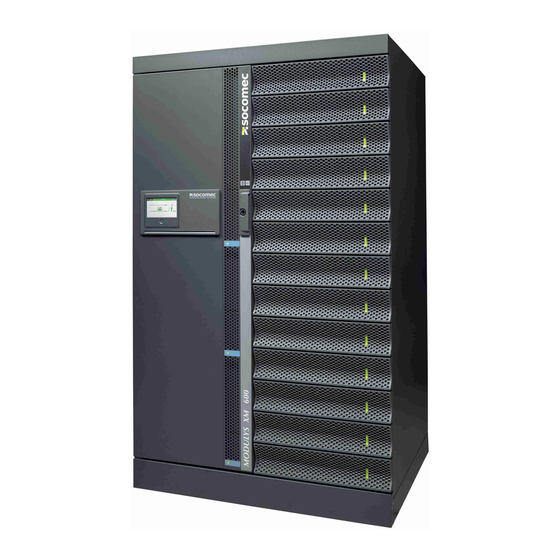

- Page 1 INSTALLATION AND OPERATING MANUAL MODULYS XM 100 to 600+50 kW Socomec Resource Center To download, brochures, catalogues and technical manuals...
-
Page 2: Electrical Installation
Output terminals (mm²) Rigid 3 x 240 M12 Tightening torque 40 Nm Max. section is determined by the size of the terminals. (1) Neutral conductor has to be sized not less than the phase conductor. MODULYS XM650 - 552615A - SOCOMEC... - Page 3 The short-time withstand current (Icw) according to IEC 62040-1 is 20 kA rms for standard (C82) system, 35 kA rms for high short-curcuit (C88) system, where 65 kA rms can be achieved using optional bypass. Contact Socomec for detailed information. NOTE! To ensure the integrity of the bypass thyristors: - I²t must be lower than 3920 kA²s and peak current must be lower than 28 kA for 20 ms in case of...
- Page 4 (1 to 13) UPS door NOTE! MODULYS XM is available in two different configurations: • System with manual bypass, input, aux. mains and output switches (standard system); • System with manual bypass, input, aux. mains, output switches and 2+1 extra bypass module;...
- Page 5 System with manual bypass, input, aux. mains and output switches (with or without extra bypass module) Hot-swap bypass module 3 (extra) Q1 (Input mains switch) Hot-swap bypass Q4 (Auxiliary mains module 1 switch) Q5 (Manual Bypass switch) Hot-swap bypass module 2 UPS connections Q3 (Output switch) Hot-swap bypass...
- Page 6 Wiring diagram Standard System System with 2+1 extra bypass module MODULYS XM650 - 552615A - SOCOMEC...
-
Page 7: External Battery Connection
BATTERY CABINET BATTERY CABINET Note! When battery cabinets not supplied by Socomec are used, the installer is responsible for: • checking electrical compatibility; • checking the presence of appropriate protective devices (fuses and switches that ensure the cables are protected from the UPS to the battery cabinet). - Page 8 Display HOME button Luminous status bar Control panel with LED status bar indicator Colour Description No communication. The data is no longer updated or not present. Flashing red-yellow-green-red Load status cannot be given. Flashing red Load supplied, but the output will stop in few minutes. Load not supplied: Output switched OFF due to an alarm.
-
Page 9: Display Operation
Clock Maintenance alert Synoptic area Help message area “Press Key to wake up” appears when the display goes on standby. Touch the display to BYPASS view: wake it up. Measures report MODULYS XM650 - 552615A - SOCOMEC... -
Page 10: Functioning Mode
8.3. Functioning mode Service Isolated Eco mode scheduling active Eco Mode active Standby active 8.4. Status 8.4.1. Status page Filtering List all active status List all status List all status not active... -
Page 11: Alarms Management
List all active alarms List all active preventive alarms List all active critical alarms POPUP ALARM FOR PREVENTIVE ALARM In USER PARAMETERS menu, PREFERENCES item gives the possibility to enable popup alarm also with preventive alarms. MODULYS XM650 - 552615A - SOCOMEC... - Page 12 • Battery animation BATTERY STATUS DESCRIPTION If battery is absent, the battery icon is not displayed If battery is present but not connected, the icon is displayed If the battery is present and charging, the arrow icon is displayed If the battery is present and discharging, the arrow icon is displayed If a battery alarm has occurred, the red icon is displayed...
-
Page 13: Additional Icons
8.6.1. Additional icons Bypass impossible. Bypass locked. Maintenance alarm. Preventive maintenance is requested. 8.7. Event log page Show STATUS events Show ALARMS events Show CONTROLS MODULYS XM650 - 552615A - SOCOMEC... - Page 14 8.8. Menu function descriptions 8.8.1. Entering passwords Some operations and settings require a password in order to be performed. Wildcard covering of the password is active by default. The default password is SOCO. NOTE! The password must only contain capital letters and not include the following characters ():*<>._ Press ENTER to confirm the selection or close the window to abort.
-
Page 15: Operating Procedures
9. OPERATING PROCEDURES NOTE: before carrying out any operations on the unit read the 'Safety standards' chapter carefully. NOTE: with the stop procedure the load will be disconnected. 9.1. Switching on • Connect the mains and auxiliary mains to the UPS. •... -
Page 16: Extended Out Of Service
• Close the external battery breaker/fuses. • Wait until the batteries are fully charged. Check in the menu MAIN MENU > MEASUREMENTS > BATTERY MEASUREMENTS. • Open the external battery breaker/fuses. • Switch OFF input switch Q1. MODULYS XM650 - 552615A - SOCOMEC... -
Page 17: Emergency Shutdown
9.5. Emergency shutdown NOTE! This operations interrupts the supply to the output load from both inverters and automatic bypass. Ups power off • Put Q3 to position 0 when it’s necessary to interrupt the power supply quickly. Remote ups power off It is possible to interrupt the power supply to the output load using the ADC+SL board. -
Page 18: Operating Modes
• when the internal temperature exceeds the maximum value allowed. • Battery mode In the event of a mains failure (micro interruptions or extended power cuts), the UPS continues to power the load using the energy stored in the battery. MODULYS XM650 - 552615A - SOCOMEC... -
Page 19: Kit For Common Mains
11.6. Remote touchscreen display NOTE! Available only with ADC+SL option card. 11.7. Kit for common mains See 'Mains and auxiliary mains connected together' chapter. MODULYS XM650 - 552615A - SOCOMEC... -
Page 20: Troubleshooting
UPS ratings. There is a problem with the battery charger. Please contact the A037 CHARGER CRITICAL ALARM Service Department. Battery charger was temporary stopped or Battery Voltage is too A038 CHARGER PREVENTIVE ALARM low. MODULYS XM650 - 552615A - SOCOMEC... -
Page 21: System Status
There is a problem with the inverter. Please contact the Service A040 INVERTER CRITICAL ALARM Department. There is a non-critical problem with the inverter. Check the fans are A041 INVERTER PREVENTIVE ALARM working properly. Please contact the Service Department. Imminent redundancy was lost due to overload, unit imminent stop, A043 INVERTER IMMINENT STOP etc. -
Page 22: Preventive Maintenance
(premises, usage or load type) are abnormal or harsh for the equipment. It is advisable to replace consumables as follows Consumable part Years AC and DC capacitor (1) Based on operation of the unit according to the manufacturer’s specification. MODULYS XM650 - 552615A - SOCOMEC... -
Page 23: Safeguarding The Environment
14. SAFEGUARDING THE ENVIRONMENT Do not dispose of electrical appliances with normal waste, use separate collection facilities. Follow local council waste regulations for proper disposal arrangements to reduce the environmental impact of waste electrical and electronic equipment or contact your local government for information regarding the collection arrangements available. -
Page 24: Technical Specifications
< 1 mA Protection level IP20 (1) No redundancy (5) @ Battery Fully Discharged. Call SOCOMEC support service (2) Pout ≥ 50% Sn (6) @ Battery Fully Charged. Call SOCOMEC support service (3) 360 V with Pout = 90% Pn (7) Condition apply. - Page 25 Number of modules 350+50 400+50 450+50 500+50 550+50 600+50 Power (N+1 redundant) 350+50 400+50 450+50 500+50 550+50 600+50 Input Input mains voltage 3ph + N 340 V to 480 V (+20/-15%) up to -40% @ 70% of nominal load Input mains frequency 40 to 70 Input power factor ≥...
