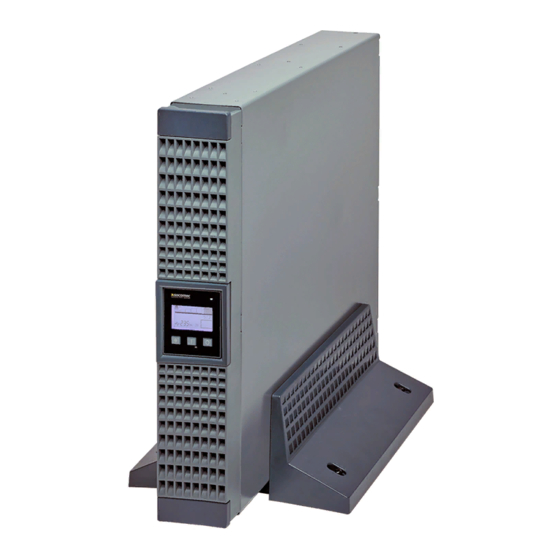

socomec NETYS RT Installation And Operating Manual

Hide thumbs Also See for NETYS RT:
Table of Contents

Advertisement

Quick Links

INSTALLATION AND OPERATING MANUAL
EN
NETYS RT
7000 - 11000 VA
Hot swap RT version
www.socomec.com/netys-manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NETYS RT and is the answer not in the manual?

Questions and answers

Related Manuals for socomec NETYS RT

Summary of Contents for socomec NETYS RT

  • Page 1 INSTALLATION AND OPERATING MANUAL NETYS RT 7000 - 11000 VA Hot swap RT version www.socomec.com/netys-manuals...
  • Page 3 For other languages please contact Socomec or local distributor. The manufacturer will not be held liable for failure to follow the instructions in this manual which is also available at www.socomec.com NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 4 Return-to-base warranty is provided: components and labour for repairs supplied free of charge, any products to be replaced must be returned to Socomec or authorised service centres, at the customer’s own risk and expense. The warranty is recognized within national territory. If the UPS is exported out of national territory, the warranty shall be limited to the cover of the parts used to repair the defect.
  • Page 5 Court of Vicenza. Socomec retains the full and exclusive ownership rights over this document. Only a personal right to use the document for the application indicated by Socomec is granted to the recipient of such document. All reproduction, modification or dissemination of this document whether in part or whole and by any manner are expressly prohibited except upon Socomec’s express prior written consent.

  • Page 6: Table Of Contents

    5.9. Use of Warning Relay Interface (option) ......32 NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 7 13. TECHNICAL SPECIFICATIONS........76 14. APPENDIX: TOXIC AND HAZARDOUS SUBSTANCES AND ELEMENTS ..78 NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 8: Safety Standards

    For such uses we would advise you to contact Socomec beforehand to confirm the ability of these products to meet the requested level of safety, performance, reliability and compliance with applicable laws, regulations and specifications.
  • Page 9 • Do not pour and splash any liquid on the UPS. Do not insert any object into the slits and openings of the UPS. Do not put beverage containers on or around the UPS. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 10 - Remove watches, rings, or other metal objects. - Use tools with insulated handles. - Wear rubber gloves and boots. - Do not lay tools or metal parts on the top of batteries. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 11: Description Of The Symbols Used On The Labels Applied To The Unit

    All the precautions and the warnings on the labels and plates on the inside and outside of the equipment should be respected. DANGER! HIGH VOLTAGE (BLACK/YELLOW) GROUND TERMINAL READ THE USER MANUAL BEFORE USING THE UNIT NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 12: Storage And Installation

    After storage and before start-up of the UPS, you must allow the UPS to adjust to room temperature (20°C~25°C or 68°F~77°F) for at least one hour to avoid moisture condensing inside the UPS. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 13: Electrical Requirements

    11 kVA 63 D 0.1 A type A 10 mm Always refer to local wiring regulations for correct cable sizes and protective device ratings depending on the installation environment. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 14: Introduction

    2. INTRODUCTION 2.1. General Overview The NETYS RT series UPS is a single-phase input, single-phase output on-line uninterruptible power supply which provides reliable and consistent sine-wave quality power to your electronic equipment. It uses the latest technology and the highest quality components, and its efficiency in on-line mode can reach up to 95.5%.

  • Page 15: Package List

    × 4 × 6 × 4 × 2 × 4 × 4 × 1 × 1 11 kVA × 4 or × 1 × 1 × 6 × 6 NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 16 If the UPS needs to be returned, carefully repack the UPS and all of the accessories using the original packing material that came with the unit. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 17: Operation Panel

    3.1. LED Indicators Description • Green - Normal operation. • Yellow- Alarm • Red - Load not supplied Please check the corresponding warning message(s) in Chapter 11: Troubleshooting. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 18: Multi-Function Buttons

    11: Troubleshooting for relevant solutions. ON/ OFF The function mentioned above is only applicable to Button the condition when the UPS has a fault situation and (Continued) the inverter is off. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 19 Scrolling highest value. Up Button 2. LCD Reset (Continued) Press the Scrolling Up and the Scrolling Down buttons together for 3 seconds to reset the LCD display. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 20 If the LCD display goes dim, press any button mentioned above for 0.1 seconds to reactivate the LCD display and enable each button function. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 21: Lcd Display

    When the UPS has abnormalities or is in fault condition, the display will show an error code and its corresponding fault or warning message. Indicates that the buzzer is muted. Indicates that the output is overloaded NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 22 3.3.2. Operating Mode Diagram Definition Diagram Description Indicates ONLINE mode. BYPS Indicates ECO mode. BYPS Indicates BATTERY mode. BYPS BATT 999 min Indicates BYPASS mode. BYPS Indicates AC STANDBY mode. BYPS STBY NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 23: Rear Panel

    OUTPUT SOCKET-4 OUTPUT SOCKET-3 OUTPUT SOCKET-2 10A MAX. PER OUTLET 10A MAX. PER OUTLET 16A MAX. PER OUTLET 16A MAX. PER OUTLET (Figure 4-2: 11 kVA Rear Panel) NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 24 Prevent(s) the output socket from damage Output Breaker(s) caused by overload. For UPS internal TMOV grounding. Do not use for UPS or load grounding NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 25 For UPS grounding. AC Input Terminal Connects to the mains. Block* (L & N) * Remove the terminal cover plate and you will see the wiring terminal blocks. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 26: Communication Interfaces

    5.3. Dry Contacts The NETYS RT UPS provides one input dry contact for you to receive external control signals. You can set up relevant items in the Dry Contact Setting screen, which includes Disable/ ROO/ RPO/ Remote shutdown/ Forced bypass/ On generator.

  • Page 27: Repo Port

    Computers recognize the USB as a virtual COM port. From Windows® 10 operating system version, the native operating system driver is recommended. For operating system version earlier than Windows® 10, please download the driver from the following address: https://www.socomec.com/netys-manuals NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 28: Web/Snmp Card (Option)

    • Pin Assignment - PIN 7: D+ - PIN 8: D- • Hardware - Baud Rate: 9600bps - Data Length: 8 bit - Stop Bit: 1 bit - Parity: None NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 29: External Battery Connector

    Do not use an AC breaker. - The breaker must be a 2-pole non-fuse DC breaker with characteristics of 1-pole 250Vdc, 2-pole 500Vdc and 35kA (or above) DC breaking capacity. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 30 Servicing of batteries and battery packs must be performed or supervised by qualified service personnel familiar with batteries, battery packs and the required precautions. Keep unauthorized personnel away from batteries and battery packs. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 31 Route: press the button for 0.1 seconds → tap the icon → select Maintenance Test → select Start Battery Test. For relevant information, please refer to 9.2 Main Menu. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 32: Use Of Warning Relay Interface (Option)

    5.9.1. Internal circuit Common R1 General alarm R2 No mains R3 Battery low R4 On by-pass R5 Overload R6 Overtemperature CPU Pin GND-R Input GND-R GND-R Common Input GND-C NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 33 Firmware Version: Relay Card V1.4 [1] . Customize Output Relay [2] . Configure Input Signal [3] . Customize Normal Open or Normal Close [0] . Quit Please Enter Your Choice > NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 34 Please Enter Your Choice > 4. Press ‘0’ to end the configuration session. The system will prompt you to save the new settings. Press ‘Y’ to save, ‘N’ to cancel. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 35: Installation

    Use the included bracket ears and screws to mount the UPS in a rack by following the procedures below. 1 Attach the included bracket ears to the lateral mounting holes of the UPS. See Figure 6-1. (Figure 6-1: UPS Bracket Ear Installation) NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 36 : Fix the rail on the rack. Step : Insert the UPS in the rack and tighten the screws. 3 If you want to use a non-Socomec rail kit, please only follow step (Figure 6-2: Rack Mounting) MAX 87.5 kg MAX 87.5kg...

  • Page 37: Tower Mounting

    2 Pull out the two panels , rotate them 90° clockwise and re-insert them (see Figure 6-5). (Figure 6-5: Rotate the Two Panels and Two Socomec Logo Nameplates) NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 38 Leave adequate space (at least 50cm) around all sides of the unit for good ventilation. A minimum of two people are required to execute 3 and 4 . NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 39: Plug-In Manual Bypass Disassembly & Installation

    (Figure 6-8: Remove the Cover Plate of the Manual Bypass Switch) 2 Turn the manual bypass switch to the Bypass position. Manual Bypass Switch (Figure 6-9: Turn the Manual Bypass Switch to the Bypass Position) NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 40 2 Disassemble the Plug-in manual bypass from the rear of battery pack (see Figure 6-11_ Screw x 4 Rear of battery pack Plug-in manual bypass (Figure 6-11: Disassemble the Plug-in manual bypass) NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 41 If you need to install the Plug-in manual bypass on a rack, please follow the steps below. 1 Attach the provided mounting brackets to the Plug-in manual bypass using the screws that came with the brackets. Plug-in manual bypass Plug-in manual bypass NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 42: Battery/ Battery Pack Replacement

    1 Remove the screws and remove the battery pack’s front bezel 2 Disconnect the battery terminals 3 Use the insulated screwdriver to remove the screws from the protective cover located in front of the battery NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 43 Follow the same procedure to replace the battery in the right battery compartment A minimum of two people are required to carry out 3 and 4 . 5 Reassemble the battery pack in reverse order. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 44: Connection And Wiring

    2 The protective devices must use approved components that meet safety certifications. 3 The power supplying to the UPS must be single-phase in accordance with the unit's rating label, and the UPS must be properly grounded. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 45: Input/ Output Connection

    - Calculate the power consumption of the loads to avoid an overload condition. - Ensure that the screws are tightly fixed after connection. Please refer to Table 7-1. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 46 AC power. The warning label shall carry the following wording or equivalent. Before Working on This Circuit -Isolate Uninterruptible Power System (UPS) -Then check for Hazardous Voltage between all terminals including the protective earth. Risk of Voltage Backfeed NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 47 Please refer to the diagram below to install the backfeed protection device between the AC input and the UPS. Contactor Contact Control relay DC 12V (Figure 7-3: Backfeed Protection Wiring Diagram) NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 48: External Battery Pack Connection

    OUTPUT SOCKET-5 OUTPUT SOCKET-4 OUTPUT SOCKET-3 OUTPUT SOCKET-2 10A MAX. PER OUTLET 10A MAX. PER OUTLET 16A MAX. PER OUTLET 16A MAX. PER OUTLET (Figure 7-6: Battery Cable Connection) NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 49: Operation

    ) for 3 seconds to start up the UPS. Release the button after you hear one beep and the UPS will start up. After the UPS performs self-diagnosis, the UPS will run in ON-LINE mode. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 50 UPS. Release the button after you hear one beep and the UPS will start up. After the UPS performs self-diagnosis, the UPS will run in BATTERY mode. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 51: Turn-Off

    (see Figure 7-1). 4 After the LCD backlight goes dim and the fans stop completely, switch off the battery breaker to ensure that there is no remaining battery power. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 52: Operating Mode

    Frequency Conversion Mode In Frequency Conversion mode, the UPS output frequency is manually set up. The system will disable the bypass function and there is no bypass output. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 53: Lcd Display & Settings

    0.1 seconds to enter the Main Menu. You can set up relevant items here. Measurement Setting Main Menu Control Maintenance Please note that only qualified service personnel can perform setup actions. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 54 8 In setup mode, if you don’t press any button for more than 5 minutes, the LCD will exit from the setup mode and go back to the original display automatically. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 55 Dry Contact 2 – Output/ Dry Contact 3 – Output/ Dry Contact 4 – Output/ Remote Control (Level 2) Component Life Prediction Fan Life Prediction (Figure 9-1: Menu Tree) NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 56 1 /3 Output Measurement Setting Input ECO Mode Parallel Control Maintenance 2 /3 On/Off Settings Battery General Dry Contact Setting 3 /3 Dry Contact Setting Component Life Prediction NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 57 Output Sync. Freq. Range. *2: When the Output Frequency is set as Converter-50Hz/ Converter-60Hz, the UPS will enter the Frequency Conversion mode and the bypass output will become Disable. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 58 Auto Restart Enable/ Disable Enable Auto Start on AC Enable/ Disable Disable In the Setting Menu, the sub item Option 1 under the item Energy Saving cannot be changed. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 59 Part Number and the Quantity of the standard battery pack(s). When the External Battery Source is set as Customer own batt. pack, the Part Number and Quantity will be changed accordingly to Battery Voltage and Total Capacity. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 60 Option 3: Normally open/ Normally closed (For ROO) *: For detailed information about option 1, please contact service personnel. Component Life Prediction Setup Item Selectable Value Default Value Fan Life Prediction No/ Yes NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 61 In the Main Menu, after selecting , press the button to enter the Maintenance Maintenance Menu. 1 /2 Test Measurement Setting Battery Aging Reset Control Maintenance 2 /2 About NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 62 Aging Actual discharging Discharging power, Total time, History discharging Estimated time remaining time, Total discharging time Reset Power Yes/ Cancel Usage Data Reset Restore Factory Yes/ Cancel Setting NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 63 Model Name: PR-7K UPS - Serial No. XXXXXXXXXX Maintenance UPS - Manufacture Date YYYY-MM About UPS Firmware – Version XXXXXXX Battery Summary: Installed YYYY/ MM/DD Replace YYYY/ MM/DD NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 64 Battery Test Test In Progress... Battery 272.0V Press ESC key to abort test Battery Test Test In Progress... Battery 272.0V Press ESC key to abort test Test Completed NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 65 Test In Progress... Test Result: Pass Test In Progress... Battery Battery 272.0V 72.0V Battery Battery 272.0V 72.0V Press ESC key to Escape Press ESC key to Escape BYPS NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 66: Optional Accessories

    10. OPTIONAL ACCESSORIES There are several optional accessories available for this NETYS RT series UPS. Please refer to the table below for the optional accessories and their functions. Options NRT3-OP-MBP NETYS RT manual bypass for single unit for 5000VA to 11000VA UPS...

  • Page 67: Optional External Battery Pack

    • Do not place beverages or any other liquid-containing vessels on or near the battery pack. • This battery cabinet is part of a SOCOMEC UPS system. • Be sure to use this battery cabinet only with the suitable SOCOMEC UPS. 10.1.2. Package List ×...
  • Page 68 Chapter 6.1, Battery Pack instead of UPS Tower Mounting: 1 Connect the provided tower stand extenders with the tower stands provided in the UPS’s carton (please take the UPS and the Socomec external battery pack’s size into consideration). See Figure 10-1. Tower Stand Extender Tower Stands (Figure 10-1: Connect the Tower Stand Extenders with the UPS’s Tower Stands)
  • Page 69 Parallel the Socomec External Battery Packs To extend the back-up time, you may parallel the Socomec external battery packs before connecting them to the UPS. The two models’ parallel methods are similar. For parallel application, only use the same type of Socomec external battery packs (same product number).
  • Page 70 10.1.4. Operation Procedures Follow the NETYS RT UPS User Manual to execute input/ output connection. Follow the battery installation procedure to connect the UPS and the Socomec external battery pack(s). Turn on every Socomec external battery pack’s breaker and the UPS’s input breaker.

  • Page 71: Troubleshooting

    1. The vents are 1. Check whether the blocked. vents are blocked. INV IGBT Over 0X8106 Heat Shutdown 2. The UPS has an 2. Contact service internal fault. personnel. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 72 Battery Life time Expired 0x1005 Battery Reversed 0x1012 Battery Test Fail 0x1013 Battery Test In Progress 0x1101 Output Overload Shutdown 0x1109 Output Short Circuit 0x1200 INV Volt Abnormal NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 73 PFC Over Heat Warning 0x6102 PFC Over Heat Shutdown 0x6119 PFC Rectifier Over Heat Warning 0x61C1 Mains Input Fuse Open 0x6200 Recover from PFC DC Bus Over Warning NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 74 Charger Output Switch Abnormal 0xA101 Charger Over Heat Shutdown 0xA200 DC Converter Soft Start Fail 0xA281 Battery Abnormal - Under Volt 0XA403 Battery setting fault 0X6B01 BMS Communication Loss NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 75: Maintenance

    - Whether battery voltage is normal. If battery voltage is too high or too low, find the root cause. 12.2. Batteries The NETYS RT series UPS uses lead-acid or lithium-ion batteries. Though the typical battery life cycle is 3~5 years, the battery life depends on the temperature, usage, and charging/ discharging frequency. High temperature environments and high charging/ discharging frequency will quickly shorten the battery life.

  • Page 76: Technical Specifications

    C13 × 6, C19 × 2 C13 × 6, C19 × 4 Electrical output supply TT, TN system Online Mode Up to 95.5% Efficiency ECO Mode Up to 99% NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 77 *1: In free running mode the UPS needs to be de-rated to 70% of its capacity. Please refer to the rating label for the safety rating. All specifications are subject to change without prior notice. NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...

  • Page 78: Appendix: Toxic And Hazardous Substances And Elements

    O：表示该有毒物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规 定的限量要求 以下。 X：表示该有毒物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量 要求。 注：印刷电路板：包含空的印刷电路板及其上面所有零部件。 有害物质 Pb，Hg，Cr6+，PBB，PBDE 1000 PPM 100 PPM 依照中国《电子信息产品污染控制管理办法》( 第 39 号 )，现标明此产品中可能 含有的有毒、有害物 质或元素的名称与含量。 • 环保使用期限：本产品环保使用期限请参照贴在机器上的规格标签上的标识。 • 产品报废后处置提示：本产品符合国家相关法律法规的要求，当产品报废 后，请按当地环保法规要求 处置。 NETYS RT Hot Swap 7 - 11 kVA - 551574B - SOCOMEC...
  • Page 80 Socomec: our innovations supporting your energy performance 3,600 independent manufacturer employees % of sales revenue experts worldwide dedicated to R&D dedicated to service provision Your power management expert POWER POWER POWER EXPERT SWITCHING MONITORING CONVERSION SERVICES The specialist for critical applications •...
