Wall Mounting

The TimeSource 2500 can be attached to a wall or other surface.
Attach the proper mounting ears, included with the
TimeSource 2500, as shown in Figure 25, then use appropriate
screws (not included) to attach to the chosen surface.

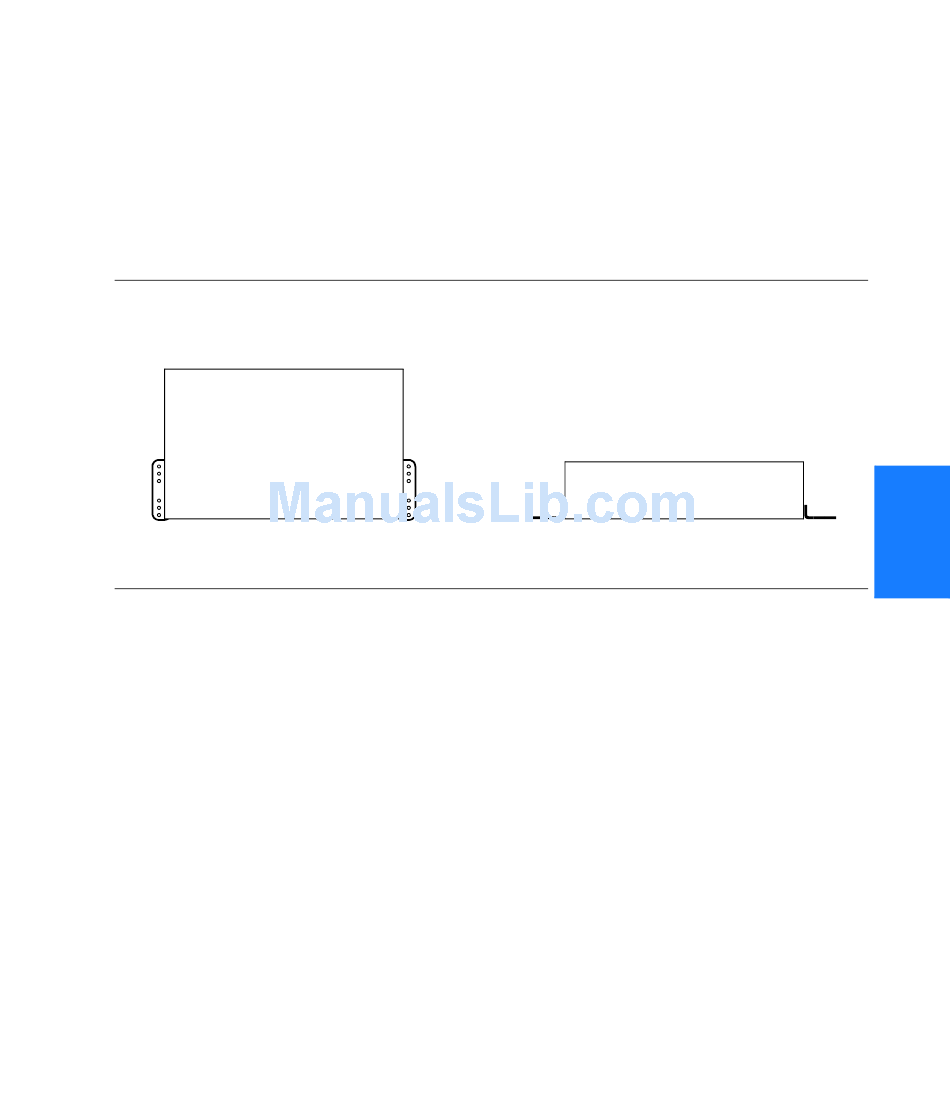

Figure 25. Wall Mounting
Rear
Top
A. Top view

Cabling

The connection to the GPS antenna is on the rear of the
TimeSource 2500 Shelf. All other connections are made on the
front of the shelf. When installing the TimeSource 2500 in a rack
with a wire-wrap panel, connections are made at the rear of the
wire-wrap panel. Figure 26 shows the locations of the connectors
on the front of the shelf, and Figure 27 shows the locations of the
connectors on the rear of the wire-wrap panel.
S S S S S S S S S S S S S S S S
Top
Front
B. Front view
S S S S S S S S
71
Installation
