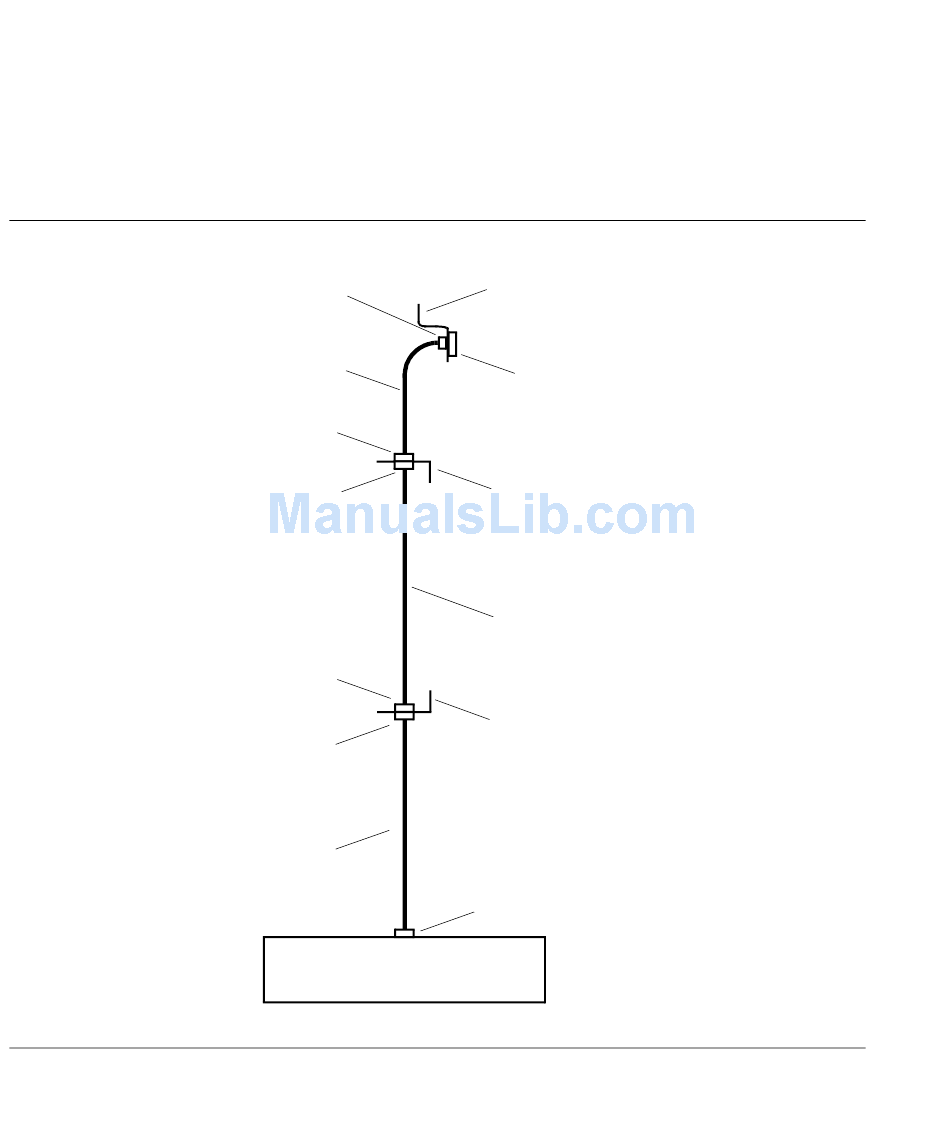

Figure 11. Antenna-to-Shelf Connection with Cable Kit 093-71401-15
(Attached to cable)
LMR-240 Cable (6 ft)
(Attached to cable)
(Attached to cable)
(Attached to cable)
(Attached to cable)
LMR-240 Cable (6 ft)
34
TimeSource 2500
S S S S S S S

Antenna-to-Shelf Distance Up to 150 Feet

Figure 11 shows antenna-to-shelf cabling when the total length of
the cable route is between 100 feet and 150 feet. For this
configuration, use cable kit 093-71401-15.
TNC Connector
060-00048-01
N Connector
N Connector
N Connector
N Connector
060-00048-01
TimeSource 2500
090-71000-02
S S S S S S S
Antenna Mounting Bracket
070-00383-01
Antenna
090-71010-89
Cable Mounting Bracket
(Attach to inside wall)
070-00379-02
with N-to-N Adapter
121-00548-01
LMR-400 Cable (150 ft)
060-31000-15
Cable Mounting Bracket
070-379-02
with N-to-N Adapter
121-00548-01
TNC Connector
(Attached to cable)
