Antenna-To-Shelf Distance Up To 200 Feet - Symmetricom TimeSource 2500 Manual

S S S S S S S

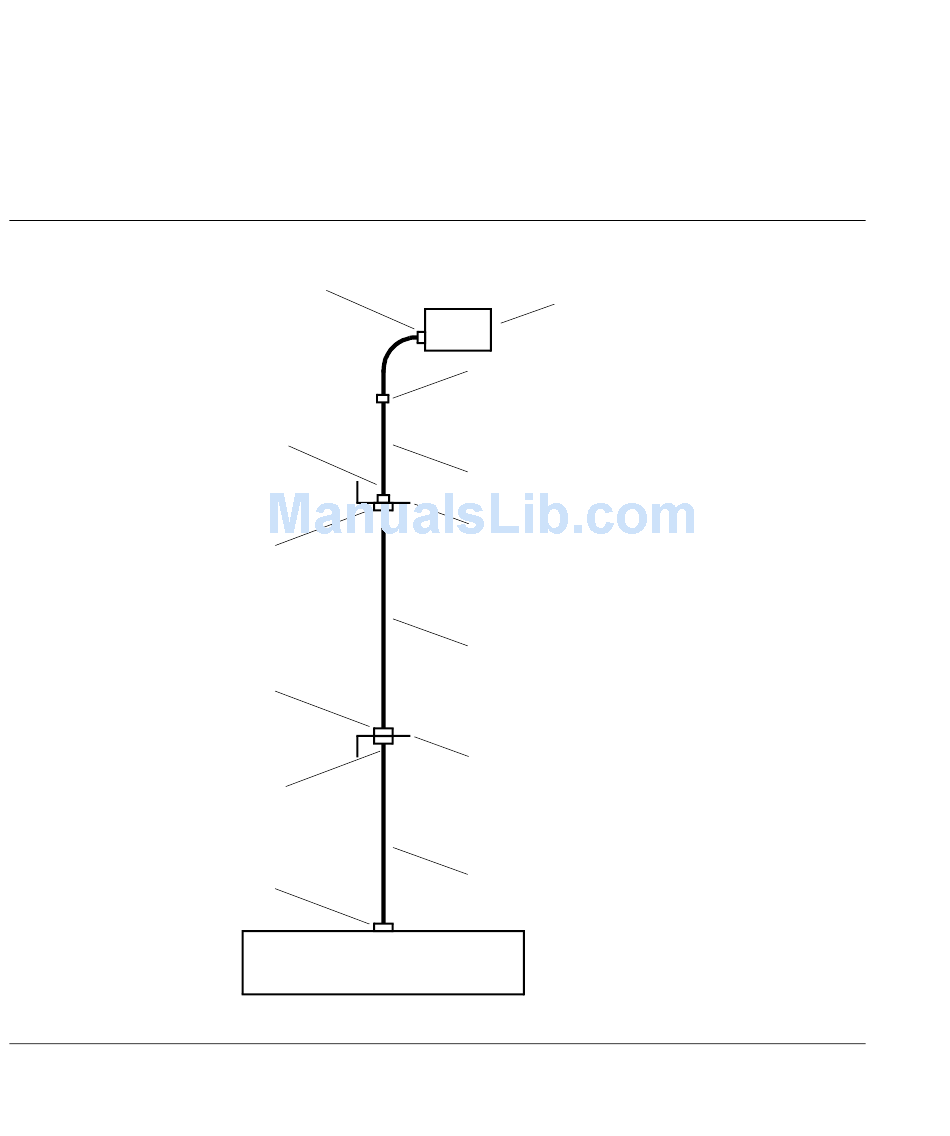

Figure 8. Window Antenna-to-Shelf Connection with Cable Kit 093-71400-20
(Attached to cable)
SMA Connector
(Attached to cable)
N Connector
(Attached to cable)
N Connector
(Attached to cable)
N Connector
(Attached to cable)
TNC Connector
(Attached to cable)
30
TimeSource 2500
S S S S S S S

Antenna-to-Shelf Distance Up to 200 Feet

Figure 8 shows window antenna-to-shelf cabling when the total
length of the cable route is between 150 feet and 200 feet. For this
configuration, use cable kit 093-71400-20.
SMA Connector
TimeSource 2500
090-71000-02
S S S S S S S
RG-316 Cable Clip(s)
128-00315-01
RG-316 Cable (10 ft)
060-00062-01
Mounting Bracket
(attach to wall adjacent to window)
070-00379-02
with N-to-SMA Adapter
121-00560-01
LMR-400 Cable (200 ft)
060-31000-20
Mounting Bracket
070-00379-02
with N-to-N Adapter
121-00548-01
LMR-240 Cable (6 ft)
060-00048-01
S S S S S S S
Antenna
090-71010-87
S S S S S
