Symmetricom TimeSource 2500 Manual page 54

S S S S S S S

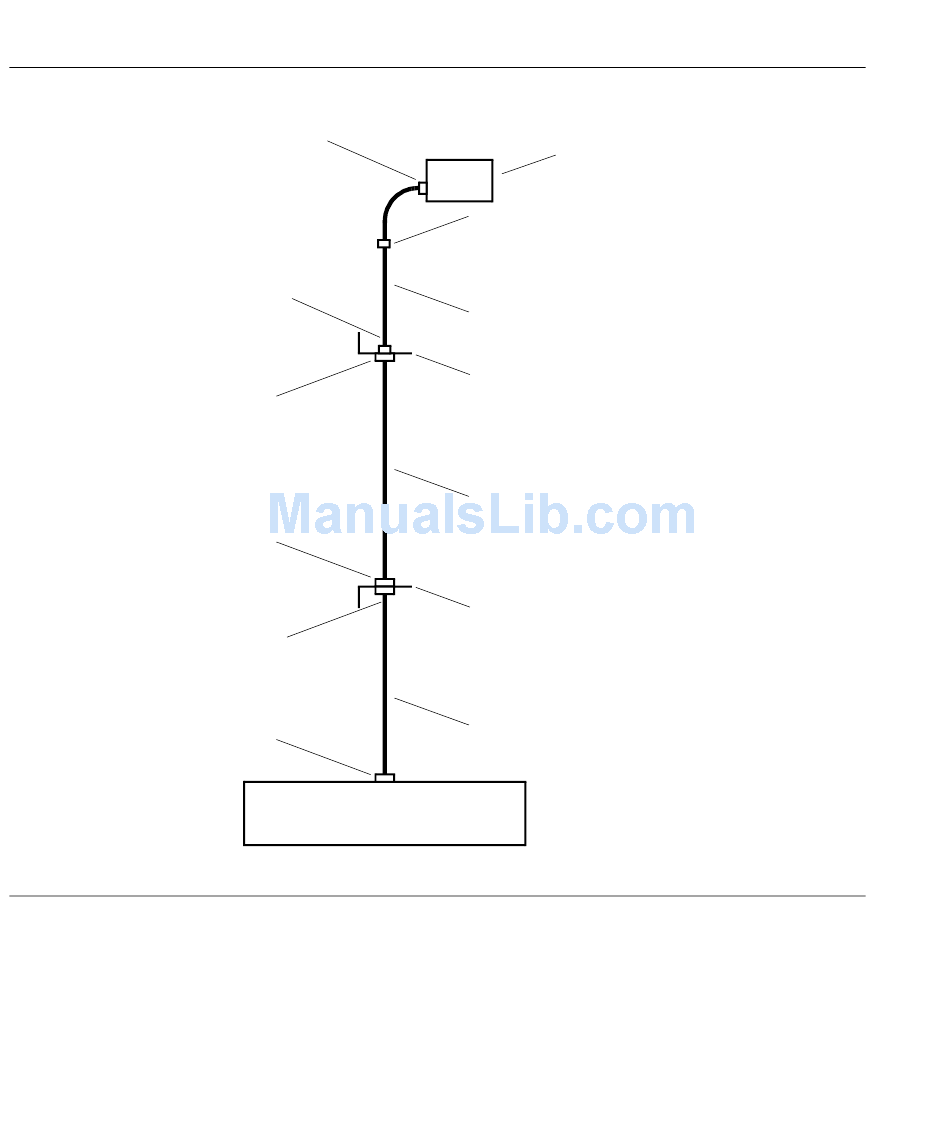

Figure 15. Window Antenna-to-Shelf Connection with Cable Kit 093-71400-15
(Attached to cable)
SMA Connector
(Attached to cable)
N Connector
(Attached to cable)
N Connector
(Attached to cable)
N Connector
(Attached to cable)
TNC Connector
(Attached to cable)
54
TimeSource 2500
S S S S S S S
SMA Connector
TimeSource 2500
090-71000-02
S S S S S S S
RG-316 Cable Clip(s)
128-00315-01
RG-316 Cable (10 ft)
060-00062-01
Mounting Bracket
(attach to wall adjacent to window)
070-00379-02
with N-to-SMA Adapter
121-00560-01
LMR-400 Cable (150 ft)
060-31000-15
Mounting Bracket
070-00379-02
with N-to-N Adapter
121-00548-01
LMR-240 Cable (6 ft)
060-00048-01
S S S S S S S
Antenna
090-71010-87
