Antenna-to-Shelf Distance Up to 200 Feet

Figure 12 shows antenna-to-shelf cabling when the total length of
the cable route is between 150 feet and 200 feet. For this
configuration, use cable kit 093-71401-20.

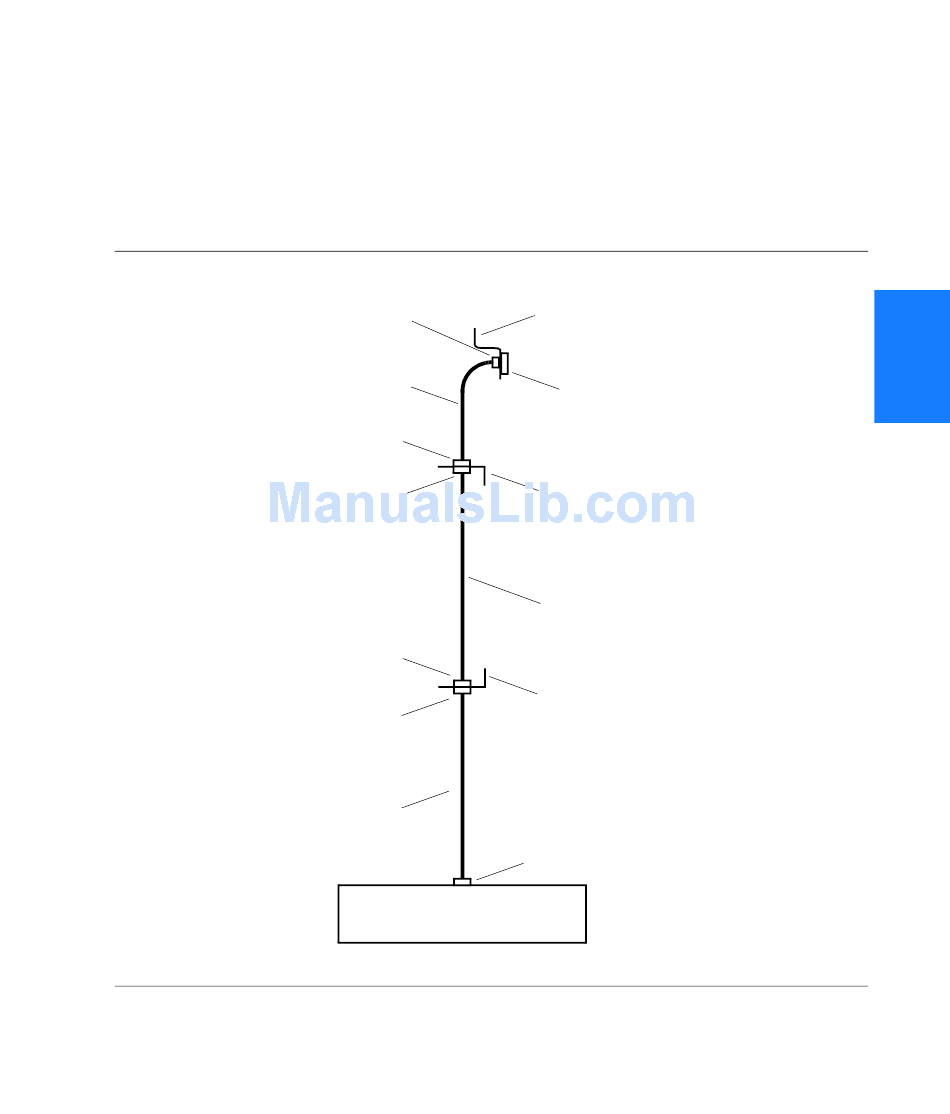

Figure 12. Antenna-to-Shelf Connection with Cable Kit 093-71401-20
(Attached to cable)
LMR-240 Cable (6 ft)
060-00048-01
(Attached to cable)
(Attached to cable)
(Attached to cable)
(Attached to cable)
LMR-240 Cable (6 ft)
060-00048-01
S S S S S S S S
TNC Connector
N Connector
N Connector
N Connector
N Connector
TimeSource 2500
090-71000-02
S S S S S S S S
Antenna Mounting Bracket
070-00383-01
Antenna
090-71010-89
Cable Mounting Bracket
(Attach to inside wall)
070-00379-02
with N-to-N Adapter
121-00548-01
LMR-400 Cable (200 ft)
060-31000-20
Cable Mounting Bracket
070-00379-02
with N-to-N Adapter
121-00548-01
TNC Connector
(Attached to cable)
Engineering & Ordering
