Antenna-To-Shelf Distance Up To 100 Feet - Symmetricom TimeSource 2500 Manual

S S S S S S S

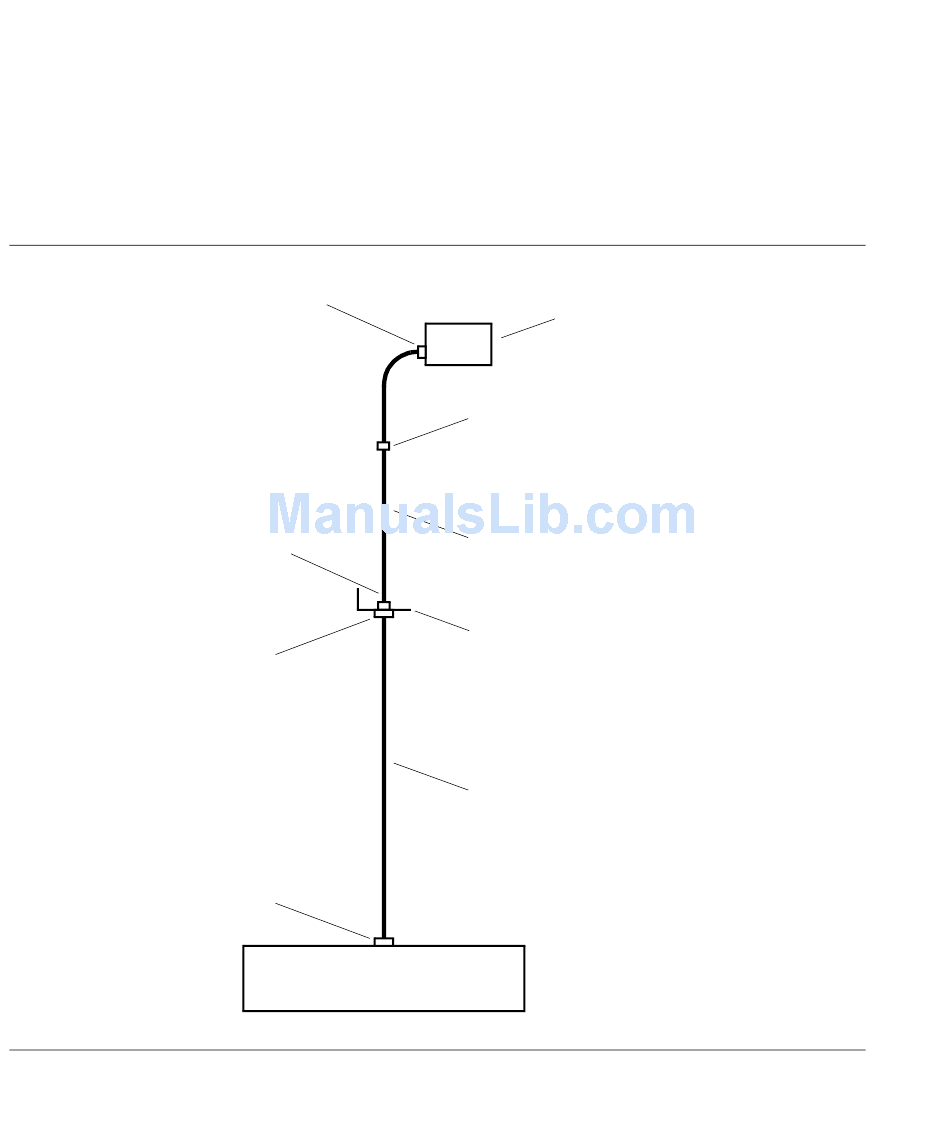

Figure 6. Window Antenna-to-Shelf Connection with Cable Kit 093-71240-10
(Attached to cable)
SMA Connector
(Attached to cable)
TNC Connector
(Attached to cable)
TNC Connector
(Attached to cable)
28
TimeSource 2500
S S S S S S S

Antenna-to-Shelf Distance Up to 100 Feet

Figure 6 shows antenna-to-shelf cabling when the total length of
the cable route is between 40 feet and 100 feet. For this
configuration, use cable kit 093-71240-10.
SMA Connector
TimeSource 2500
090-71000-02
S S S S S S S
RG-316 Cable Clip(s)
128-00315-01
RG-316 Cable (10 ft)
060-00062-01
Mounting Bracket
(attach to wall adjacent to window)
070-00379-01
with TNC-to-SMA Adapter
121-00562-01
LMR-240 Cable (100 ft)
060-00063-01
S S S S S S S
Antenna
090-71010-87
S S S S S
