Antenna-to-Shelf Distance Up to 40 Feet
Figure 5 shows antenna-to-shelf cabling when the total length of
the cable route is 40 feet or less. For this configuration, use cable
kit 093-71316-04.

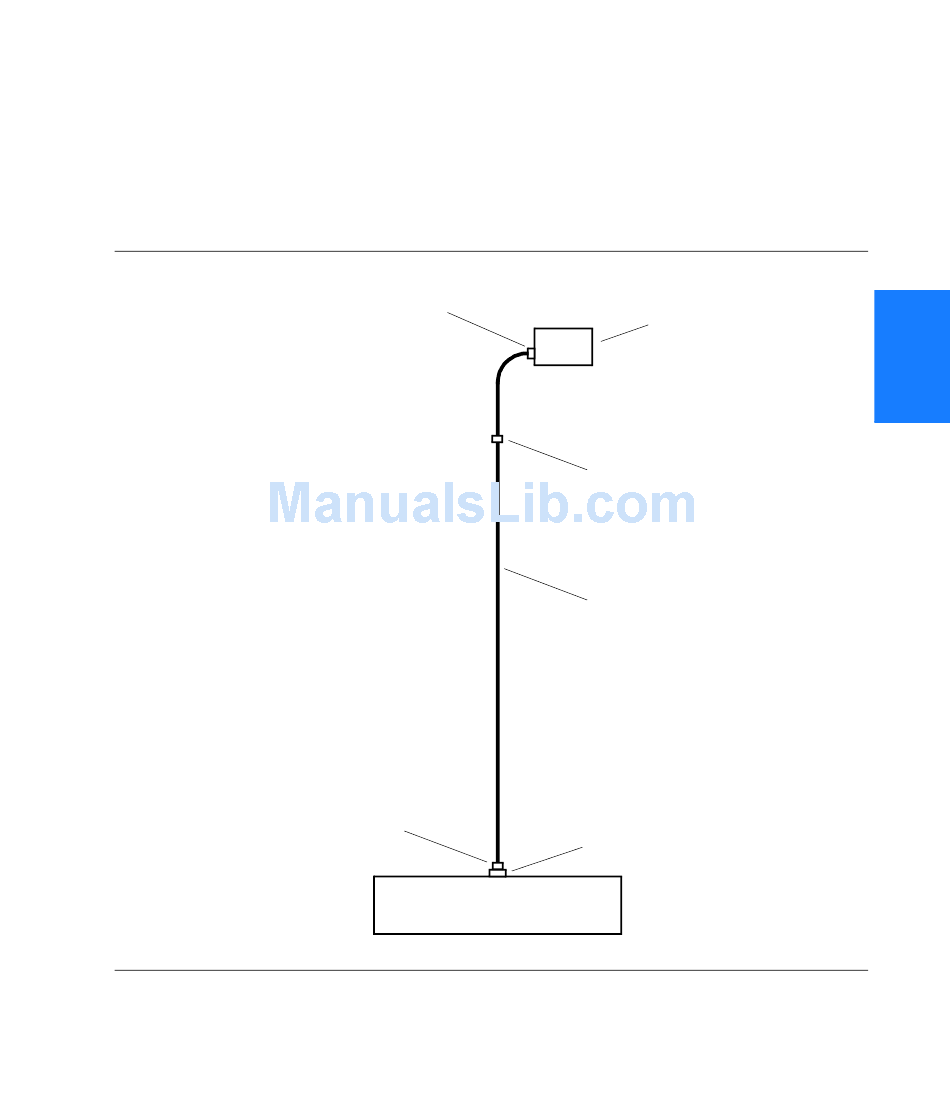

Figure 5. Window Antenna-to-Shelf Connection with Cable Kit 093-71316-04
SMA Connector
(Attached to cable)
S
S
S
S
S
S
S
S
SMA Connector
(Attached to cable)
TimeSource 2500
090-71000-02
S
S
S
S
S
S
S
S
Antenna
090-71010-87
RG-316 Cable Clip(s)
128-00315-01
RG-316 Cable (40 ft)
060-00062-02
SMA-to-TNC Adapter
121-00563-01
Engineering & Ordering
