View Input Weighting and Gear

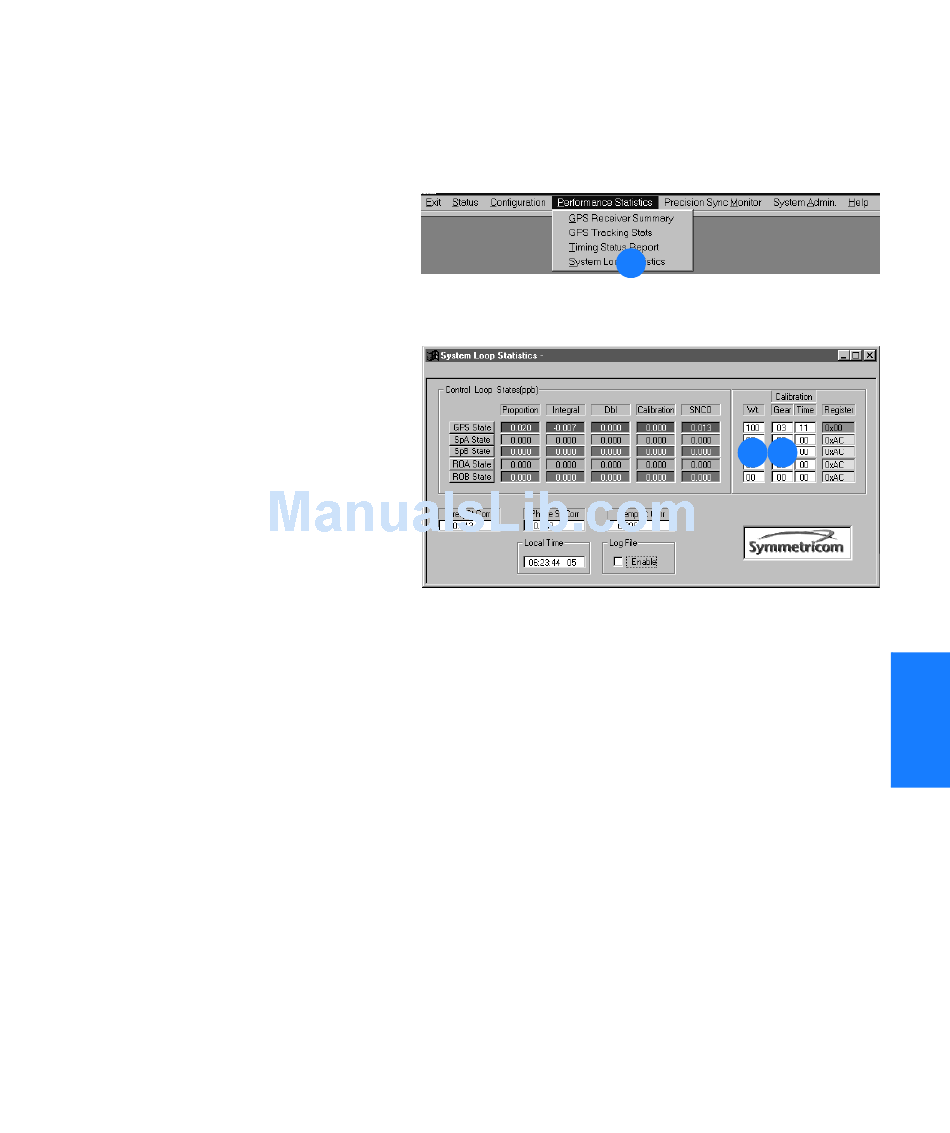

1. Select Performance Statistics >
System Loop Statistics.
2. View the weight given to each
input for BesTime ensembling
computation.
3. View the stage (gear) in the
time calculation process.
Gears 1, 2, and 3 are warm-up
processes after power-up. Gears
4, 5, and 6 indicate a settling
period when the TimeSource
2500 outputs Stratum 1 signals.
Gear 7 indicates steady-state
operation.
S S S S S S S S S S S S S S S S
1
S S S S S S S S
2 3
125
Operation
