Antenna-to-Shelf Distance Up to 100 Feet

Figure 10 shows antenna-to-shelf cabling when the total length of
the cable route is between 40 feet and 100 feet. For this
configuration, use cable kit 093-71241-10.

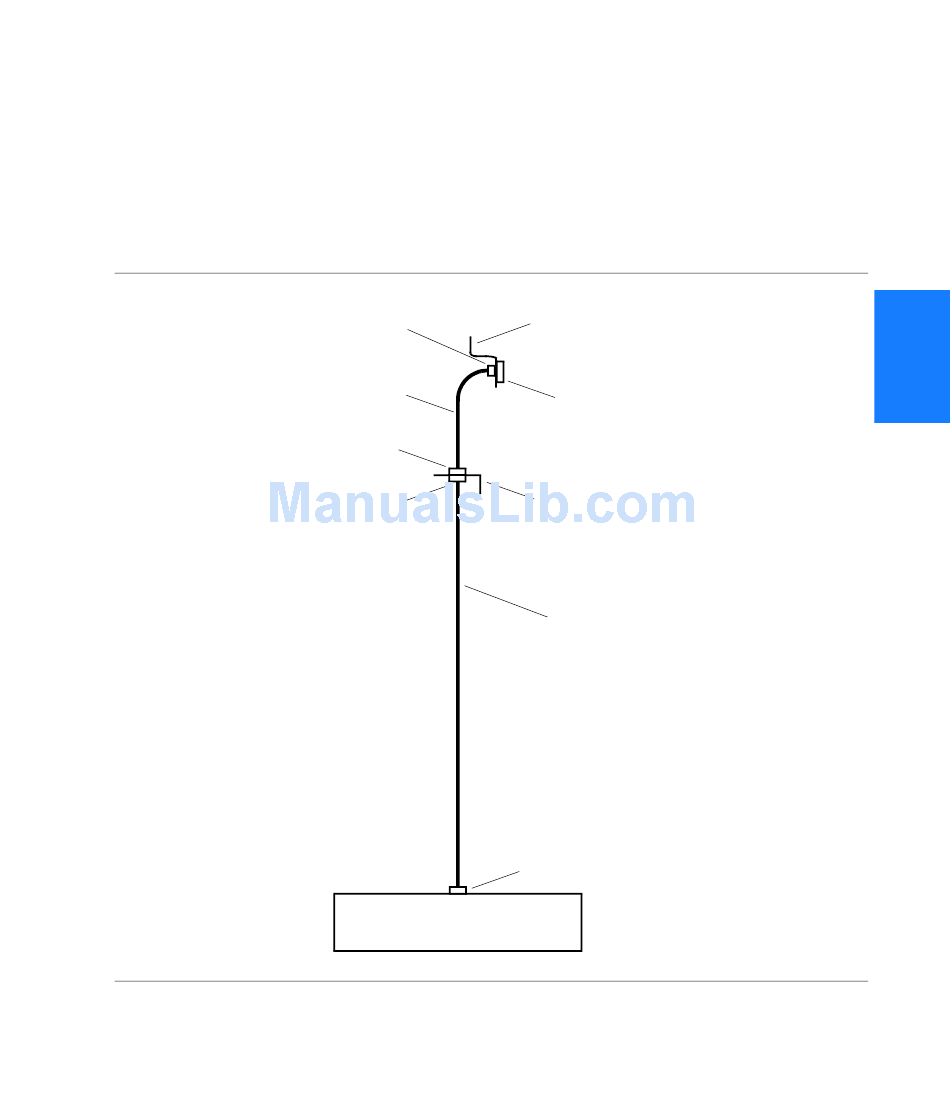

Figure 10. Antenna-to-Shelf Connection with Cable Kit 093-71241-10
TNC Connector
(Attached to cable)
LMR-240 Cable (6 ft)
060-00048-01
(Attached to cable)
TNC Connector
(Attached to cable)
S S S S S S S S
N Connector
TimeSource 2500
090-71000-02
S S S S S S S S
Antenna Mounting Bracket
070-00383-01
Antenna
090-71010-89
Cable Mounting Bracket
(Attach to inside wall)
070-00379-02
with N-to-TNC Adapter
(121-00566-01)
LMR-240 Cable (100 ft)
060-00063-01
TNC Connector
(Attached to cable)
