Wall Mounting

The TimeSource 2700 can be attached to a wall or other surface.
Attach the proper mounting ears, included with the
TimeSource 2700, as shown in Figure 7, then use appropriate
screws (not included) to attach to the chosen surface.

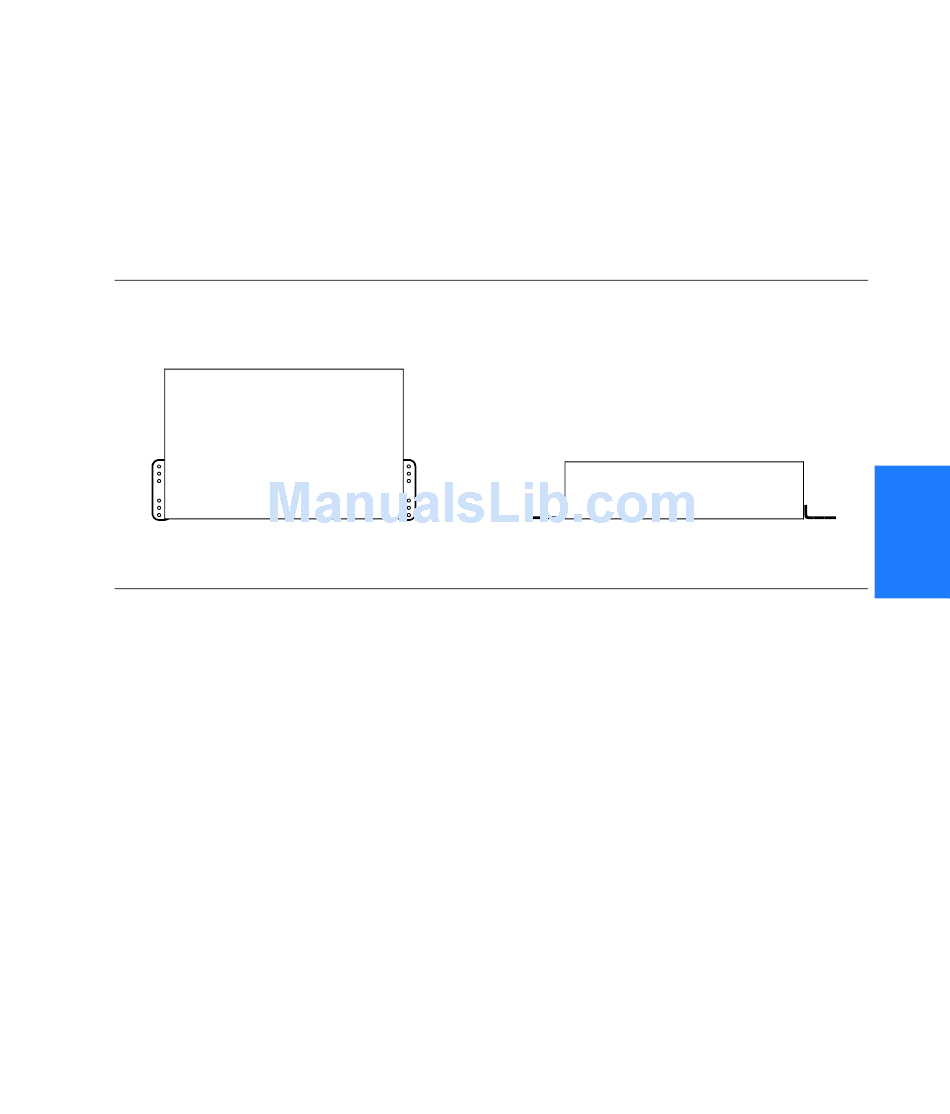

Figure 7. Wall Mounting
Rear
Top
A. Top view

Cabling

The CDMA antenna connection is on the rear of the shelf. All other
connections are made on the front of the shelf. When installing the
TimeSource 2700 in a rack with a wire-wrap panel, connections
are made at the rear of the wire-wrap panel. Figure 8 shows the
locations of the connectors on the front of the shelf, and Figure 9
shows the locations of the connectors on the rear of the wire-wrap
panel.
S S S S S S S S S S S S S S S S
Top
Front
B. Front view
S S S S S S S S
39
Installation
