CyberData 011414 Installation Quick Reference

Gooseneck Mounting
Apply RTV Silicone Sealant Around Mounting Holes and
Backside Perimeter of Backbox and Weather Shroud
Cable & Wire
Washer & Nut Create Service Loop
to J1
J1
Torx Key
Faceplate Mounting
Torx Security Screw
Cable & Wire
Create Service Loop
SIP Outdoor Intercom
1/4"
with Keypad Anchor Screw
to J1
J1
*
Torx Key
1/2" EMT
Faceplate Mounting Compression
Connector
Torx Security Screw
with
Sealing Locknut
(Sold Separately)
Ground Wire
Network Cable
Note: To mount the intercom, use methods
compliant with local electrical codes.
Note: More installation and mounting
information is illustrated in the Operations Guide.
Caution
Equipment Hazard: Do not use an electric
or power screwdriver to fasten the face plate
and PCB assembly to the gang box. To prevent
over-torque damage to the gasket, do not apply
GENERAL ALERT
more than 10 inch-pounds force. Over-torquing
will cause the gasket to tear, risk moisture intrusion,
and effectively void the manufacturer's warranty.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/
Warranty Information:
© 2020, CyberData Corporation, ALL RIGHTS RESERVED
Carriage Bolt, Washer & Nut
(3 Sets Included)
Weather Shroud
(Sold Separately)
Backbox Apply RTV Silicone Sealant Around Mounting Holes and
Backside Perimeter of Backbox and Weather Shroud
1/4" Concrete
Wall Anchor
Gooseneck
Weather Shroud
(Sold Separately)
Network and Ground Wires in
Through Side Conduit Hole
Remove Hole Plug Assembly then
Install It onto * Rear Conduit Hole
1/2" EMT
Conduit
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931336B Quick Reference
Installation Quick Reference

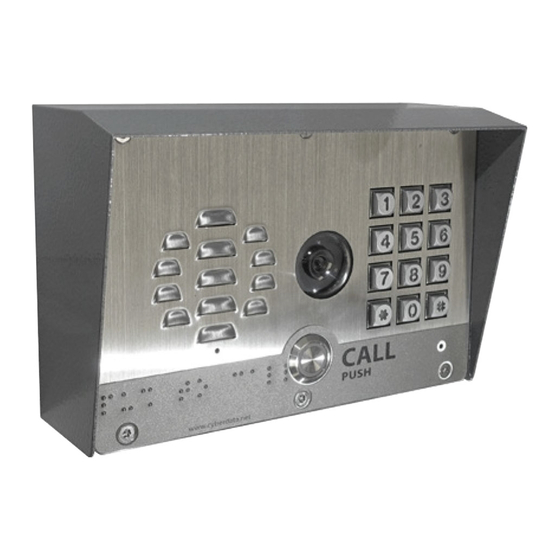

SIP h.264 Video Outdoor Intercom with Keypad
The IP Endpoint Company
011414
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
*More installation and mounting
802.3af Compliant Ethernet Switch
information is available in the
Operations Guide.
SIP h.264 Video Outdoor Intercom with Keypad
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011414
• Create a plan for the locations of your Keypad Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
Accessory Kit
(1) Assembly
Carriage Bolt Bolts
Carriage Bolt Nuts
Accessory Kit Security Torx MS
Carriage Bolt Washers
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
IP Phone IP PBX Server
Optional Accessories
(1) 531085* Hole
(1) 1/2-inch EMT
plug assembly
compression
connector with extra
sealing locknut
Mounting Component
Security Torx Key
931336B © 2020, CyberData Corporation, ALL RIGHTS RESERVED
