CyberData 011414 Installation Quick Reference

Connecting the Keypad Intercom (Service Loop Routing)
Ground Cable Installation
Route Cable inside
the Custom Enclosure to
Ground Lug Creates Service Loop
Faceplate &
PCB Assembly
Ground Cable
is Not Provided
Nut to Ground Lug
Inside the Custom Enclosure
Faceplate Mounting
Screw (6x)
Securing the Intercom
Caution
Equipment Hazard: Do not use an electric
or power screwdriver to fasten the face plate
and PCB assembly to the gang box. To prevent
over-torque damage to the gasket, do not apply
GENERAL ALERT
more than 10 inch-pounds force. Over-torquing
will cause the gasket to tear, risk moisture intrusion,
and effectively void the manufacturer's warranty.
Note: To mount the intercom, use methods
compliant with local electrical codes.
Note: More installation and mounting
information is illustrated in the Operations Guide.
Torx Screws
Torx Key
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
Network Cable Installation
Network Cable
is Not Provided
Custom
Enclosure
Faceplate &
PCB Assembly
Faceplate Mounting
Screw (6x)
Custom Enclosure
Network cable
and ground wire
(Not Provided)
Faceplate &
PCB Assembly
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931336A Quick Reference
Route Cable inside
the Custom Enclosure to
Creates Service Loop
The IP Endpoint Company
Custom
Enclosure
Typical System Installation
*More installation and mounting
information is available in the
Operations Guide.
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
http://www.cyberdata.net/voip/011414/
Custom
Enclosure • Create a plan for the locations of your Keypad Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Keypad Intercom Parts
(1) Intercom Assembly
Mounting Component Security Torx Key
Quick Reference
Installation Quick Reference

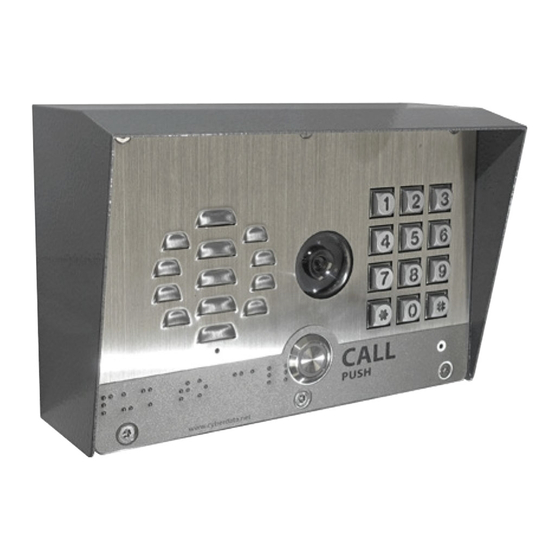

SIP-enabled h.264 Video Outdoor Intercom with Keypad
011414
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Switch
Video Outdoor Intercoms with Keypad IP Phone
Carriage Bolt Bolts
Carriage Bolt Nuts
Carriage Bolt Washers
931336A © 2017, CyberData Corporation, ALL RIGHTS RESERVED
IP PBX Server
Accessories
531085B Hole Plug Assembly
Spacer for Half-inch Set Screw Connector
Accessory Kit
Accessory Kit Security Torx MS
