CyberData 011478 Installation Quick Reference

Gooseneck Mounting
Apply RTV Silicone Sealant Around Mounting Holes and
Backside Perimeter of Backbox and Weather Shroud
Cable & Wire
Washer & Nut Create Service Loop
to J1
J1
Torx Key
Backbox
Faceplate Mounting
Torx Security Screw
Cable & Wire
Create Service Loop
SIP Outdoor Video Intercom 1/4"
RFID Access Control Endpoint
Anchor Screw
to J1
J1
*
Torx Key
1/2" EMT
Faceplate Mounting
Compression
Connector
Torx Security Screw
with
Sealing Locknut
(Sold Separately)
Ground Wire
1/2" EMT
Network Cable
Conduit
*More installation and mounting information
is illustrated in the Operations Guide.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/
Warranty Information:
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
Carriage Bolt, Washer & Nut
(3 Sets Included)
Weather Shroud
(Sold Separately)
Apply RTV Silicone Sealant Around Mounting Holes and
Backside Perimeter of Backbox and Weather Shroud
1/4" Concrete
Wall Anchor
Gooseneck
Weather Shroud
(Sold Separately)
Network and Ground Wires in
Through Side Conduit Hole
Remove Hole Plug Assembly then
Install It onto Rear Conduit Hole
*
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931665A Quick Reference
Installation Quick Reference

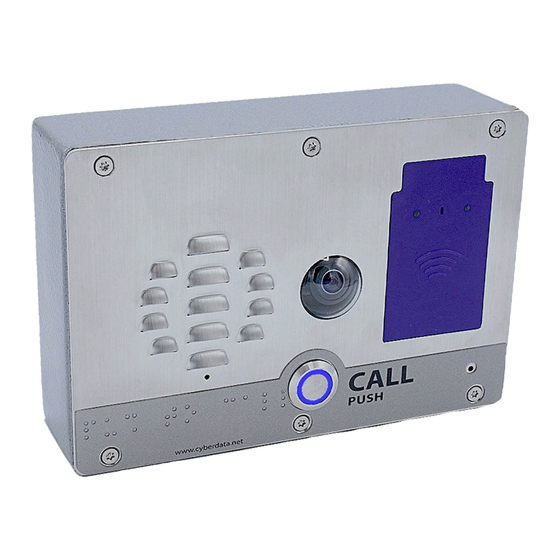

SIP Outdoor Video Intercom with RFID
The IP Endpoint Company
Secure Access Control Endpoint
011478
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
*More installation and mounting 802.3af Compliant Ethernet Switch
options are available in the
Operations Guide.
Endpoint Endpoint Endpoint
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011478
• Create a plan for the locations of your devices.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
Accessory Kit
(1) Assembly
Carriage Bolt Bolts
Carriage Bolt Nuts
Accessory Kit Security Torx MS
Carriage Bolt Washers
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
IP Phone IP PBX Server
Optional Accessories
(1) 531085* Hole
(1) 1/2-inch EMT
plug assembly
compression
connector with extra
sealing locknut
Mounting Component
Security Torx Key
931665A © 2019, CyberData Corporation, ALL RIGHTS RESERVED
