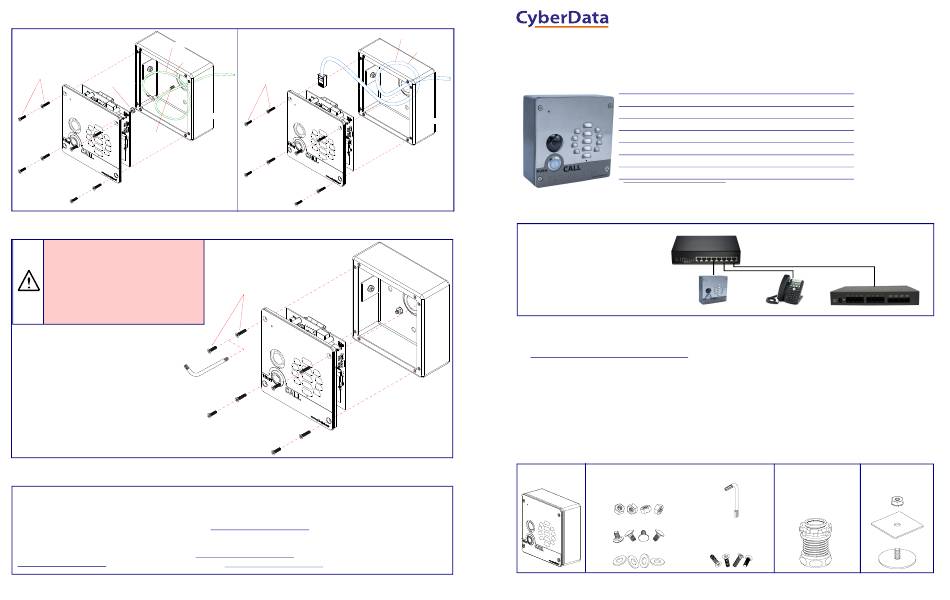

CyberData 011410 Installation Quick Reference

Connecting the Intercom (Service Loop Routing)
Ground Cable Installation
Service Loop
Ground
Faceplate Wire
Mounting Screws
Flat Head Phillips or
Security Torx
Nut
Ground Lug
Faceplate
Assembly
Securing the Intercom
Caution
Equipment Hazard: Do not use an electric
or power screwdriver to fasten the faceplate
and PCB assembly to the gang box. To prevent
over-torque damage to the gasket, do not
apply more than 10 inch-pounds force.
GENERAL ALERT
Over-torquing will cause the gasket to tear,
risk moisture intrusion, and effectively voi
the manufacturer's warranty.
Note: To mount the intercom, use methods
compliant with local electrical codes.
Note: More installation and mounting
information is illustrated in the Operations
Guide.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/
Warranty Information:
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
Network Cable Installation
Faceplate
Mounting Screws
Flat Head Phillips or
Security Torx
Gang Box
Faceplate
Assembly
Faceplate
Mounting Screws
Flat Head Phillips or
Security Torx
Torx Key
Faceplate
Assembly
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931332C
The IP Endpoint Company
Service Loop
Network
Cable
Gang Box
Typical System Installation
*More installation and mounting
information is available in the
Operations Guide.
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011410
• Create a plan for the locations of your Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
Gang Box
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Assembly
Quick Reference Quick Reference
Installation Quick Reference

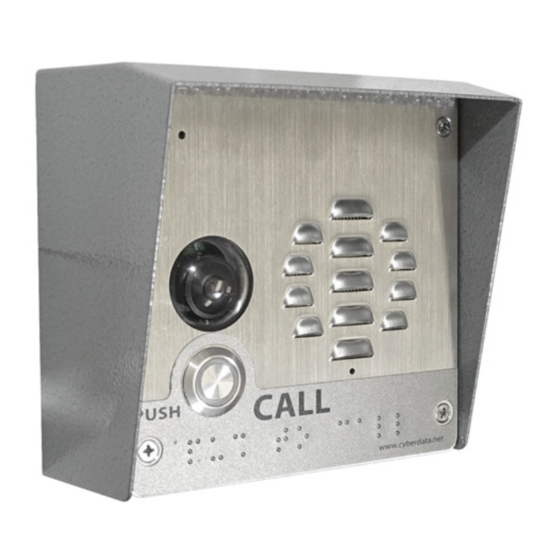

SIP-enabled h.264 Video Outdoor Intercom
011410
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Switch
Video Outdoor Intercom
Accessory Kit
Optional Accessories
(for gooseneck mounting)
(4) Carriage bolt nuts
(4) Carriage bolts Mounting Component
Security Torx Key
(4) Carriage bolt washers (4) Security Torx Screws
931332C © 2019, CyberData Corporation, ALL RIGHTS RESERVED
IP Phone IP PBX Server
Optional Accessories
(1) 531085* Hole
(1) 1/2-inch EMT
plug assembly
compression
connector with extra
sealing locknut
