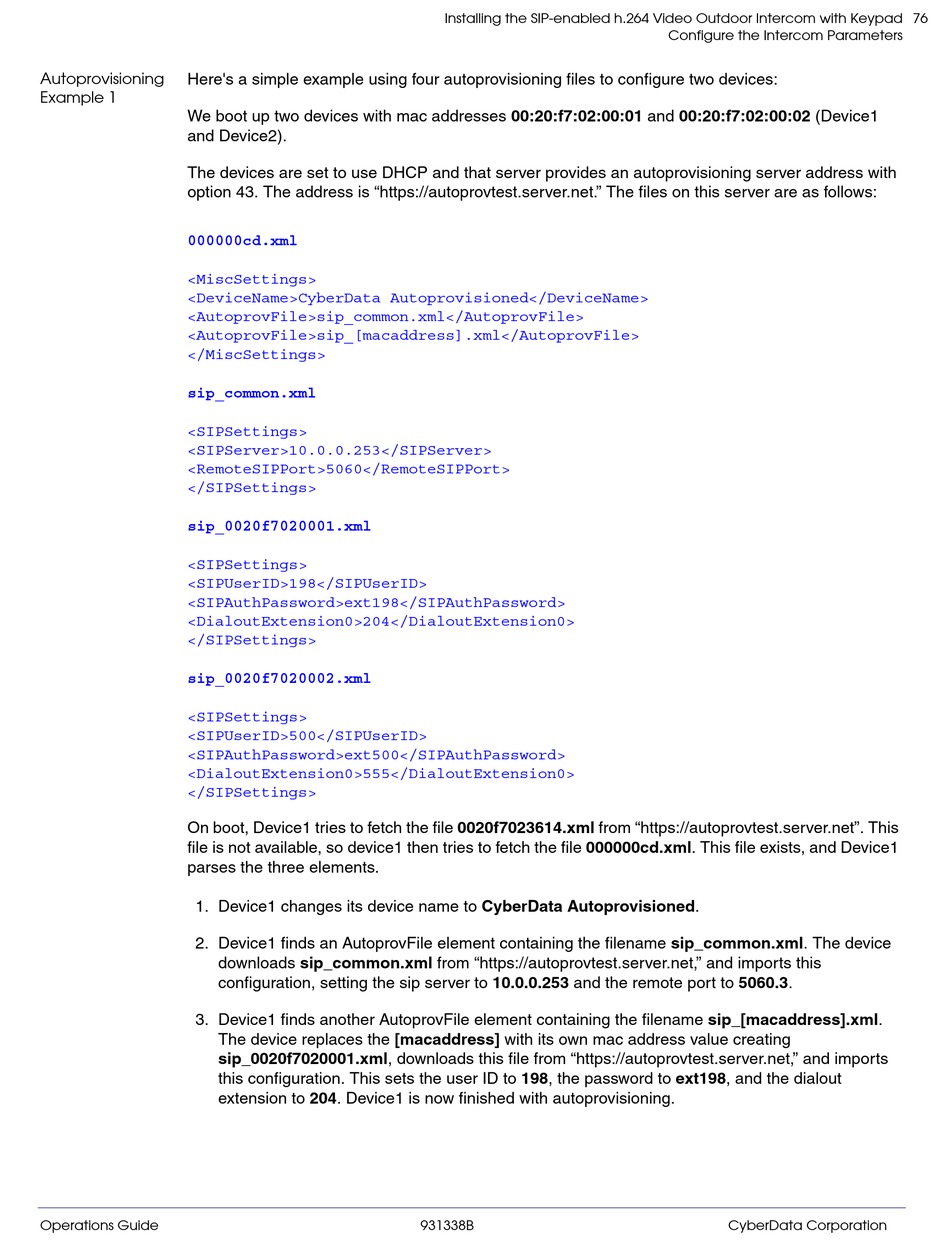

CyberData 011414 Operation Manual page 83

Autoprovisioning Here's a simple example using four autoprovisioning files to configure two devices:
Example 1
We boot up two devices with mac addresses 00:20:f7:02:00:01 and 00:20:f7:02:00:02 (Device1
and Device2).
The devices are set to use DHCP and that server provides an autoprovisioning server address with
option 43. The address is "https://autoprovtest.server.net." The files on this server are as follows:
000000cd.xml
<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
<AutoprovFile>sip_common.xml</AutoprovFile>
<AutoprovFile>sip_[macaddress].xml</AutoprovFile>
</MiscSettings>
sip_common.xml
<SIPSettings>
<SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>
sip_0020f7020001.xml
<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>
sip_0020f7020002.xml
<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>
On boot, Device1 tries to fetch the file 0020f7023614.xml from "https://autoprovtest.server.net". This
file is not available, so device1 then tries to fetch the file 000000cd.xml. This file exists, and Device1
parses the three elements.
1. Device1 changes its device name to CyberData Autoprovisioned.
2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device
3. Device1 finds another AutoprovFile element containing the filename sip_[macaddress].xml.
Operations Guide
downloads sip_common.xml from "https://autoprovtest.server.net," and imports this
configuration, setting the sip server to 10.0.0.253 and the remote port to 5060.3.
The device replaces the [macaddress] with its own mac address value creating
sip_0020f7020001.xml, downloads this file from "https://autoprovtest.server.net," and imports
this configuration. This sets the user ID to 198, the password to ext198, and the dialout
extension to 204. Device1 is now finished with autoprovisioning.
