Addresses Form; Addresses Table - RuggedCom RuggedBackbone RX5000 User Manual

4. Basic Network Configuration
The name for this routable logical interface
Auto-Cost Bandwidth (kbps)
Synopsis: unsigned long integer
This value is used in auto-cost calculations for this routable logical interface in kbps

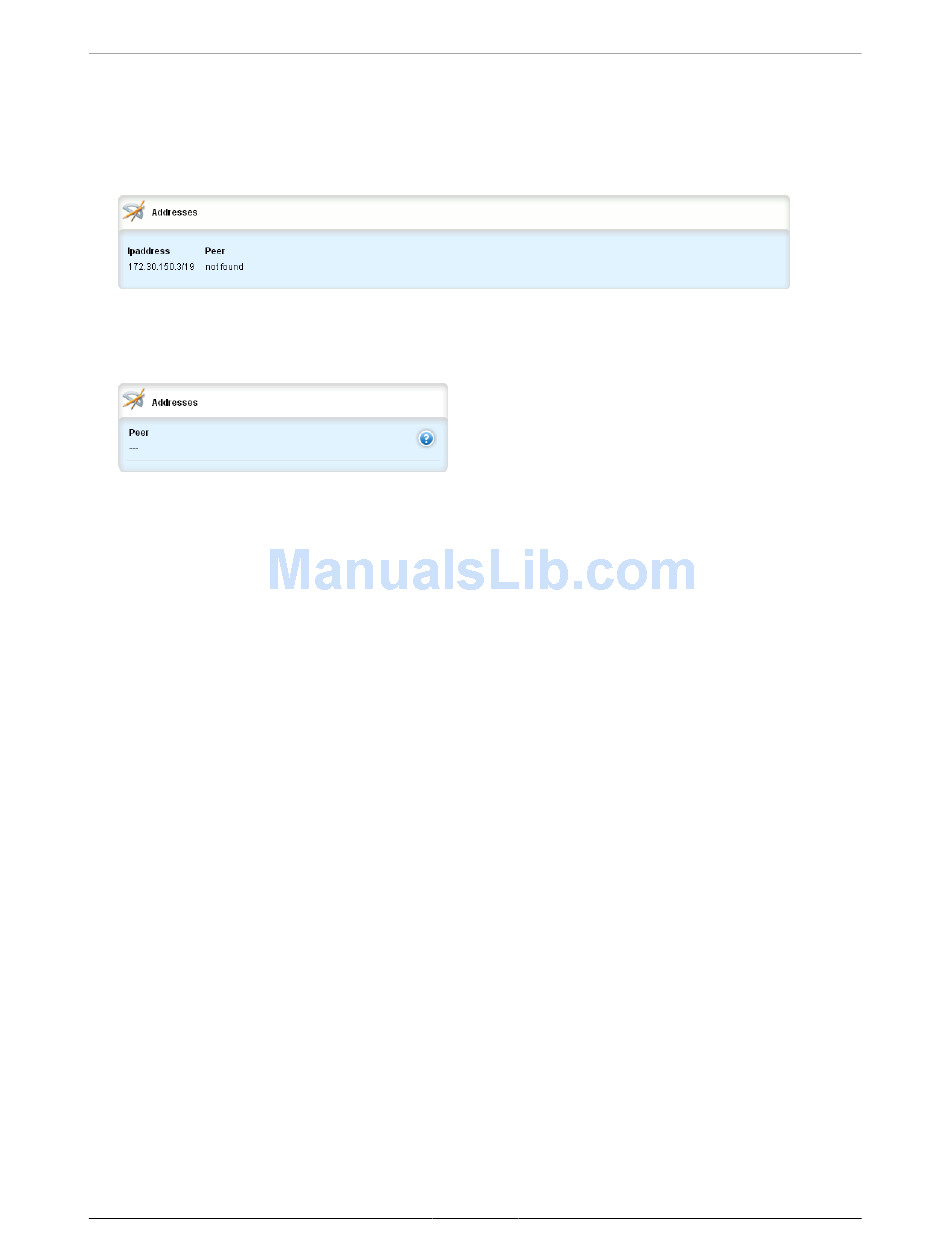

Figure 4.7. Addresses table
The path to the Addresses table is ip/{interface}/ipv4. The Addresses table provides a summary of which
IP addresses are configured.
Figure 4.8. Addresses form
The path to the Addresses form is ip/{interface}/ipv4/{address}.
ipaddress
Synopsis: IPv4 address and prefix in CIDR notation
The IPv4/Prefix (xxx.xxx.xxx.xxx/xx).
peer
Synopsis: IPv4 address in dotted-decimal notation
The peer IPv4 Address (xxx.xxx.xxx.xxx, PPP link only).
ROX™ v2.2 User Guide 73 RuggedBackbone™ RX5000
