1. The ROX™ Web Interface
Exit Transaction
Exit from configuration editing mode. If there are pending changes, a prompt will be presented to
verify the discarding of all pending changes.

1.3.1. Configuring Tables Using Key Settings Forms

Much of the information in ROX™ is organized into tables. Each table is indexed or sorted by a key,
which is a piece of information such as a name, address, or other variable. For example, a Chassis
Hardware table is indexed by slot name (with the slot name being the key) and a DNS Server table is
indexed by IP address (with the IP address being the key). Key information can be added using the key
settings forms. To add server information to a DNS server table, for example, add the server address
to the key settings form and this information will appear in the DNS server table.

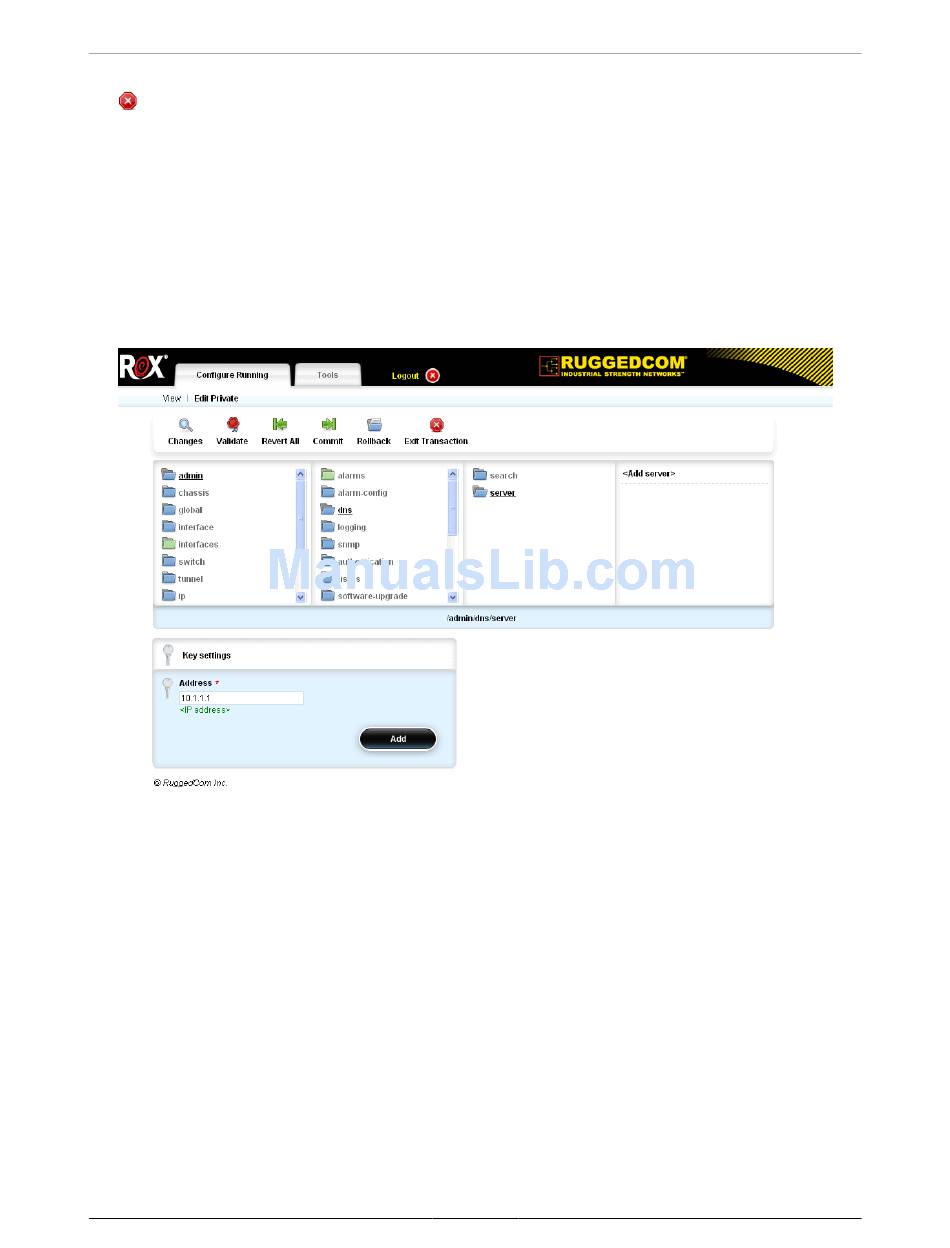

Figure 1.5. Adding Key Information
To add key information to a table, go into the Edit Private mode and enter the information into the
key settings form. Click the Commit button. When you have finished making all changes, click the Exit
Transaction button to return to the View mode.
