17. Ethernet Statistics
17. Ethernet Statistics
ROX™ provides the following features for gathering and reporting Ethernet statistics:
• Viewing basic Ethernet statistics.
• Viewing and clearing detailed Ethernet statistics.
• Configuring RMON History control.
• Viewing collected RMON History samples.
• Configuring RMON Alarms.
• Configuring RMON Events.
• Viewing collected RMON Event logs.
The Ethernet Statistics menus are accessible from the main menu. The path to these menus is
interfaces/switch and then clicking on any of the linked submenus from lm1/1 to lm1/14.

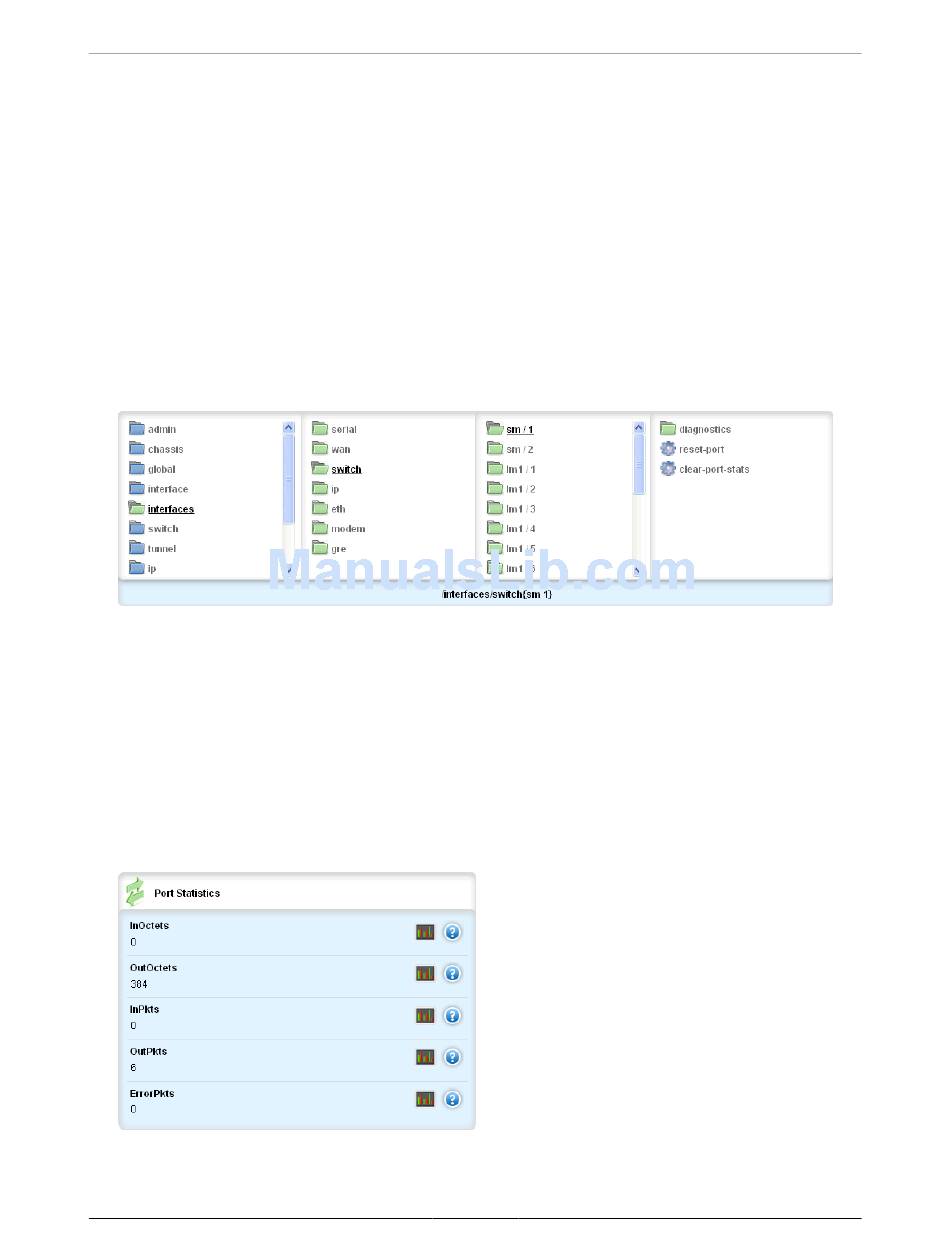

Figure 17.1. Ethernet Port Statistics Menu
17.1. Viewing Ethernet Statistics
This table provides basic Ethernet statistics information which is reset periodically, every few seconds.
This traffic view is useful when the origin and destination of a traffic flow need to be determined.
17.2. Viewing Ethernet Port Statistics
Ethernet port statistics provide a detailed view of the traffic. This is useful when the exact source of
error or traffic mix needs to be determined.
To display the ethernet port statistics forms, navigate to interfaces/switch/{line module}
Figure 17.2. Port Statistics Form
ROX™ v2.2 User Guide
171
RuggedBackbone™ RX5000
