35. Firewall

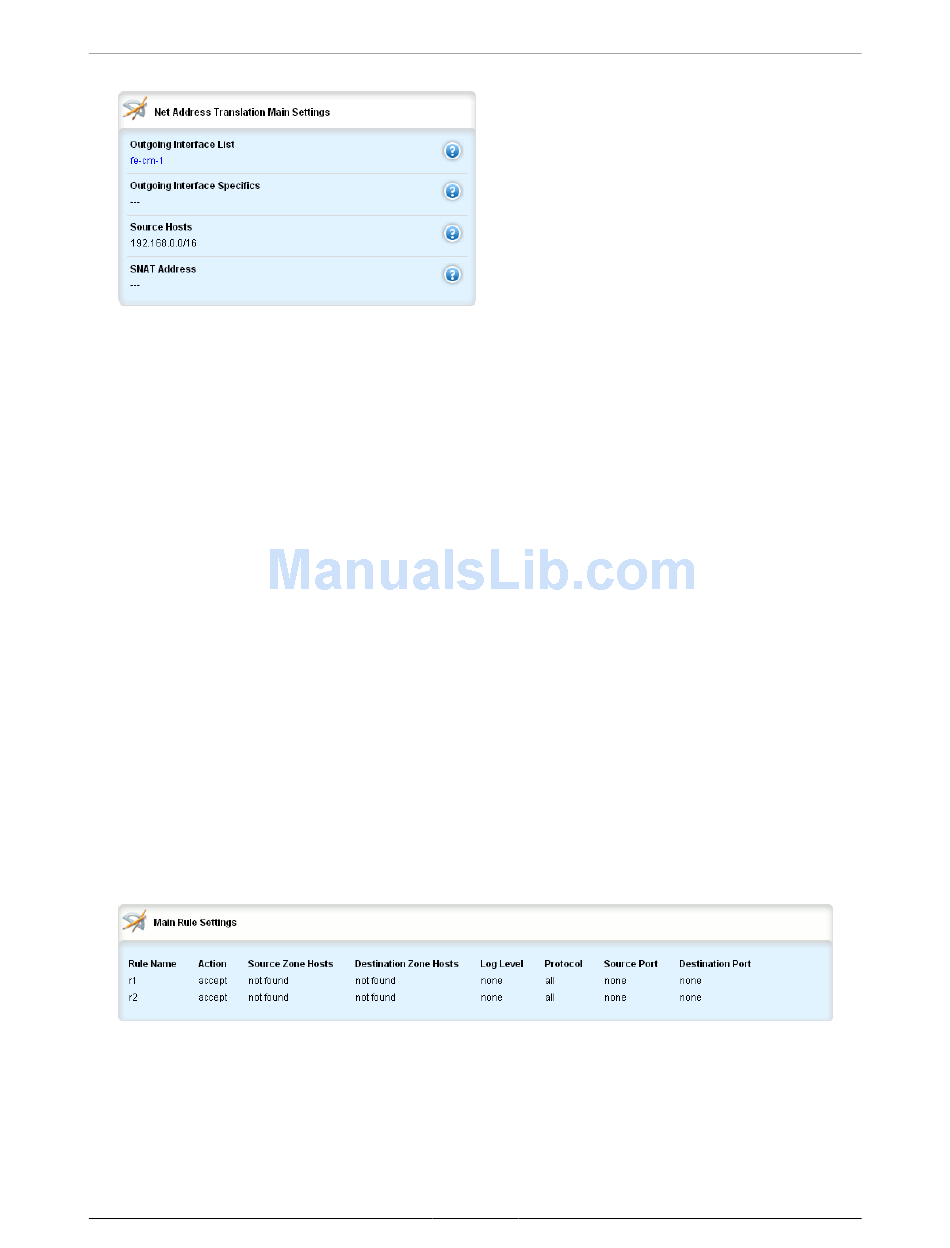

Figure 35.23. Net Address Translation Main Settings form
Masquerading substitutes a single IP address for an entire internal network
Masq Entry Name
Synopsis: string
A name for this masquerading configuration entry
Outgoing Interface List
Synopsis: string
An outgoing interfacelist - usually the internet interface
Outgoing Interface Specifics
Synopsis: string
(Optional) An outgoing interface list - specific destinations IP for the out-interface
Source Hosts
Synopsis: string
Subnet range or comma-separated list of hosts (IPs)
SNAT Address
Synopsis: string
(Optional) By specifying an address here, SNAT will be used and this will be the source address
description
Synopsis: string
(Optional) The description string for this masq entry

35.5.9. Rules

Figure 35.24. Main Rule Settings table
ROX™ v2.2 User Guide 386 RuggedBackbone™ RX5000
