35. Firewall

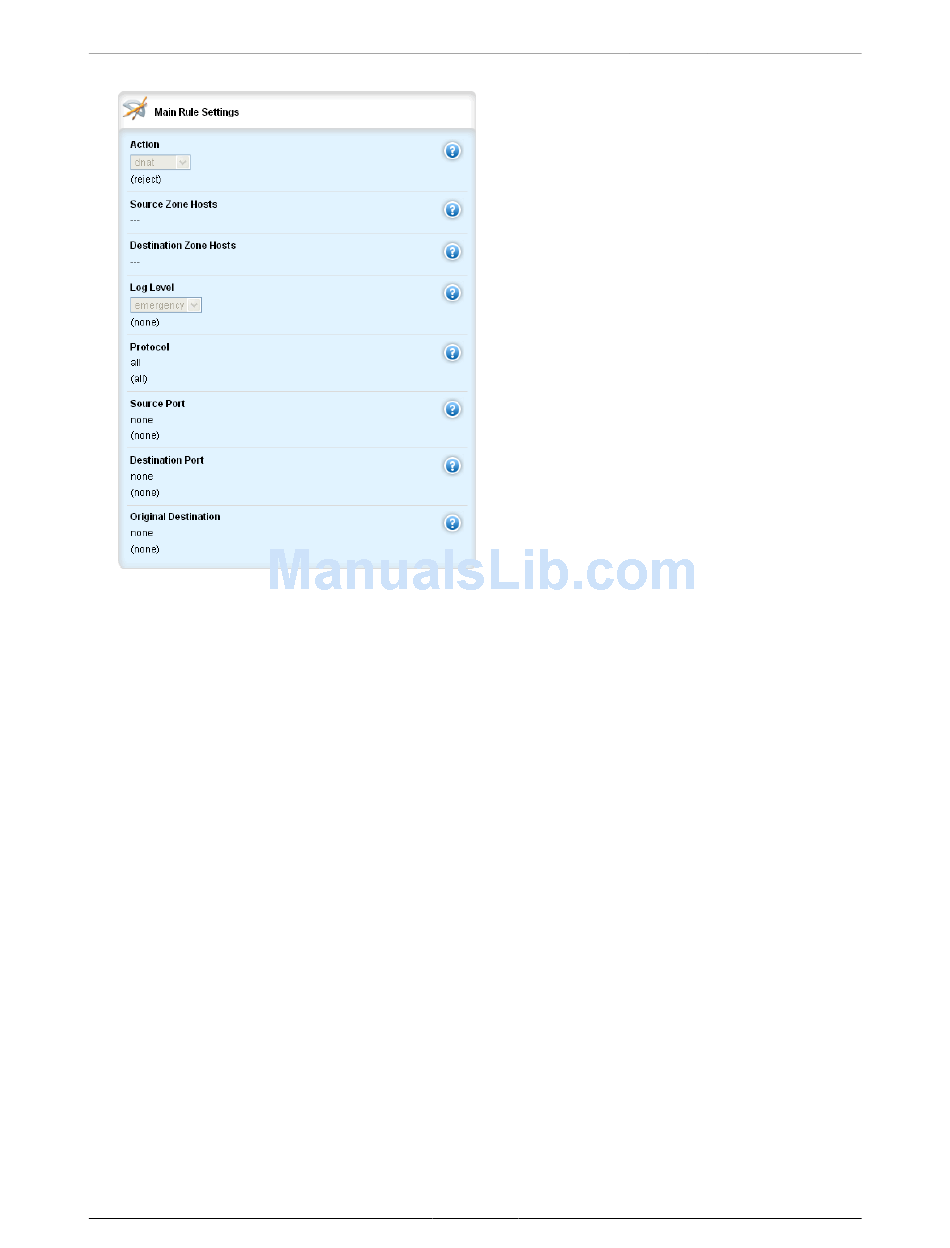

Figure 35.25. Main Rule Settings form
Rules are to establish exceptions to the default policies. This table lists exceptions to the default policies
for certain types of traffic, sources or destinations. The chosen action will be applied to packets matching
the chosen criteria instead of the default.
Rule Name
Synopsis: string
Enter a unique name that identifies this rule.
Action
Synopsis: string - one of the following keywords { dnat, dnat-, redirect, continue, reject, drop,
accept }
Default: reject
The final action to take on incoming packets matching this rule.
Destination Zone Hosts
Synopsis: string
(Optional) Add comma-separated host IPs to the destination-zone - may include :port for DNAT
or REDIRECT
Log Level
Synopsis: string - one of the following keywords { emergency, alert, critical, error, warning,
notice, info, debug, none }
Default: none
(Optional) Whether or not logging will take place and at which logging level.
Protocol
Synopsis: string
Synopsis: string - one of the following keywords { all, icmp, udp, tcp }
ROX™ v2.2 User Guide 387 RuggedBackbone™ RX5000
