30. Tunnelling

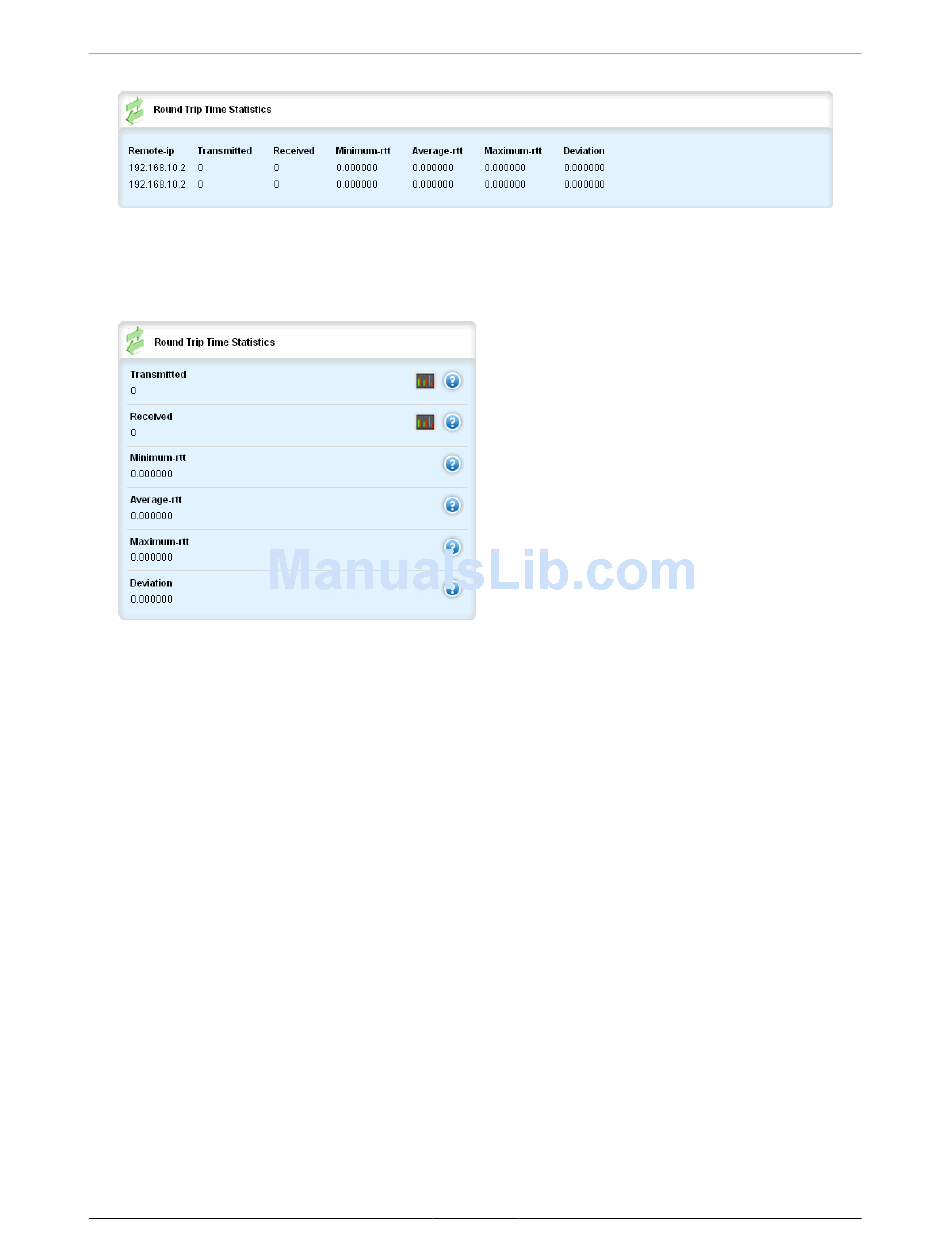

Figure 30.45. Round Trip Time Statistics table
The Round Trip Time Statistics table reflects the measured RTT to each remote daemon. The minimum,
average, maximum and standard deviation of times is presented. Entries with a large difference between
the Transmitted and Received fields indicate potential problems.
Figure 30.46. Round Trip Time Statistics form
remote-ip
Synopsis: IPv4 address in dotted-decimal notation
IP address of remote goose daemon
transmitted
Synopsis: unsigned integer
The number of beacon frames transmitted over the tunnel
received
Synopsis: unsigned integer
The number of beacon frames transmitted over the tunnel
minimum-rtt
Synopsis: A string
The Minimum Beacon Round-Trip-Time
average-rtt
Synopsis: A string
The Average Beacon Round-Trip-Time
maximum-rtt
Synopsis: A string
The Maximum Beacon Round-Trip-Time
deviation
Synopsis: A string
