Spanning Tree Parameters; Spanning Tree Parameter Form - RuggedCom RuggedBackbone RX5000 User Manual

25. Spanning Tree

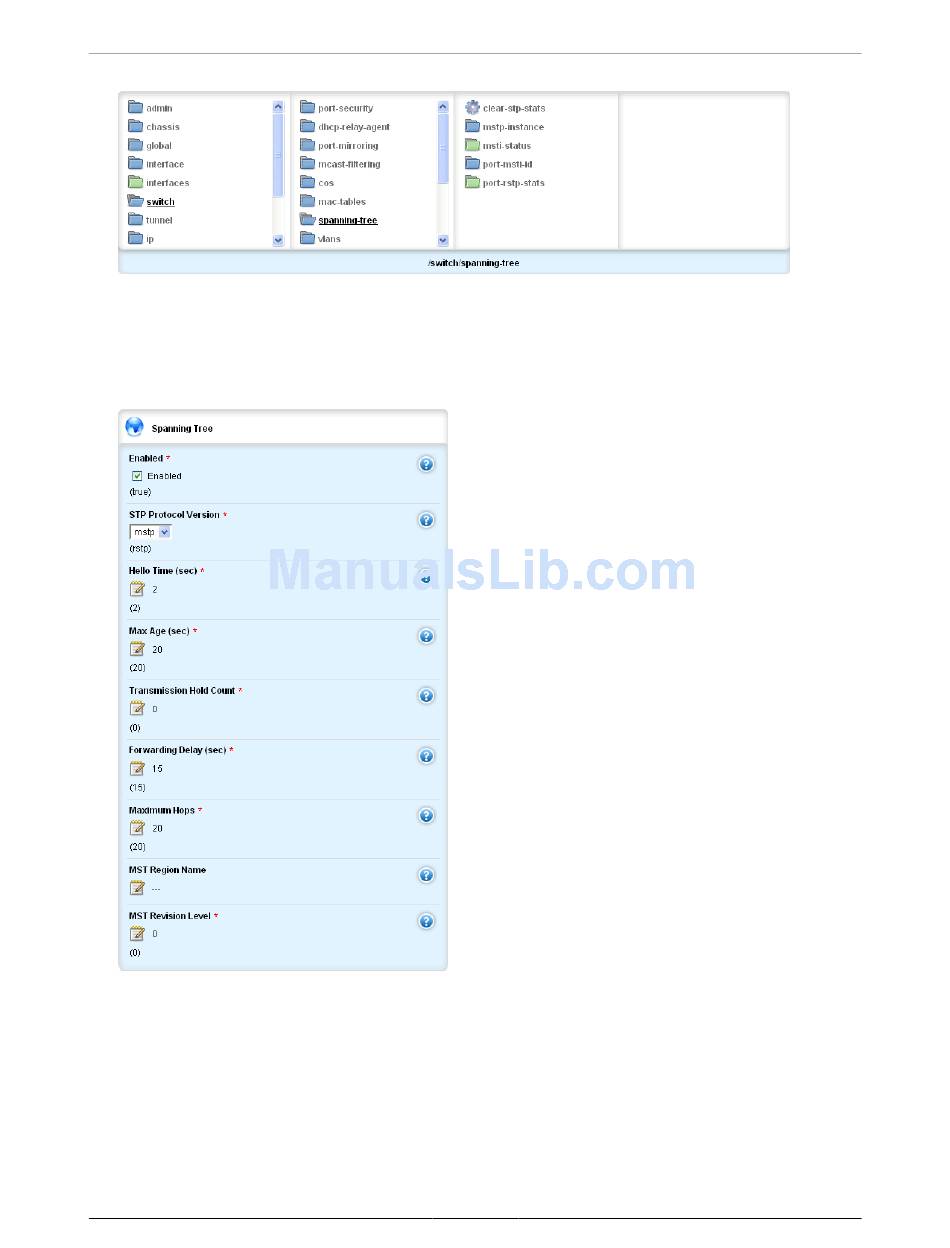

Figure 25.6. Spanning Tree menu

25.4.1. Spanning Tree Parameters

The Spanning Tree parameter form at the top-level Spanning Tree menu configures parameters
applicable to RSTP and MSTP over the whole bridge.
Figure 25.7. Spanning Tree Parameter form
Enabled
Synopsis: boolean
Default: true
Enables STP/RSTP/MSTP for the bridge globally. Note that STP/RSTP/MSTP is enabled on a port
when it is enabled globally and along with enabling per port setting.
ROX™ v2.2 User Guide 243 RuggedBackbone™ RX5000
