22. Multicast Filtering
The Class Of Service that is assigned to the multicast group frames.

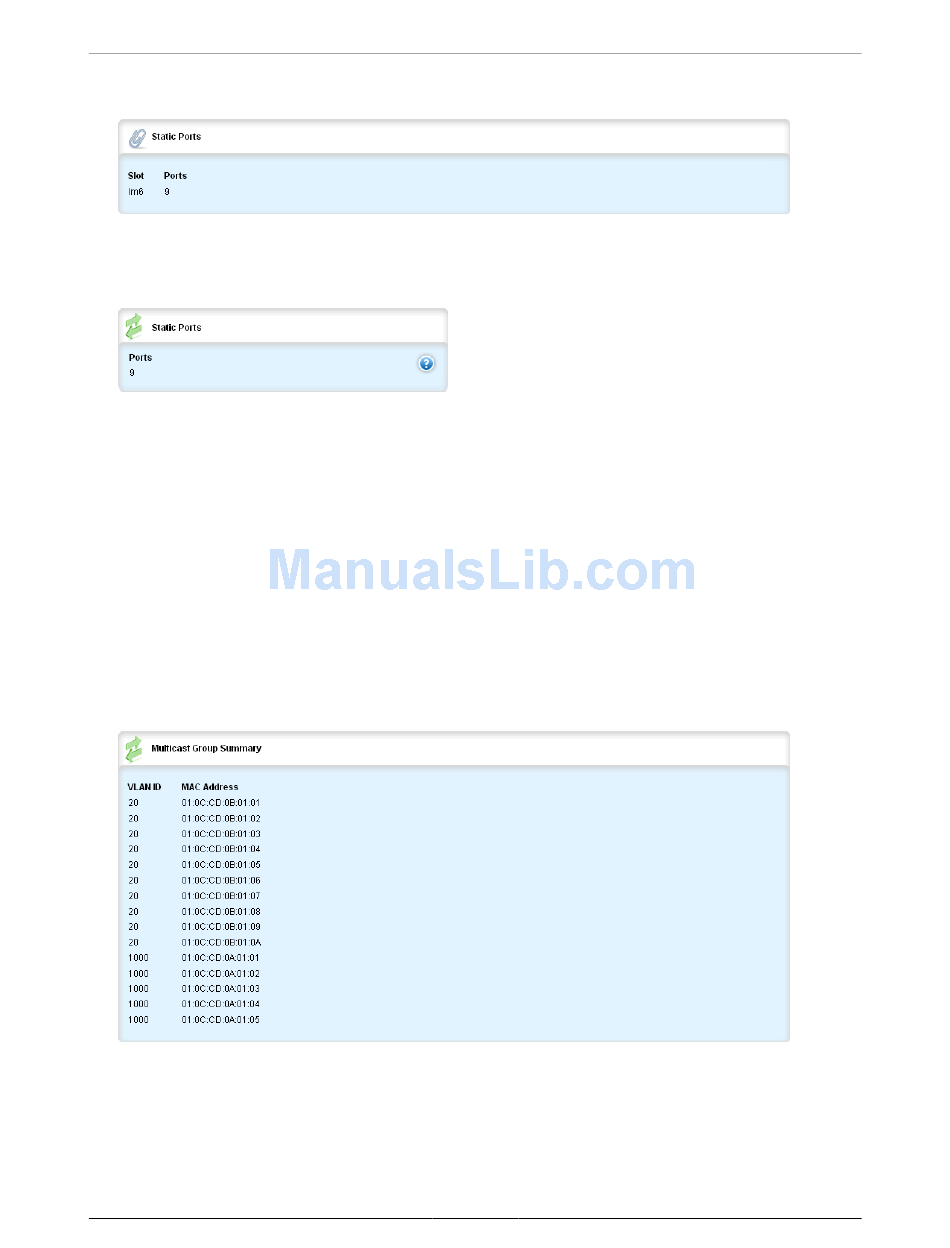

Figure 22.10. Static Ports table
If data is configured, the path to this menu will be switch/mcast-filtering/mcast-group-summary, then
clicking on one of the linked submenus and then clicking on static-ports.
Figure 22.11. Static Ports form
If data is configured, the path to this menu will be switch/mcast-filtering/mcast-group-summary then
clicking on one of the linked submenus, then clicking on static-ports and then on a linked submenu.
Static-ports are egress ports that have been assigned to a particular multicast MAC address in the
static-mcast-table menu.
Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Ports
Synopsis: A string
The selected ports on the module installed in the indicated slot.
22.3.2.1. Multicast Group Summary
Figure 22.12. Multicast Group Summary table
The path to this table is switch/mcast-filtering/mcast-group-summary.
VLAN ID
Synopsis: integer
