Ppp Interfaces And Link Failover - RuggedCom RuggedBackbone RX5000 User Manual

13. PPP Users

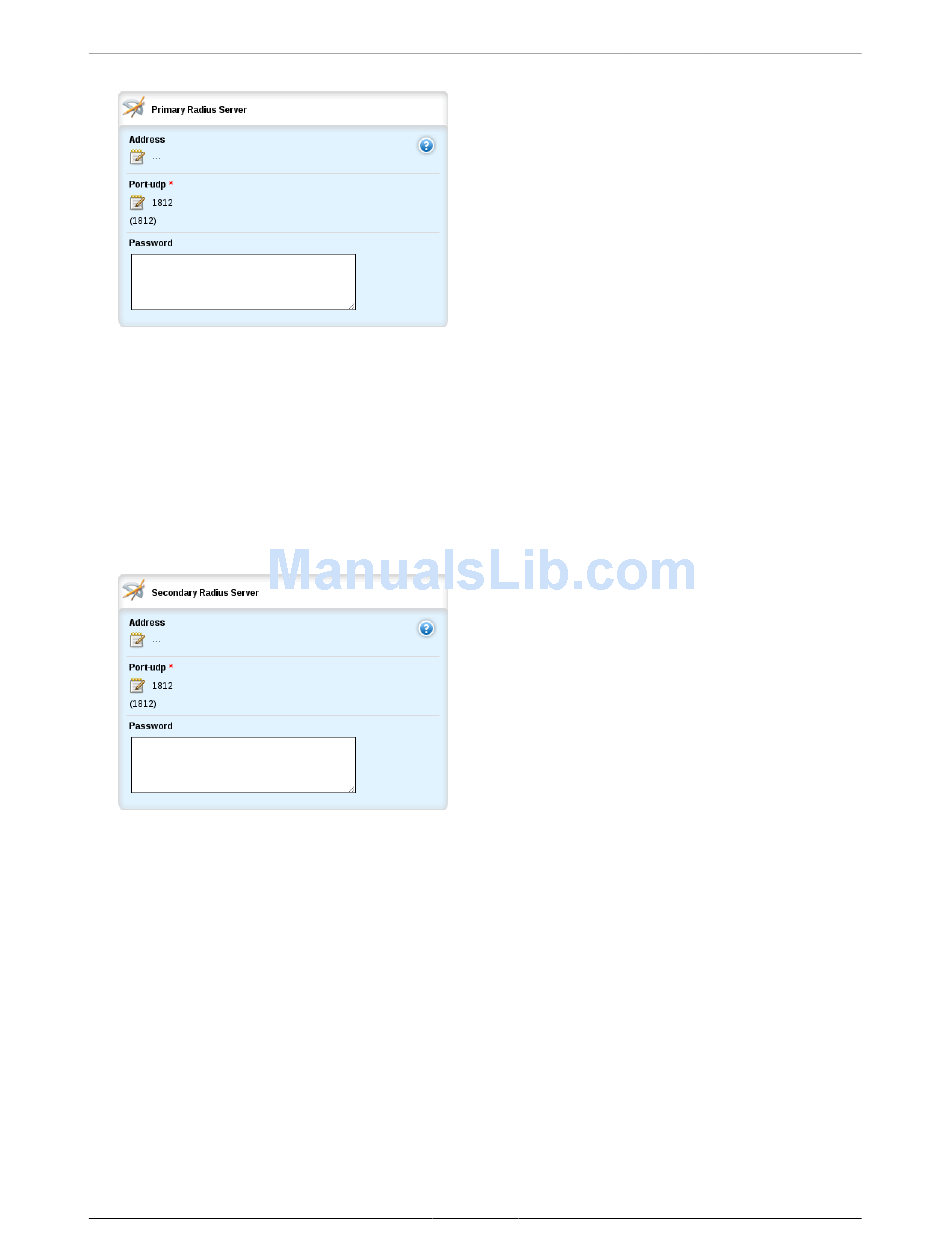

Figure 13.6. PPP Primary Radius Server form
address
Synopsis: IPv4 address in dotted-decimal notation
The IPv4 address of the server
port-udp
Synopsis: integer
Default: 1812
password
Synopsis: "AES CFB128"-encrypted string
Figure 13.7. PPP Secondary Radius Server form
address
Synopsis: IPv4 address in dotted-decimal notation
The IPv4 address of the server
port-udp
Synopsis: integer
Default: 1812
password
Synopsis: "AES CFB128"-encrypted string

13.3. PPP Interfaces and Link Failover

Link failover provides an easily configured means of raising a backup link upon the failure of a
designated main link. A PPP interface can be specified as the backup link for a designate main link. For
more information on link failover, see
ROX™ v2.2 User Guide
Chapter 38, Link Failover.
136 RuggedBackbone™ RX5000
