32. Static Routing

32. Static Routing

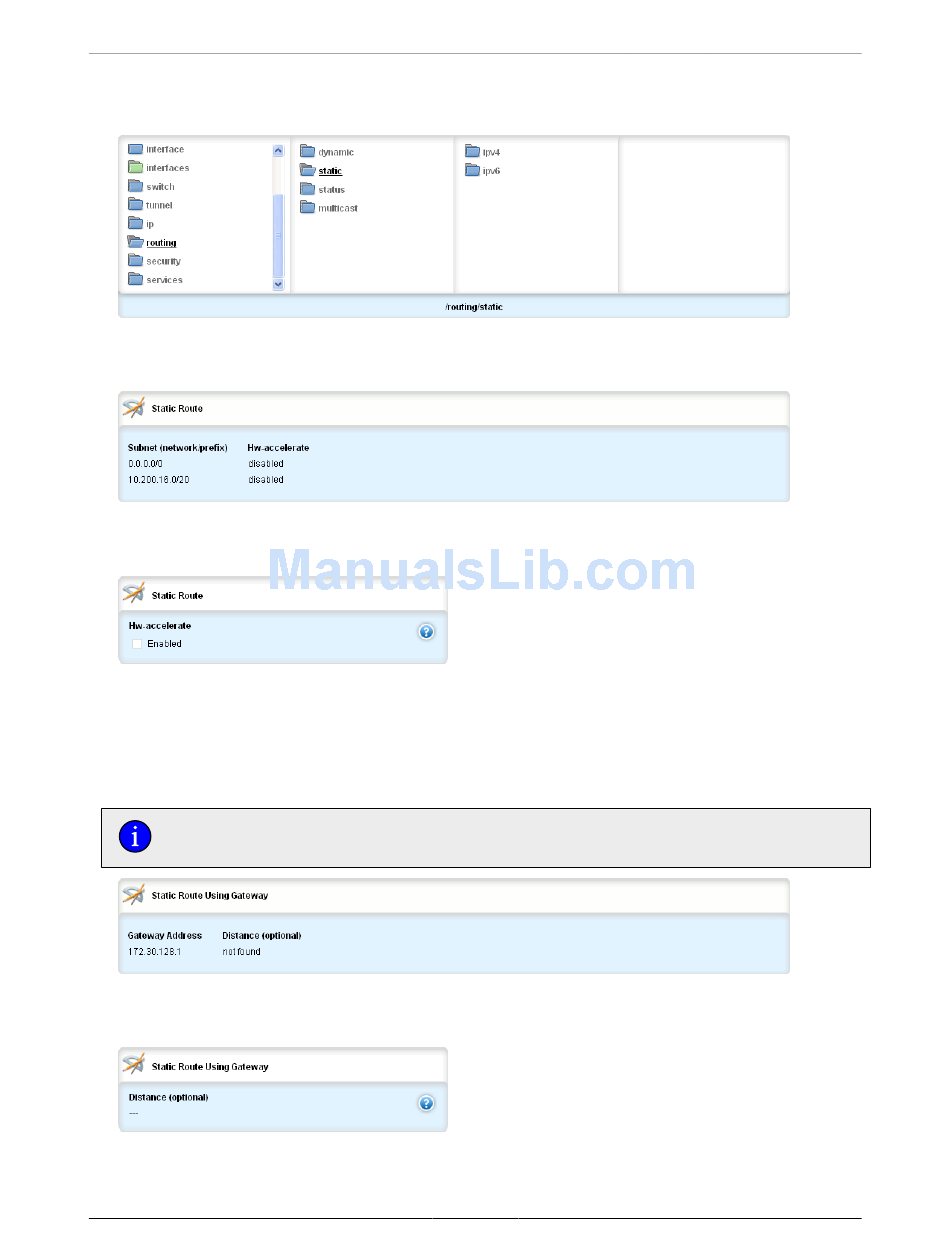

Figure 32.1. Static Menu
The Static menu is accessible from the main menu under routing. The path to this menu is routing/static.
Figure 32.2. Static Route table
The path to the Static Route table is routing/static/ipv4.
Figure 32.3. Static Route form
The path to the Static Route form is routing/static/ipv4/{route}.
hw-accelerate
If the static unicast route can be hardware accelerated, the option will be available. For a static
unicast route to be accelerated, the ingress and egress interfaces must be switched.
The Hw-accelerate field will only be visible in the form if the device has a layer 3 switch.
Figure 32.4. Static Route Using Gateway table
The path to the Static Route Using Gateway table is routing/static/ipv4/{route}/via.
Figure 32.5. Static Route Using Gateway form
ROX™ v2.2 User Guide 353 RuggedBackbone™ RX5000
