12. Chassis Management

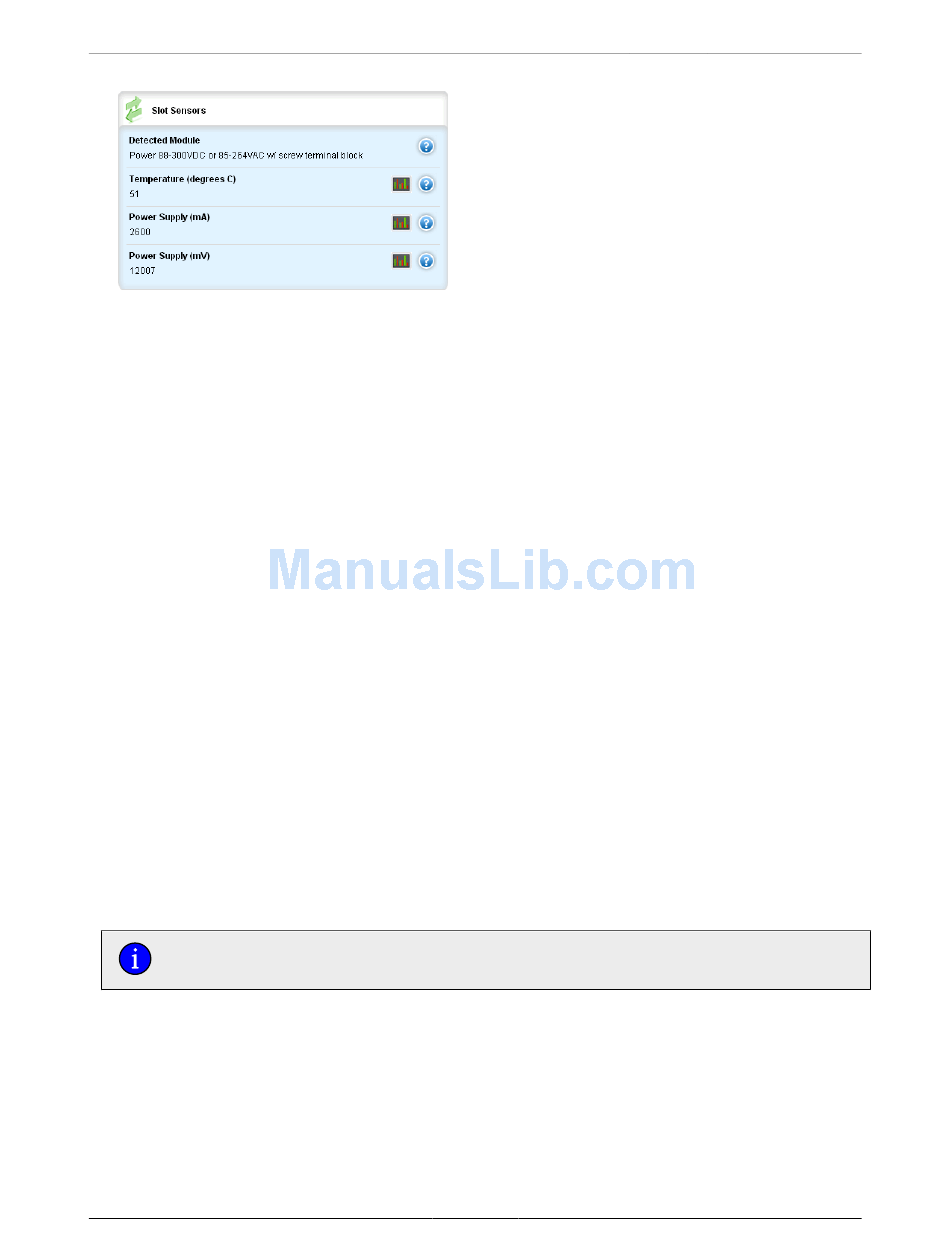

Figure 12.15. Slot Sensors form
Slot sensors contain temperature and power supply information about the installed modules.
slot
Synopsis: string - the keyword { --- }
Synopsis: string - one of the following keywords { main, pm2, pm1 }
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - one of the following keywords { em, cm }
Synopsis: string - the keyword { trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
Detected Module
Synopsis: A string
The installed module's type specifier.
Temperature (degrees C)
Synopsis: integer
The temperature, in degrees C, of the installed module. If multiple temperature sensors are present
on the board, the maximum reading is reported.
Power Supply (mA)
Synopsis: integer
The power supply current, in mA, being drawn by the installed module.
Power Supply (mV)
Synopsis: integer
The power supply voltage, in mV, seen by the installed module.

12.7. Module Configuration

For information on adding and replacing line modules, see
Replacing Line
ROX™ v2.2 User Guide
Modules.
