30. Tunnelling
Modpgroup.
There are right side and left side IPsec forms. The forms for each side are used for IPSec system
settings on each side. The forms are the same for both sides, so only the left side forms are shown here.

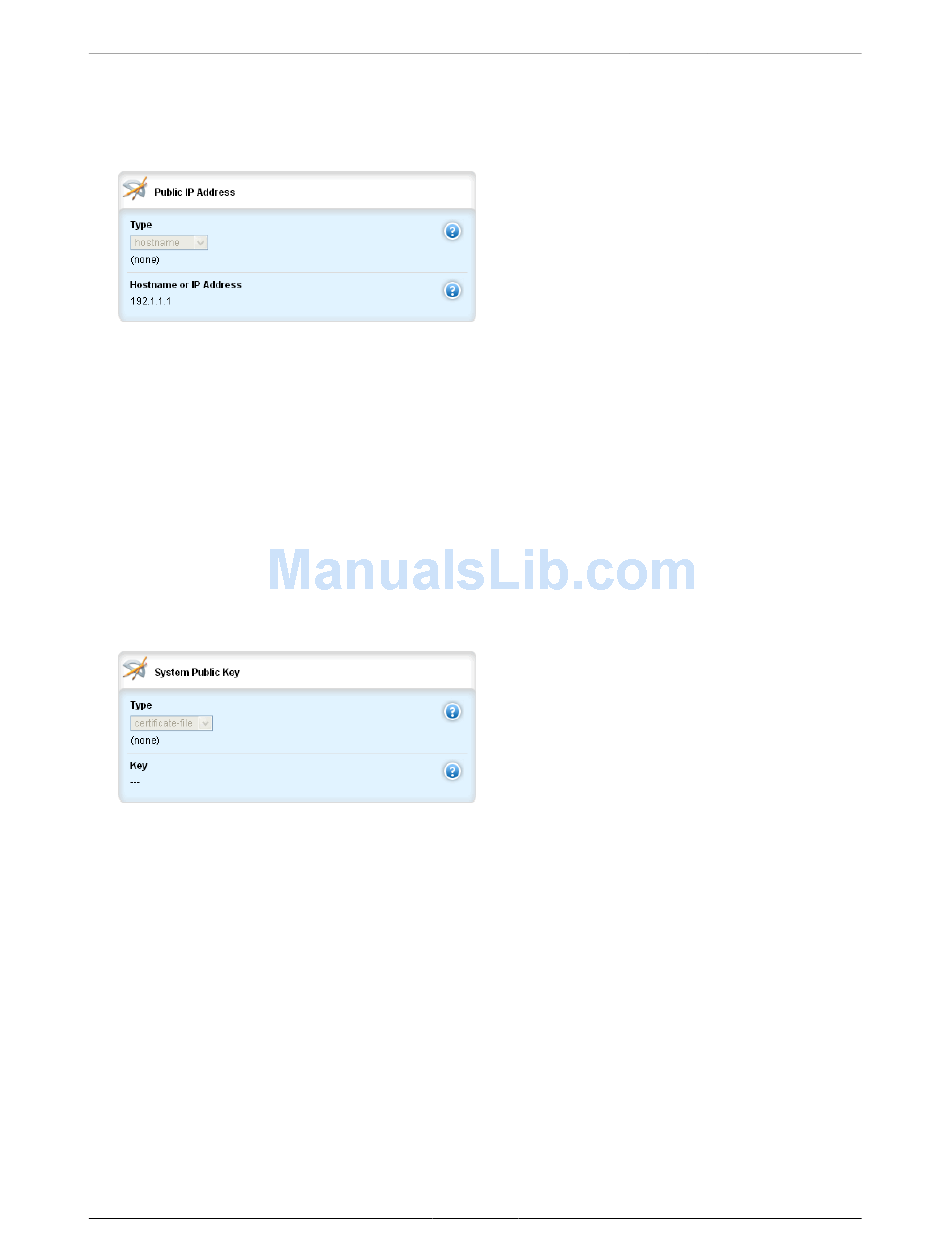

Figure 30.15. Public IP Address form
If data is configured, the path to the Public IP Address form will be tunnel/ipsec/connection/{line module}/
left. The System Public Key, System Identifier and Nexthop to Other System forms appear on the same
screen as the Public IP Address form.
The public-ip is the system identifier.
Type
Synopsis: string - one of the following keywords { hostname, address, any, default-route, none }
Default: none
Type.
Hostname or IP Address
Synopsis: A string conforming to: "[^ ]+"
Hostname or IP address.
Figure 30.16. System Public Key form
It allows you to select the system's public key.
Type
Synopsis: string - one of the following keywords { certificate-file, certificate-any, rsasig, none }
Default: none
Type.
Key
Synopsis: A string conforming to: "[^ ]+"
Extra information.
ROX™ v2.2 User Guide 312 RuggedBackbone™ RX5000
