9. SNMP

9.2.3. Map the Community to a Security Group

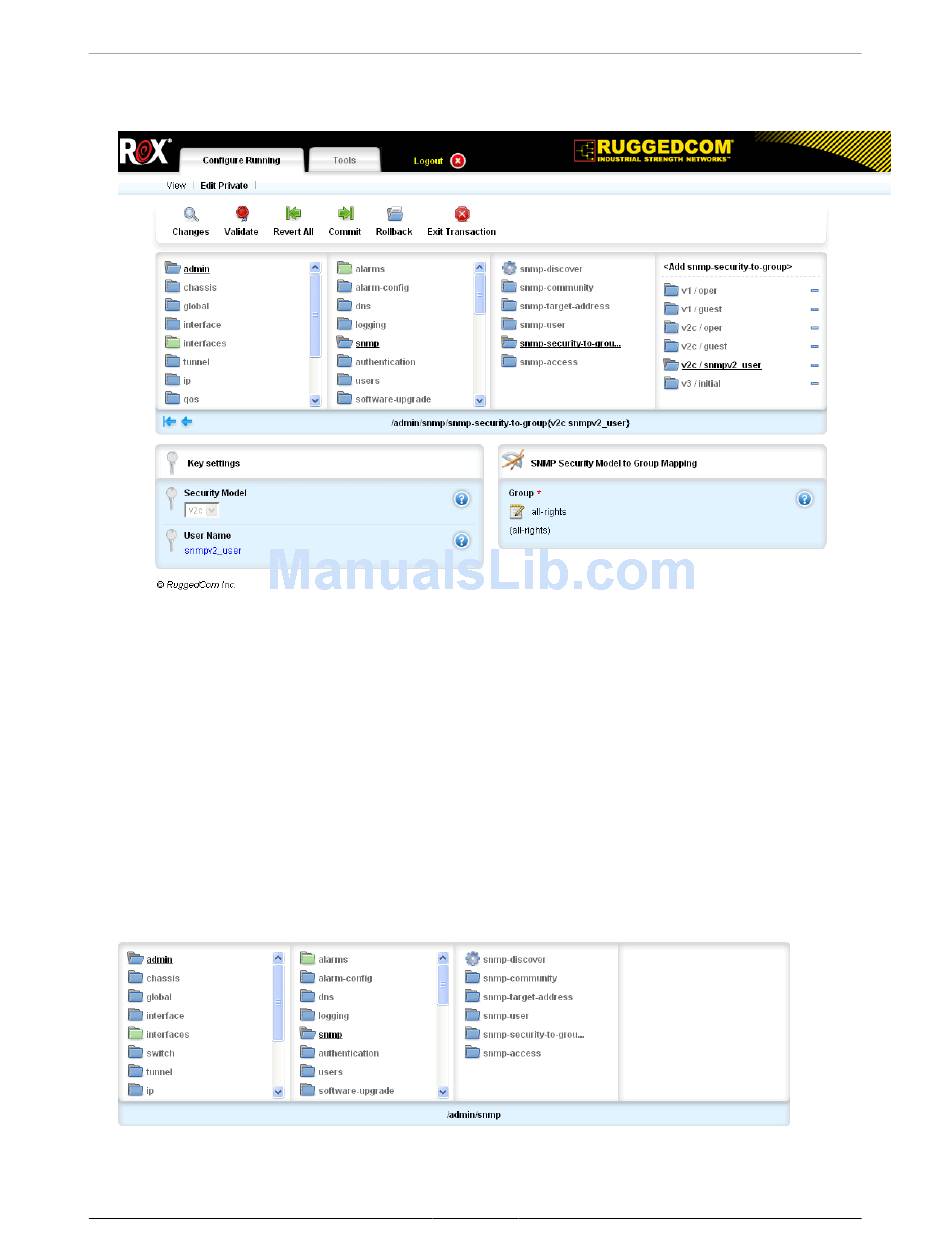

Figure 9.3. Mapping the Community to a Security Group
Procedure 9.3. Mapping the Community to a Security Group
1. Navigate to admin/snmp/security-to-group.
2. Click on <Add snmp-security-to-group>. The Key settings form appears.
3. In the Security Model field, select v2c.
4. In the User Name field, select snmpv2_user and click Add. The SNMP Security Model to Group
Mapping form appears.
5. all-rights is the default in the Group field. Leave it as the default.
6. Click Commit.
7. Click Exit Transaction.

9.3. SNMP menu

Figure 9.4. SNMP menu
ROX™ v2.2 User Guide 102 RuggedBackbone™ RX5000
