25. Spanning Tree

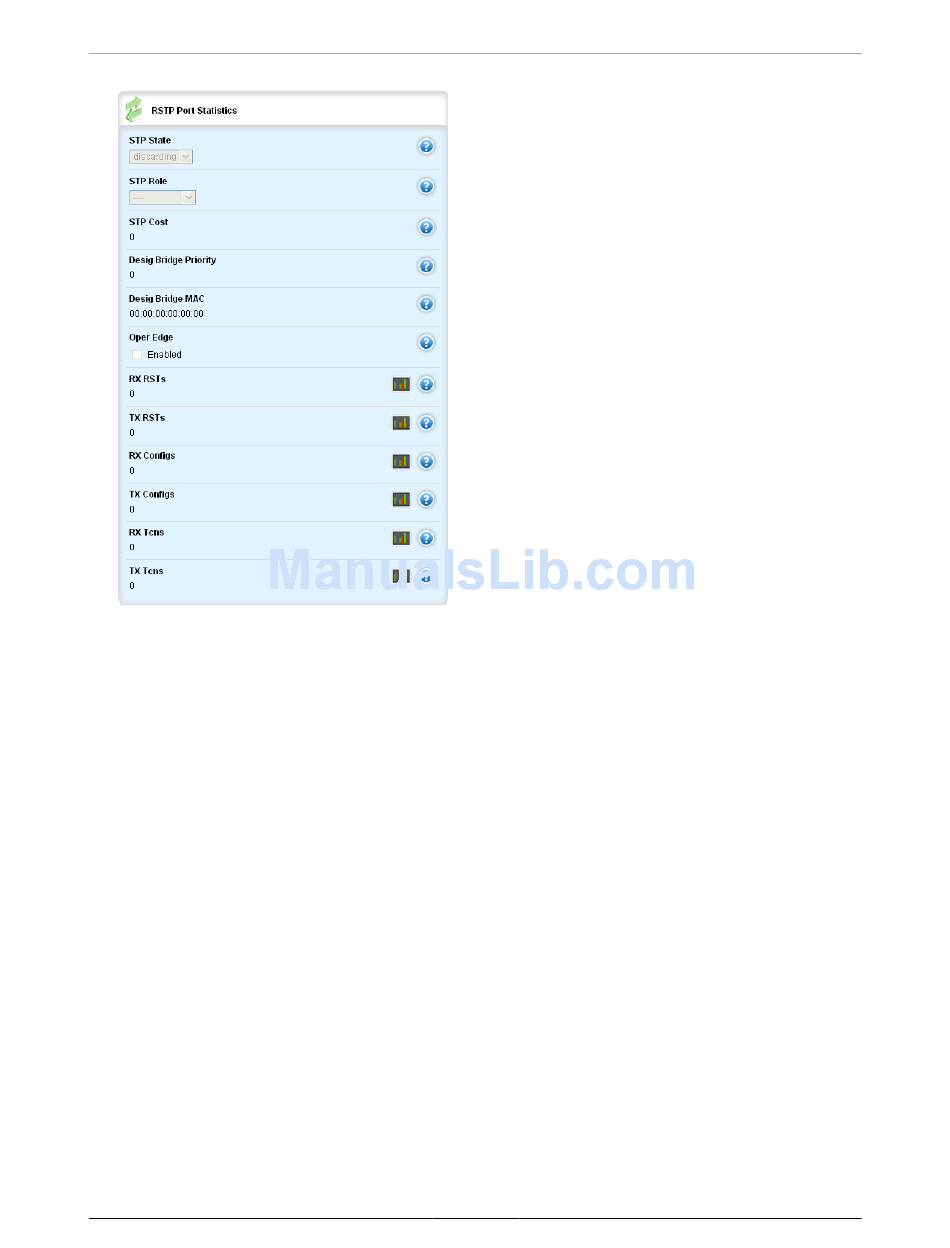

Figure 25.20. RSTP Port Statistics form
To display these forms, navigate to switch/spanning-tree/port-rstp-stats/{line module}.
Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - the keyword { trnk }
The slot of the module that contains this port.
Port
Synopsis: integer
The port number as seen on the front plate silkscreen of the module.
STP State
Synopsis: string - one of the following keywords { discarding, linkDown, forwarding, learning,
listening, blocking, disabled }
Describes the status of this interface in the spanning tree:
• Disabled : STP is disabled on this port.
• Link Down : STP is enabled on this port but the link is down.
• Discarding : The link is not used in the STP topology but is standing by.
• Learning : The port is learning MAC addresses in order to prevent flooding when it begins
forwarding traffic.
• Forwarding : The port is forwarding traffic.
STP Role
Synopsis: string - one of the following keywords { ----, master, backup, alternate, designated,
root }
