9. SNMP
The SNMP menu is located at admin/snmp. The SNMP Sessions form and the SNMP USM Statistics
form appear on the same screen as the SNMP menu.

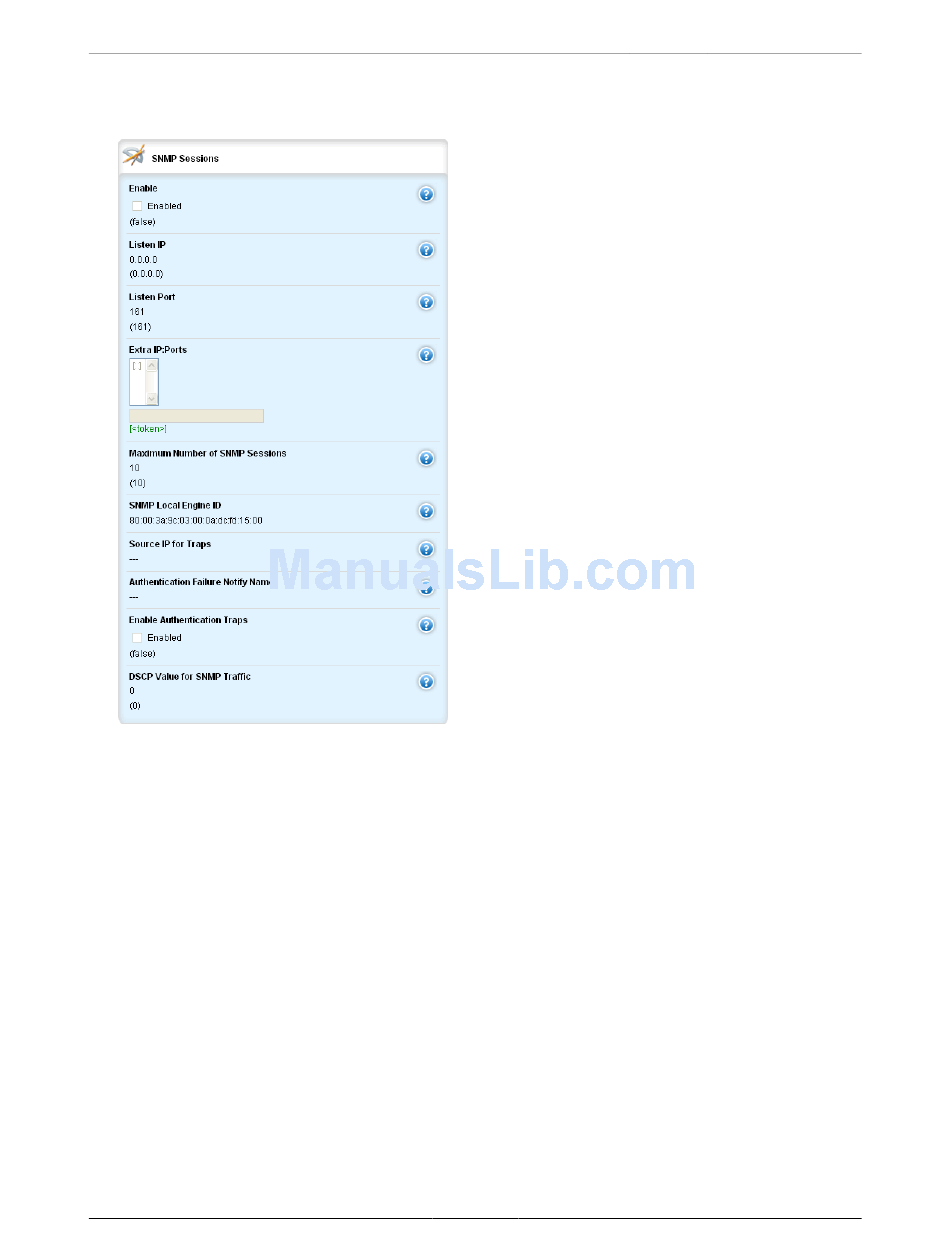

Figure 9.5. SNMP Sessions form
Enable
Synopsis: boolean
Default: false
Provides the ability to configure snmp features on the device.
Listen IP
Synopsis: IPv4 address in dotted-decimal notation
Synopsis: IPv6 address in colon-separated hexadecimal notation
Default: 0.0.0.0
The IP Address the SNMP agent will listen on for SNMP requests (default 0.0.0.0).
Listen Port
Synopsis: unsigned short integer
Default: 161
The port the SNMP agent will listen on for SNMP requests (default 161).
Extra IP:Ports
Synopsis: A string
Synopsis: "extra-ip-ports" occurs in an array.
