23. Classes Of Service

23.2.3. DSCP to CoS Mapping

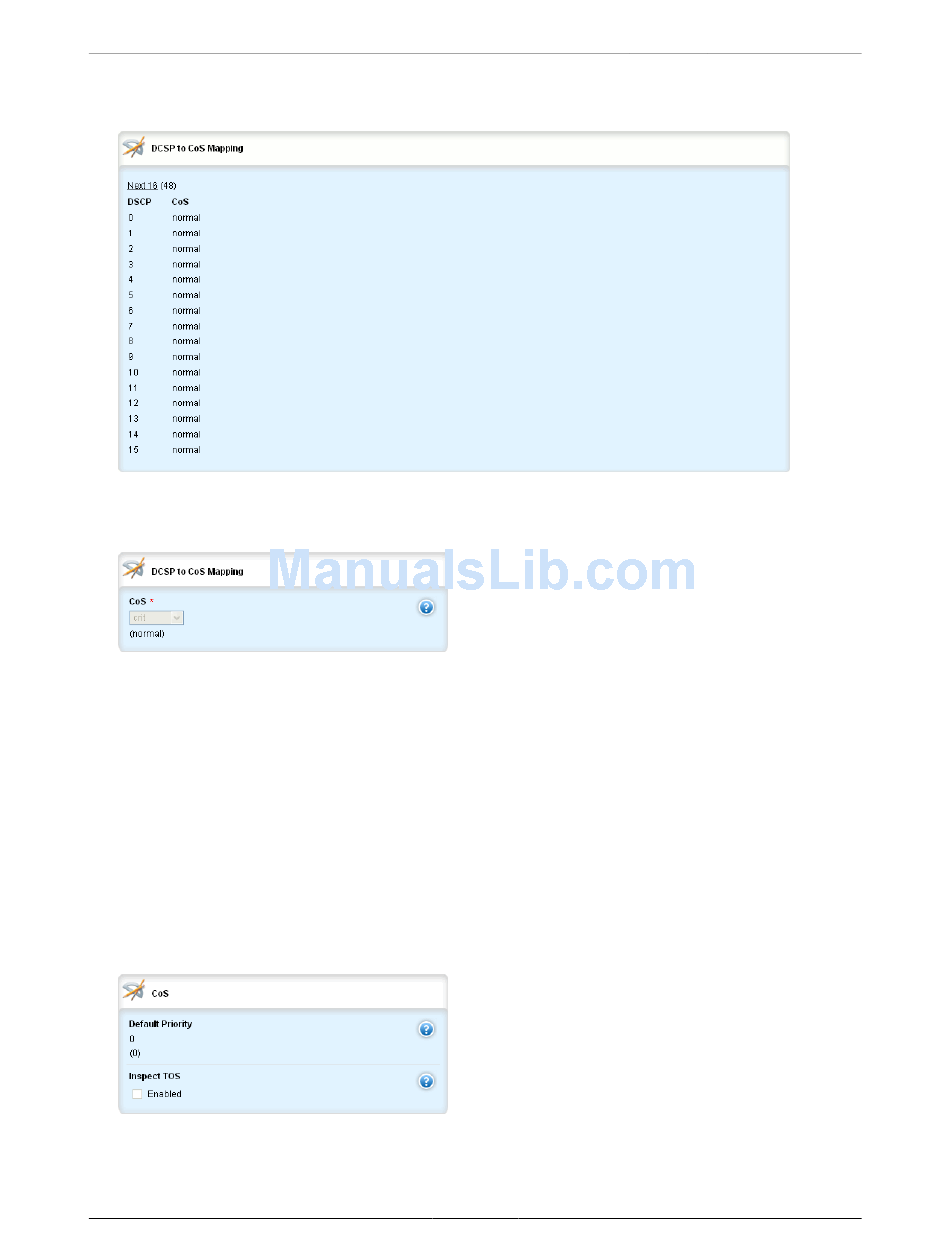

Figure 23.6. TOS DSCP to CoS Mapping table
The path to the TOS DSCP table is switch/class-of-service/dcsp-to-cos-mapping.
Figure 23.7. TOS DSCP to CoS Mapping form
The path to the TOS DSCP to CoS Mapping forms is switch/class-of-service/dscp-to-cos/{number}.
TOS DSCP to CoS Mapping maps each Differentiated Services Code Point (DSCP) in the Type-Of-
Service (TOS) field in the headers of the received IP packets to the Class of Service switch.
DSCP
Synopsis: unsigned byte integer
Differentiated Services Code Point (DSCP): a value of the 6 bit DiffServ field in the Type-Of-Service
(TOS) field of the IP header.
CoS
Synopsis: string - one of the following keywords { crit, high, medium, normal }
Default: normal
The Class of Service assigned to received frames with the specified DSCP.
Figure 23.8. CoS form
