- Page 1 Preface Introduction Installing Device RUGGEDCOM RSG2300 Device Management Communication Ports Technical Specifications Installation Guide Certification 07/2018 RC1046-EN-12...
- Page 2 We reserve the right to make technical improvements without notice. Registered Trademarks RUGGEDCOM™ and ROS™ are trademarks of Siemens Canada Ltd. Other designations in this manual might be trademarks whose use by third parties for their own purposes would infringe the rights of the owner.
- Page 3 RUGGEDCOM RSG2300 Installation Guide Contacting Siemens Address Telephone E-mail Siemens Canada Ltd Toll-free: 1 888 264 0006 ruggedcom.info.i-ia@siemens.com Industry Sector Tel: +1 905 856 5288 300 Applewood Crescent Fax: +1 905 856 1995 Concord, Ontario https://www.siemens.com/ruggedcom Canada, L4K 5C7...
- Page 4 RUGGEDCOM RSG2300 Installation Guide...
-
Page 5: Table Of Contents
RUGGEDCOM RSG2300 Installation Guide Table of Contents Table of Contents Preface ......................Alerts ..............................vii Related Documents ..........................viii Accessing Documentation ........................viii Training ............................viii Customer Support ..........................viii Chapter 1 Introduction ..................... 1.1 Feature Highlights ........................1 1.2 Description ........................... 2 1.3 Required Tools and Materials ...................... - Page 6 RUGGEDCOM RSG2300 Table of Contents Installation Guide Chapter 4 Communication Ports ..................4.1 Copper Ethernet Ports ......................... 22 4.2 Fiber Optic Ethernet Ports ......................23 4.3 SFP Transceivers ......................... 24 4.4 GBIC Optic Ethernet Ports ......................25 4.4.1 Installing a GBIC Optical Port .................... 25 4.4.2 Removing a GBIC Optical Port ...................
-
Page 7: Preface
Installation Guide Preface Preface This guide describes the RUGGEDCOM RSG2300. It describes the major features of the device, installation, commissioning and important technical specifications. It is intended for use by network technical support personnel who are responsible for the installation, commissioning and maintenance of the device. -
Page 8: Related Documents
• RUGGEDCOM ROS User Guide [https://support.industry.siemens.com/cs/ww/en/view/109737236] Accessing Documentation The latest user documentation for RUGGEDCOM RSG2300 is available online at https://www.siemens.com/ruggedcom. To request or inquire about a user document, contact Siemens Customer Support. Training Siemens offers a wide range of educational services ranging from in-house training of standard courses on networking, Ethernet switches and routers, to on-site customized courses tailored to the customer's needs, experience and application. -
Page 9: Customer Support
RUGGEDCOM RSG2300 Installation Guide Preface • Contact a local Siemens representative from Sales, Technical Support, Training, etc. • Ask questions or share knowledge with fellow Siemens customers and the support community Customer Support... - Page 10 RUGGEDCOM RSG2300 Preface Installation Guide Customer Support...
-
Page 11: Introduction

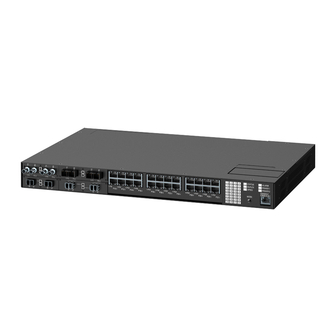

(SFP, GBIC, LC, SC) without loss of port density. The RUGGEDCOM RSG2300 is packaged in a rugged galvanized steel enclosure with industrial grade DIN, panel, or 48 cm (19 in) rack-mount mounting options. -
Page 12: Description
Section 1.2 Description The RUGGEDCOM RSG2300 features various ports, controls and indicator LEDs on the display panel for connecting, configuring and troubleshooting the device. The display panel can be located on the rear, front or top of the device, depending on the mounting configuration. -
Page 13: Required Tools And Materials
Section 3.1, “Connecting to the Device”. Section 1.3 Required Tools and Materials The following tools and materials are required to install the RUGGEDCOM RSG2300: Tools/Materials Purpose AC power cord (16 AWG) For connecting power to the device. CAT-5 Ethernet cables For connecting the device to the network. -
Page 14: Decommissioning And Disposal
Section 1.5.1 Protection On Twisted-Pair Data Ports All copper Ethernet ports on RUGGEDCOM products include transient suppression circuitry to protect against damage from electrical transients and conform with IEC 61850-3 and IEEE 1613 Class 1 standards. This means that during a transient electrical event, communications errors or interruptions may occur, but recovery is automatic. -
Page 15: Gigabit Ethernet 1000Base-Tx Cabling Recommendations
RUGGEDCOM RSG2300 Chapter 1 Installation Guide Introduction Section 1.5.2 Gigabit Ethernet 1000Base-TX Cabling Recommendations The IEEE 802.3ab Gigabit Ethernet standard defines 1000 Mbit/s Ethernet communications over distances of up to 100 m (328 ft) using all 4 pairs in category 5 (or higher) balanced, unshielded twisted-pair cabling. For wiring... - Page 16 Chapter 1 RUGGEDCOM RSG2300 Introduction Installation Guide Supported Fiber Optic Cables...
-
Page 17: Installing Device
RUGGEDCOM RSG2300 Chapter 2 Installation Guide Installing Device Installing Device The following sections describe how to install the device, including mounting the device, installing/removing modules, connecting power, and connecting the device to the network. DANGER! Electrocution hazard – risk of serious personal injury and/or damage to equipment. Before performing any maintenance tasks, make sure all power to the device has been disconnected and wait approximately two minutes for any remaining energy to dissipate. -
Page 18: Unpacking The Device
Mounting the Device The RUGGEDCOM RSG2300 is designed for maximum mounting and display flexibility. It can be equipped with connectors that allow it to be installed in a 48 cm (19 in) rack, 35 mm (1.4 in) DIN rail, or directly on a panel. -
Page 19: Mounting The Device To A Rack
Section 2.3.1 Mounting the Device to a Rack The RUGGEDCOM RSG2300 can be secured to a standard 48 cm (19 in) rack using separately purchased rack mount adapters. The adapters can be installed at the front or rear of the chassis. -
Page 20: Mounting The Device On A Din Rail
Mounting the Device on a DIN Rail For DIN rail installations, the RUGGEDCOM RSG2300 can be equipped with panel/DIN rail adapters pre-installed on each side of the chassis. The adapters allow the device to be slid onto a standard 35 mm (1.4 in) DIN rail. -
Page 21: Mounting The Device To A Panel
Section 2.3.3 Mounting the Device to a Panel For panel installations, the RUGGEDCOM RSG2300 can be equipped with panelDIN rail adapters pre-installed on each side of the chassis. The adapters allow the device to be attached to a panel using screws. -
Page 22: Connecting Power
The RUGGEDCOM RSG2300 supports a single or dual redundant AC and/or DC power supplies. The RUGGEDCOM RSG2300 can be equipped with either a screw-type or pluggable terminal block, which provides power to both power supplies. The screw-type terminal block is installed using Phillips screws and compression plates, allowing either bare wire connections or crimped terminal lugs. -
Page 23: Connecting Ac Or Dc Power
RUGGEDCOM RSG2300 Chapter 2 Installation Guide Installing Device • Section 2.5.2, “Wiring Examples” Section 2.5.1 Connecting AC or DC Power To connect a single high AC, high DC or low DC power supply to the device, do the following: CAUTION! Electrical hazard – risk of damage to equipment. Before testing the dielectric strength (HIPOT) in the field, remove the metal jumper. - Page 24 Chapter 2 RUGGEDCOM RSG2300 Installing Device Installation Guide Figure 6: Terminal Block Wiring 1. Screw-Type Terminal Block 2. Pluggable Terminal Block 3. Jumper 4. Positive/Live (+/L) Terminal 5. Negative/Neutral (-/N) Terminal (-/N) 6. Surge Ground Terminal 7. Chassis Ground Terminal Connect the negative wire from the power source to the negative/neutral (-/N) terminal on the terminal block.
-
Page 25: Wiring Examples
RUGGEDCOM RSG2300 Chapter 2 Installation Guide Installing Device Section 2.5.2 Wiring Examples The following illustrate how to connect power to single and dual power supplies. Figure 8: Single AC Power Supply Figure 9: Single DC Power Supply Wiring Examples... - Page 26 Chapter 2 RUGGEDCOM RSG2300 Installing Device Installation Guide Figure 10: Dual AC Power Supply Figure 11: Dual DC Power Supply Wiring Examples...
- Page 27 RUGGEDCOM RSG2300 Chapter 2 Installation Guide Installing Device Figure 12: Dual AC/DC Power Supply Wiring Examples...
- Page 28 Chapter 2 RUGGEDCOM RSG2300 Installing Device Installation Guide Wiring Examples...
-
Page 29: Device Management
Connecting to the Device The following describes the various methods for accessing the ROS console and Web interfaces on the device. For more detailed instructions, refer to the RUGGEDCOM ROS User Guide for the RUGGEDCOM RSG2300. RS232 Console Port Connect a workstation directly to the RS232 console port to access the boot-time control and ROS interfaces. The console port provides access to ROS's console and Web interfaces. -
Page 30: Configuring The Device
Once the device is installed and connected to the network, it must be configured. All configuration management is done via the RUGGEDCOM ROS interface. For more information about configuring the device, refer to the RUGGEDCOM ROS User Guide associated with the installed software release. -
Page 31: Communication Ports
Chapter 4 Installation Guide Communication Ports Communication Ports The RUGGEDCOM RSG2300 can be equipped with various types of communication ports to enhance its abilities and performance. Module Assignment Figure 14: Module Assignment Each type of module has a specific location in the RUGGEDCOM RSG2300 chassis: •... -
Page 32: Copper Ethernet Ports
Section 4.1 Copper Ethernet Ports The RUGGEDCOM RSG2300 supports several 10/100/1000Base-TX Ethernet ports that allow connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP) cables with either RJ45 male connectors. The RJ45 connectors are directly connected to the chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP) cables. -
Page 33: Fiber Optic Ethernet Ports
RUGGEDCOM RSG2300 Chapter 4 Installation Guide Communication Ports Name Description 10/100Base-TX 1000Base-TX BI_DB+ Transmit Data+ or Bi-Directional Pair B+ Reserved (Do BI_DC+ Transmit Data+ Not Connect) or Bi-Directional Pair C+ Reserved (Do BI_DC- Receive Not Connect) Data- or Bi- Directional Pair C-... -
Page 34: Sfp Transceivers
The RUGGEDCOM RSG2300 features two Small Form-Factor Pluggable (SFP) transceiver sockets, which are compatible with a wide array of SFP transceivers available from Siemens. The following SFP transceivers are compatible with the RUGGEDCOM RSG2300. For more information, including RUGGEDCOM SFP Transceiver Catalog installation/removal instructions and ordering information, refer to the [https://support.industry.siemens.com/cs/ww/en/view/109482309]. -
Page 35: Gbic Optic Ethernet Ports
To install a GBIC optical port, do the following: CAUTION! Electrical hazard – risk of damage to equipment. Use only components certified by Siemens with RUGGEDCOM products. Damage to the module and device may occur if compatibility and reliability have not been properly assessed. CAUTION! Electrical hazard –... -
Page 36: Removing A Gbic Optical Port
Installation Guide IMPORTANT! Only install GBIC optical ports that are compatible with the RUGGEDCOM RSG2300. Make sure all potential electrostatic build-up has been properly discharged to prevent electrostatic discharges (ESD). This can be accomplished by wearing an ESD-preventive wrist strap connected to either the chassis ground connector or a bare metal surface on the router/switch. - Page 37 RUGGEDCOM RSG2300 Chapter 4 Installation Guide Communication Ports CAUTION! Electrical hazard – risk of damage to equipment. Make sure all electrostatic energy is dissipated before performing installing or removing components from the device. An electrostatic discharge (ESD) can cause serious damage to the component once it is outside the chassis.
- Page 38 Chapter 4 RUGGEDCOM RSG2300 Communication Ports Installation Guide Removing a GBIC Optical Port...
-
Page 39: Technical Specifications
Section 5.8, “Dimension Drawings” Section 5.1 Power Supply Specifications The RUGGEDCOM RSG2300 can be equipped with the following power supplies: CAUTION! Electrical hazard – risk of damage to the device. Disconnect the device from the power supply if power input is above or below the specified input range. -
Page 40: Failsafe Relay Specifications
(formerly 802.1s) Section 5.4 Copper Ethernet Port Specifications The following details the specifications for copper Ethernet ports that can be ordered with the RUGGEDCOM RSG2300. NOTE • Maximum segment length is greatly dependent on factors such as fiber quality, and the number of patches and splices. -
Page 41: Fiber Optic Ethernet Port Specifications
Typical distance. Dependent on the number of connectors and splices. RMS 1 minute. Section 5.5 Fiber Optic Ethernet Port Specifications The following details the specifications for fiber Ethernet ports that can be ordered with the RUGGEDCOM RSG2300. 10FL Ethernet Optical Specifications Tx (dBm) - Page 42 Chapter 5 RUGGEDCOM RSG2300 Technical Specifications Installation Guide Tx (dBm) Power Connector Cable Distance Mode Tx λ (nm) Sensitivity Saturation Budget Type Type (µm) (km) Minimum Maximum (dBm) (dBm) (dB) 62.5/125 1300 9/125 1310 9/125 1310 9/125 1310 9/125 1310...
-
Page 43: Operating Environment
Operating temperature range of -25 to 85 °C (-13 to 185 °F). Section 5.6 Operating Environment The RUGGEDCOM RSG2300 is rated to operate under the following environmental conditions. Ambient Operating -40 to 85°C (-40 to 185 °F) Temperature Ambient Storage Temperature -40 to 85°C (-40 to 185 °F) - Page 44 Chapter 5 RUGGEDCOM RSG2300 Technical Specifications Installation Guide NOTE Dimensional tolerances are in accordance with ISO 2768-mK, unless otherwise stated. 438.15 Figure 24: Overall Dimensions Dimension Drawings...
- Page 45 RUGGEDCOM RSG2300 Chapter 5 Installation Guide Technical Specifications 32.64 21.08 11.68 479.29 461.01 4.57 Figure 25: Rack Mount Dimensions Dimension Drawings...
- Page 46 Chapter 5 RUGGEDCOM RSG2300 Technical Specifications Installation Guide 486.4 476.3 10.4 11.7 Figure 26: Panel and DIN Rail Mount Dimensions Dimension Drawings...
-
Page 47: Certification
RUGGEDCOM RSG2300 Chapter 6 Installation Guide Certification Certification The RUGGEDCOM RSG2300 device has been thoroughly tested to guarantee its conformance with recognized standards and has received approval from recognized regulatory agencies. CONTENTS • Section 6.1, “Approvals” • Section 6.2, “EMC and Environmental Type Tests”... -
Page 48: European Union (Eu)
Chapter 6 RUGGEDCOM RSG2300 Certification Installation Guide Section 6.1.2 European Union (EU) This device is declared by Siemens Canada Ltd to comply with essential requirements and other relevant provisions of the following EU directives: • EN 60950-1 Information Technology Equipment – Safety – Part 1: General Requirements •... -
Page 49: Ised
RUGGEDCOM RSG2300 Chapter 6 Installation Guide Certification Section 6.1.5 ISED This device is declared by Siemens Canada Ltd to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • CAN ICES-3 (A)/NMB-3 (A) Section 6.1.6 This device was designed and manufactured using a certified ISO (International Organization for Standardization) quality program that adheres to the following standard: •... -
Page 50: Other Approvals
• IEC 61850-3 Communication Networks and Systems in Substations – Part 3: General Requirements Section 6.2 EMC and Environmental Type Tests The RUGGEDCOM RSG2300 has passed the following Electromagnetic Compatibility (EMC) and environmental tests. EMC Type Tests per IEC 61850-3 Test... - Page 51 EMC Immunity Type Tests per IEEE 1613 NOTE The RUGGEDCOM RSG2300 meets Class 2 requirements for an all-fiber configuration and Class 1 requirements for copper ports. Class 1 allows for temporary communication loss, while Class 2 requires error-free and interrupted communications.
- Page 52 Chapter 6 RUGGEDCOM RSG2300 Certification Installation Guide Description Test Levels Fast Transient Signal Ports 4 kV @ 2.5 kHz DC Power Ports 4 kV AC Power Ports 4 kV Earth Ground Ports 4 kV Oscillatory Signal Ports 2.5 kV Common Mode @ 1 MHz DC Power Ports 2.5 kV Common...
