6.9.4. Creating an EDID - Easy EDID Creator
Since the above mentioned Advanced EDID Editor needs more complex knowledge about EDID, Lightware
introduced a wizard-like interface for fast and easy EDID creation. With Easy EDID Creator it is possible to
create custom EDIDs in four simple steps. By clicking on the Create button below the Source panel, Easy EDID
Creator is opened in a new window. For more details about the EDID Editor please visit our website
(www.lightware.com) and download the EDID Editor user's manual.
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
6.10. Control Menu
6.10.1. Ethernet
Front Ethernet
The settings and status information of the front panel Ethernet port are available in the tab.
Available Settings:
Port enabling / disabling;
▪
▪ Mode: Auto negotiation / 10Mb half-duplex / 10Mb full-duplex / 100Mb half-duplex / 100Mb full-
duplex;
Reloading factory default settings.
▪
Link
The settings and status information of the optical Ethernet link are available in the tab.
Available Settings:
▪ Port enabling / disabling;
Reloading factory default settings.
▪

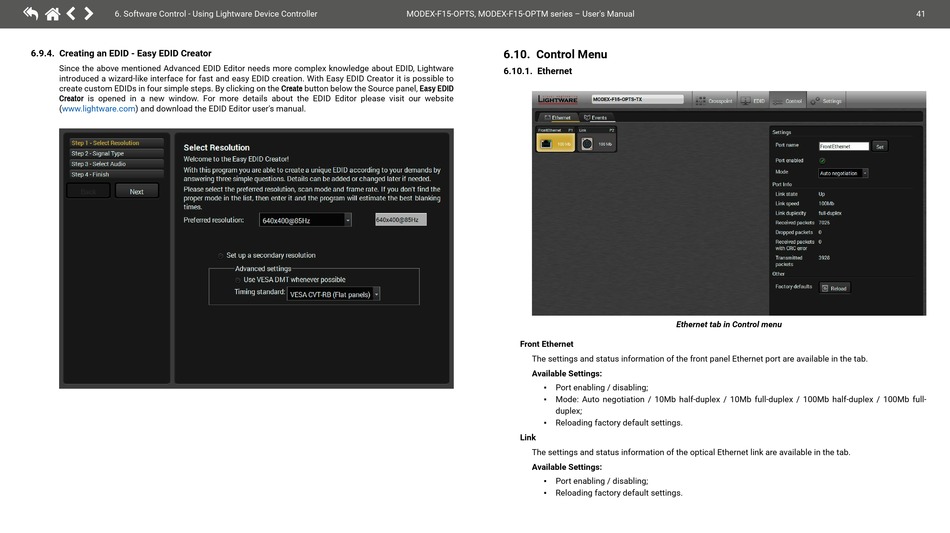

Ethernet tab in Control menu
